MS111RG-SWJDS (1979)

Toyota Crown

Production Sep 1979 - Aug 1980
Engine 4M
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

Click highlighted areas on diagram

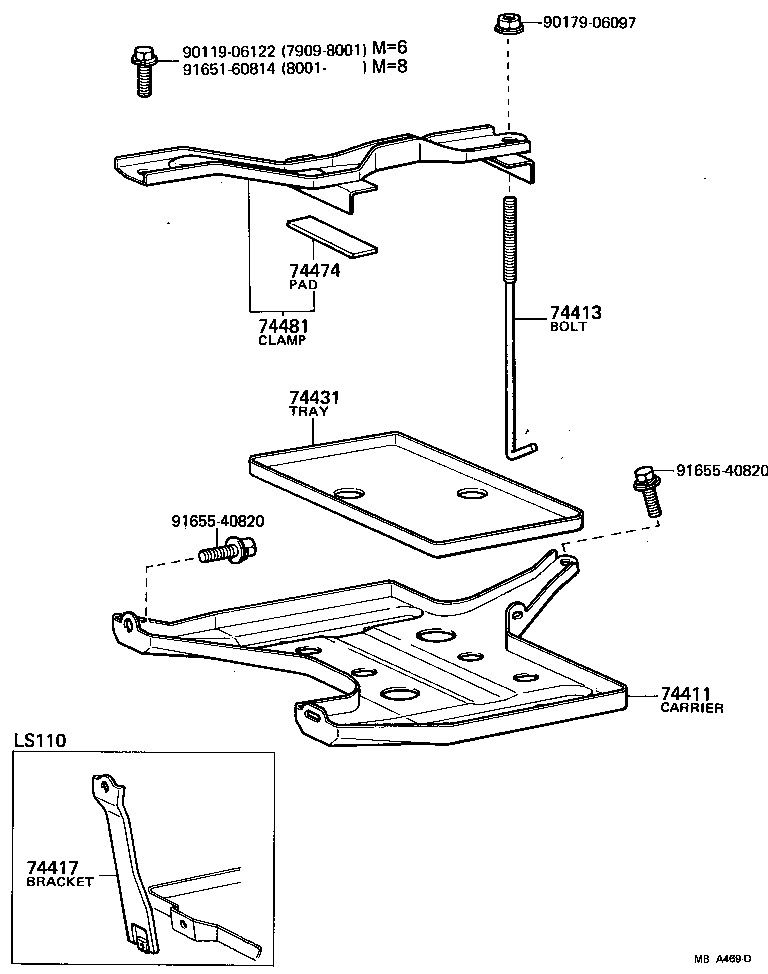

diagram 74411 74413 74417 74431 74474 74481 9011906122 9017906097 9165160814 9165540820 9165540820
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-30210

MS11#..GEN;RS110..RHD..DLX;RS110..(BTP,SAL)..GEN

NS40ZAL,N40L,N60L-MF

 1
74411-30220

MS111,RS110

N50ZL-MF,N70ZL-MF

 1
74413 - BOLT, BATTERY CLAMP
74451-30050

LS110,MS11#,RS110

 1
74431 - TRAY, BATTERY
74431-14010

RS110..(BTP,DLX)..GEN;MS11#..(BTP,DLX,SAL)..GEN..CBR

NS40ZAL

 1
74431-14030

MS111,RS110

N50ZL-MF

 1
74431-14020

MS11#..GEN;RS110..(BTP,DLX)..GEN

N40L,N60L

 1
74431-14040

RS110..BTP,DLX;MS11#..GEN..CBR;MS112..SAL..EUR;MS112..(BTP,DLX,ROY)..(EUR,GEN)..EFI

N70ZL-MF

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-30130

MS11#,RS110..GEN

NS40ZAL,N60L-MF

 1
74404-30140

MS111,RS110

N50ZL-MF,N70ZL-MF

 1
74404-30170

MS111,RS110..(BTP,DLX,SAL)..GEN

N40L

 1
Common parts
90119-06122
90179-06097
91651-60814
91655-40820
