MS111RG-SWJDS (1979)

Toyota Crown

Production Sep 1979 - Aug 1980
Engine 4M
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )L

Click highlighted areas on diagram

diagram 11301 11301B 11301C 11302 11302E 11305 11305A 11305B 11312 11328 11329 11354 11355 11355A 11381 11381A 11383 11384 11391 11492A 12281 12282 9010906017 9010906026 9021008019 9021008019 9048007001 9095001312 9161140814 9161140825 9161140828 9161160830 9161160840 9161161020 9454100600 9671001015 9671119015
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-41020

4M,5M#..MS11#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-41010

4M,5M#..MS11#

 1
11355 - PLATE, REAR END
11355-41010

4M,5M#..MS11#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-41011

4M,5M#..MS11#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80001

4M,5M#..MS11#

HTC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-41010

4M,5M#..MS11#

 1
12281 - HANGER, ENGINE, NO.1
12281-45020

4M,5M#..MS11#

 1
12282 - HANGER, ENGINE, NO.2
12281-45030

4M,5M#..MS11#

 1
Common parts
90109-06017
90109-06026
90210-08019
90480-07001
90950-01312
91611-40814
91611-40825
91611-40828
91611-60830
91611-60840
91611-61020
94541-00600
96710-01015
96711-19015

(7909- )4M,5M#

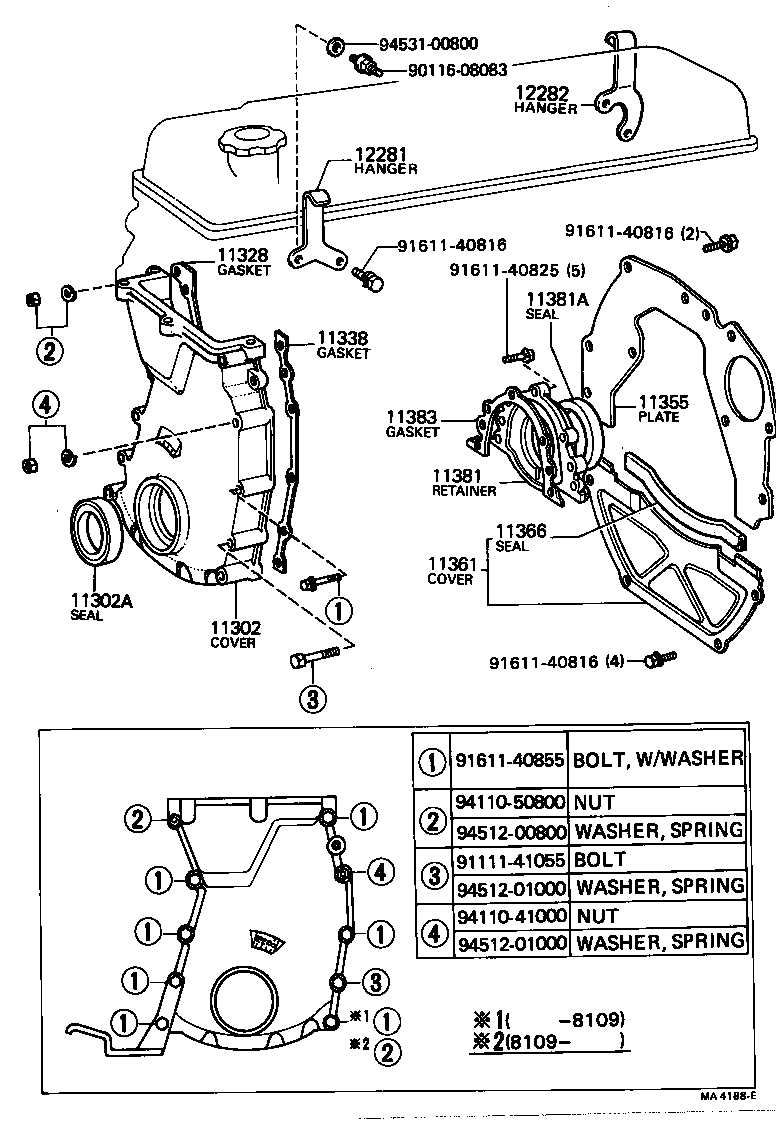

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11361 11366 11381 11381A 11383 12281 12282 9011608083 9111141055 9161140816 9161140816 9161140816 9161140825 9161140855 9411041000 9411050800 9451200800 9451201000 9451201000 9453100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-41020

4M,5M#..MS11#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

4M,5M#..MS11#

TC3 45 68 12

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-41010

4M,5M#..MS11#

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-41010

4M,5M#..MS11#

 1
11355 - PLATE, REAR END
11355-41010

4M,5M#..MS11#

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-45010

4M,5M#..MS11#

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
31131-30010

4M,5M#..MS11#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-41011

4M,5M#..MS11#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80001

4M,5M#..MS11#

HTC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-41010

4M,5M#..MS11#

 1
12281 - HANGER, ENGINE, NO.1
12281-45020

4M,5M#..MS11#

 1
12282 - HANGER, ENGINE, NO.2
12281-45030

4M,5M#..MS11#

 1
Common parts
90116-08083
91111-41055
91611-40816
91611-40825
91611-40855
94110-41000
94110-50800
94512-00800
94512-01000
94531-00800
