MS111RG-SWHDS (1979)
Toyota Crown
Production
Sep 1979
-
Aug 1980
Engine
4M
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7909-8008)MS111..ATM

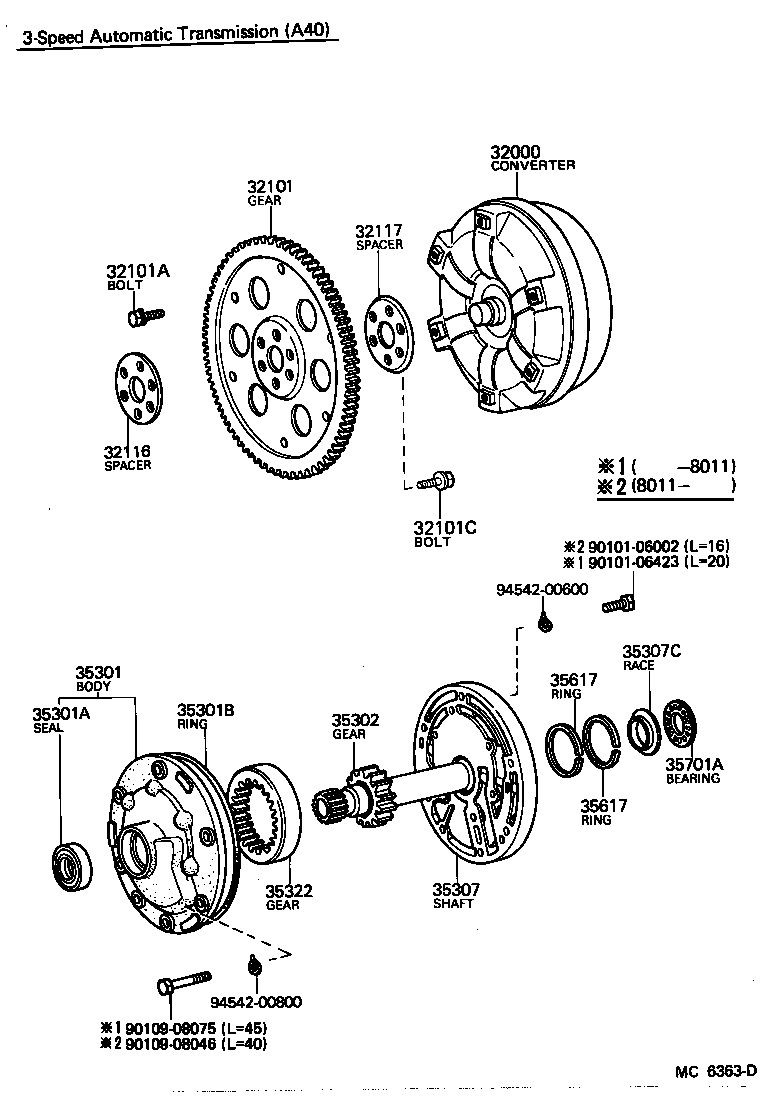

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-22030 |
MS111..ATM |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-30040 |
MS11#..ATM |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 91611-60812 |
LS110,MS11#..ATM *8-1.25PX12-7,L=12,WHITE |
6 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90109-10037 |
MS11#..ATM *10-1.25PX18-12 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-30011 |
MS11#..ATM |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-30011 |
MS11#..ATM |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-22012 |
MS111..ATM |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38129 |
LS110,MS11#..ATM |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99010 |
LS110,MS11#..ATM |
1 | ||
| 35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE | ||||
| 35321-22010 |
LS110,MS11#..ATM |
1 | ||
| 35307 - SHAFT SUB-ASSY, STATOR | ||||
| 35370-22010 |
MS111..ATM |
1 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-22010 |
LS110,MS11#..ATM T=4.3 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-22010 |
LS110,MS11#..ATM T=15.286-15.235 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-22010 |
MS111..ATM |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-22010 |
MS111..ATM |
2 | ||
| 35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT) | ||||
| 90374-23012 |
LS110,MS11#..ATM |
1 | ||
| Common parts | ||||
| 90101-06002 | ||||
| 90101-06423 | ||||
| 90109-08046 | ||||
| 90109-08075 | ||||
| 94542-00600 | ||||
| 94542-00800 | ||||
