MS111R-SENQS (1979)

Toyota Crown

Production Sep 1979 - Aug 1980
Engine 4M
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )SED

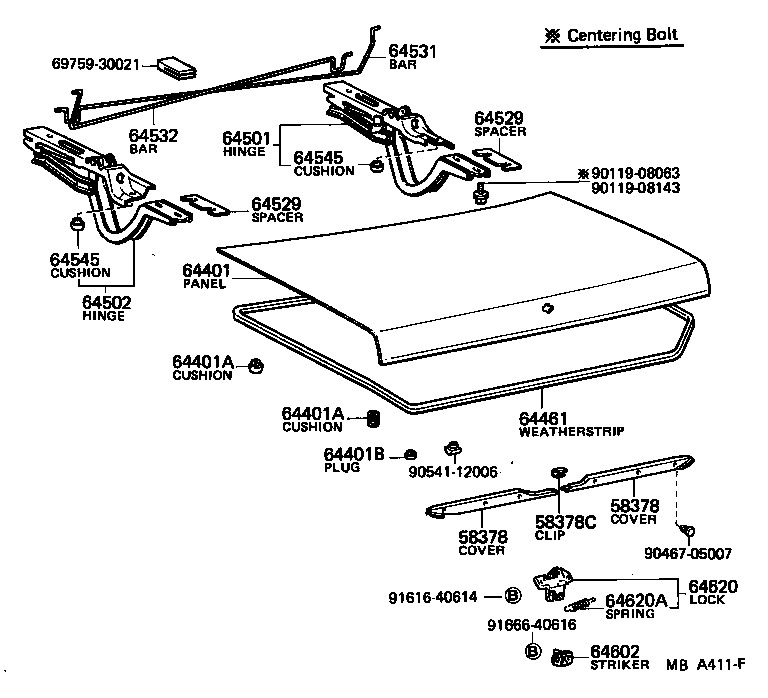

Click highlighted areas on diagram

diagram 58378 58378 58378C 64401 64401A 64401A 64401B 64461 64501 64502 64529 64529 64531 64532 64545 64545 64602 64620 64620A 6975930021 9011908063 9011908143 9046705007 9054112006 9161640614 9166640616
Part # Description Qty Price
58378 - COVER, LOWER BACK TRIM, RETAINER
58378-30040

LS110,MS11#,RS110..SED

RH

 1
58379-30020

LS110,MS11#,RS110..SED

LH

 1
58378 - COVER, LOWER BACK TRIM, RETAINER
58378-30040

LS110,MS11#,RS110..SED

RH

 1
58379-30020

LS110,MS11#,RS110..SED

LH

 1
58378C - CLIP(FOR LOWER BACK TRIM COVER)
90468-03004

LS110,MS11#,RS110..SED

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-30370

LS110,MS11#,RS110..SED

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-15002

LS110,MS11#,RS110..SED

RR

 2
90541-09106

LS110,MS11#,RS110..SED

FR

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-15002

LS110,MS11#,RS110..SED

RR

 2
90541-09106

LS110,MS11#,RS110..SED

FR

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-30050

LS110,MS11#,RS110..SED

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-30090

LS110,MS11#,RS110..SED

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-30040

LS110,MS11#,RS110..SED

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-14010

LS110,MS11#,RS110..SED

 4
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-14010

LS110,MS11#,RS110..SED

 4
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-30100

LS110,MS11#,RS110..SED

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-30090

LS110,MS11#,RS110..SED

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-09003

LS110,MS11#,RS110..SED

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-09003

LS110,MS11#,RS110..SED

 2
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-22030

LS110,MS11#,RS110..SED

 1
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-30030

LS110,MS11#,RS110..SED

SOLENOID TYPE

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-07006

LS110,MS11#,RS110..SED

W/SOLENOID TYPE

 1
Common parts
69759-30021
90119-08063
90119-08143
90467-05007
90541-12006
91616-40614
91666-40616
