MS111LG-SWKDS (1979)
Toyota Crown
(7909- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-45040 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
(7909- )4M,5M#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15310 - REGULATOR ASSY, OIL PRESSURE | ||||
| 15310-45012 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| 15310C - SPRING, OIL PRESSURE REGULATOR | ||||
| 15132-21010 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| 15318 - GASKET, OIL PRESSURE REGULATOR BODY | ||||
| 15318-45011 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| 15321 - VALVE, OIL ADJUSTING | ||||
| 15131-22010 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| 15323 - BOLT, OIL PRESSURE ADJUSTING | ||||
| 15133-20010 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| 15323A - GASKET, OIL PRESSURE REGULATOR ADJUSTING BOLT | ||||
| 15134-20010 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-45040 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| 15771B - HOSE, OIL, NO.1(FOR OIL PIPE) | ||||
| 15777-45040 |
4M,5ME..MS11# |
1 | ||
| 15771D - CLAMP, OIL COOLER HOSE | ||||
| 96111-10180 |
4M,5M#..MS11# |
3 | ||
| 90460-18001 |
4M,5M#..MS11# COOLER SIDE |
1 | ||
| 15771D - CLAMP, OIL COOLER HOSE | ||||
| 96111-10180 |
4M,5M#..MS11# |
3 | ||
| 90460-18001 |
4M,5M#..MS11# COOLER SIDE |
1 | ||
| 15771D - CLAMP, OIL COOLER HOSE | ||||
| 96111-10180 |
4M,5M#..MS11# |
3 | ||
| 90460-18001 |
4M,5M#..MS11# COOLER SIDE |
1 | ||
| 15771D - CLAMP, OIL COOLER HOSE | ||||
| 96111-10180 |
4M,5M#..MS11# |
3 | ||
| 90460-18001 |
4M,5M#..MS11# COOLER SIDE |
1 | ||
| 15771M - PIPE, OIL | ||||
| 15707-45020 |
4M,5M#..MS11# |
1 | ||
| 15771N - HOSE, OIL, NO.2(FOR OIL PIPE) | ||||
| 15778-45040 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| 15772A - UNION(FOR OIL PIPE) | ||||
| 90405-10153 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| 15772B - HOSE, OIL, NO.1(FOR OIL PIPE) | ||||
| 15779-45020 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| 15772D - CLAMP OR CLIP, OIL COOLER HOSE | ||||
| 90460-18001 |
4M,5M#..MS11# COOLER SIDE |
1 | ||
| 96111-10180 |
4M,5M#..MS11# |
3 | ||
| 15772D - CLAMP OR CLIP, OIL COOLER HOSE | ||||
| 90460-18001 |
4M,5M#..MS11# COOLER SIDE |
1 | ||
| 96111-10180 |
4M,5M#..MS11# |
3 | ||
| 15772D - CLAMP OR CLIP, OIL COOLER HOSE | ||||
| 90460-18001 |
4M,5M#..MS11# COOLER SIDE |
1 | ||
| 96111-10180 |
4M,5M#..MS11# |
3 | ||
| 15772D - CLAMP OR CLIP, OIL COOLER HOSE | ||||
| 90460-18001 |
4M,5M#..MS11# COOLER SIDE |
1 | ||
| 96111-10180 |
4M,5M#..MS11# |
3 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-14235 |
4M,5M#..MS11#..EUR,GEN |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-14235 |
4M,5M#..MS11#..EUR,GEN |
2 | ||
| 15772F - BOLT, UNION(FOR OIL PIPE) | ||||
| 90401-14091 |
4M,5M#..MS11#..EUR,GEN |
1 | ||
| 15772G - HOSE, OIL, NO.2 (FOR OIL PIPE) | ||||
| 15776-45020 |
4M,5ME..MS11# |
1 | ||
| Common parts | ||||
| 91611-40822 | ||||
| 91615-40816 | ||||
| 91656-40616 | ||||

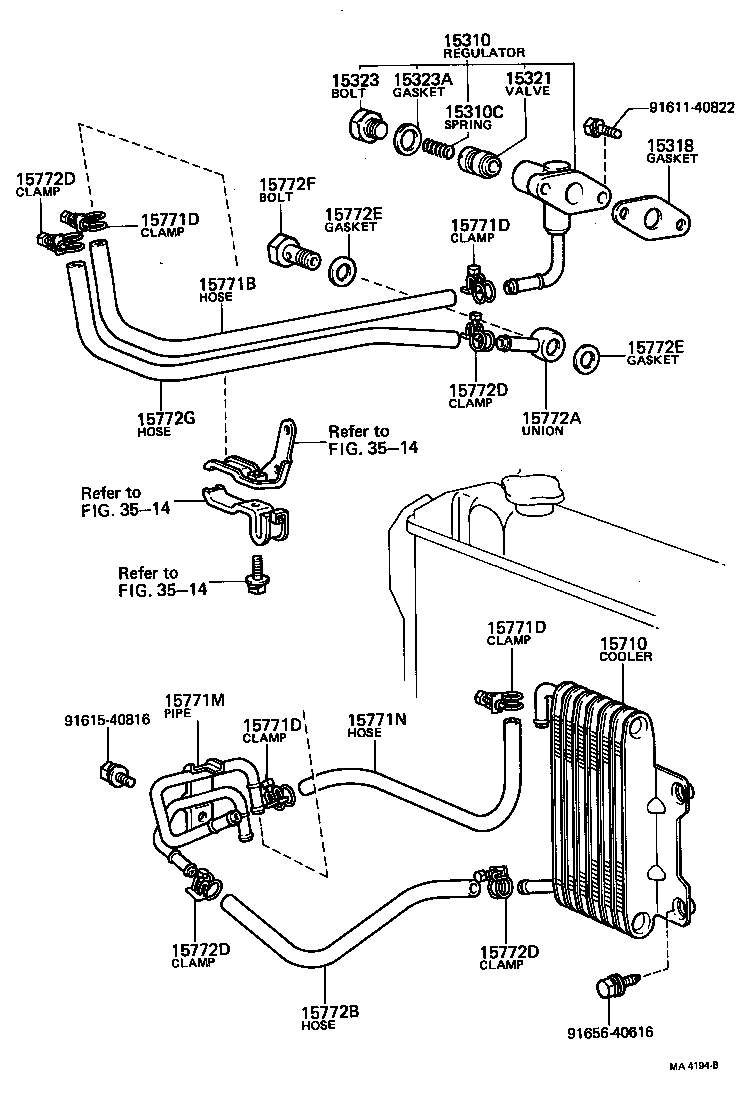

| Linked diagrams | ||||
| 3514 | ||||
