MS111LG-SWJDS (1979)

Toyota Crown

Production Sep 1979 - Aug 1980
Engine 4M
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )4M,5M..GEN

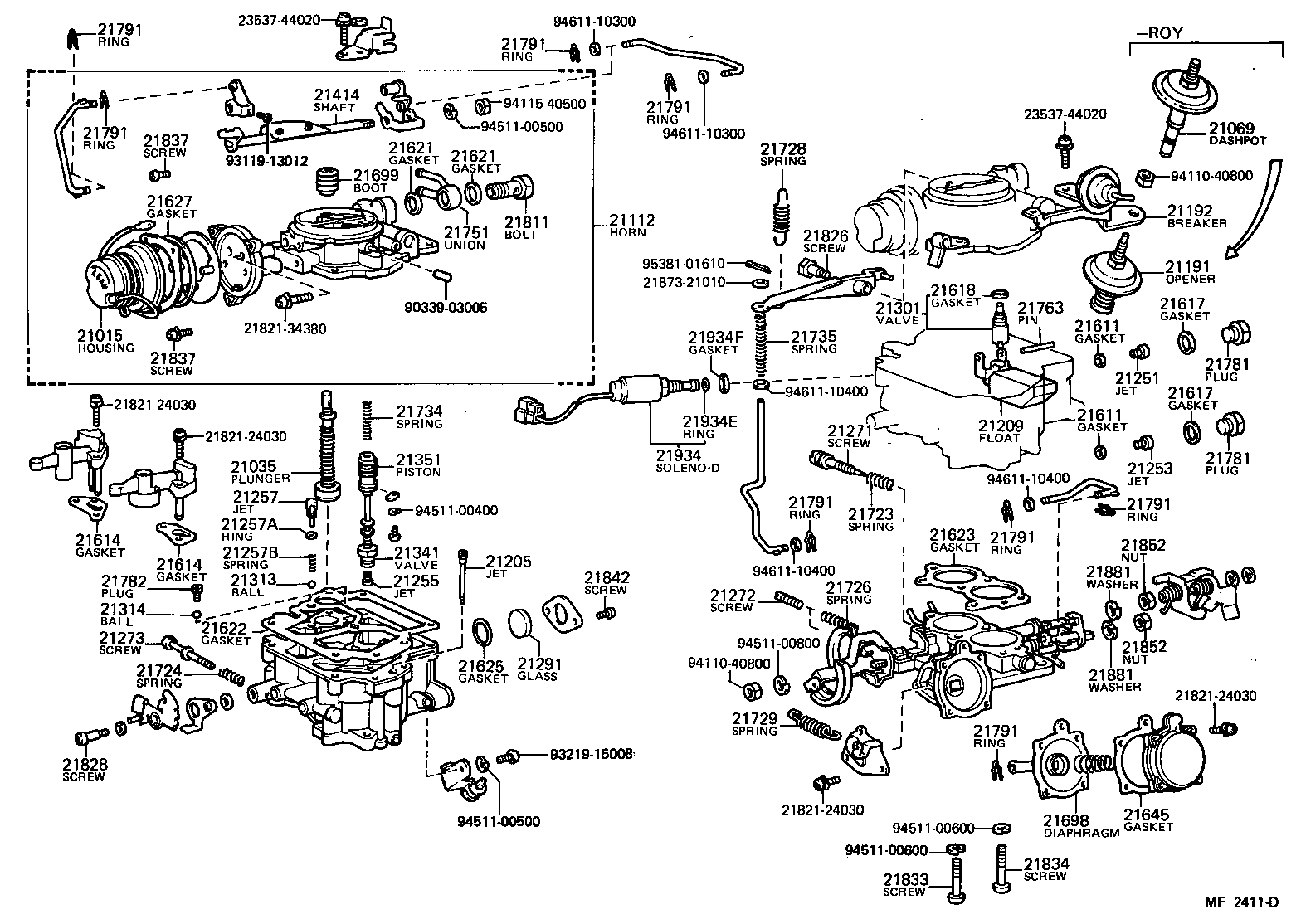

Click highlighted areas on diagram

diagram 21015 21035 21069 21112 21191 21192 21205 21209 21251 21253 21255 21257 21257A 21257B 21271 21272 21273 21291 21301 21313 21314 21341 21351 21414 21611 21611 21614 21614 21617 21617 21618 21621 21621 21622 21623 21625 21627 21645 21698 21699 21723 21724 21726 21728 21729 21734 21735 21751 21763 21781 21781 21782 21791 21791 21791 21791 21791 21791 21791 21791 21811 2182124030 2182124030 2182124030 2182124030 2182134380 21826 21828 21833 21834 21837 21837 21842 21852 21852 2187321010 21881 21881 21934 21934E 21934F 2353744020 2353744020 9033903005 9311913012 9321915008 9411040800 9411040800 9411540500 9451100400 9451100500 9451100500 9451100600 9451100600 9451100800 9461110300 9461110300 9461110400 9461110400 9461110400 9538101610
Part # Description Qty Price
21015 - HOUSING SUB-ASSY, COIL
21015-45220

4M,5M..MS11#..GEN

 1
21035 - PLUNGER SUB-ASSY, PUMP
21035-41260

4M,5M..MS11#

 1
21069 - DASH POT SUB-ASSY
21069-45220

4M,5M..MS11#..(BTP,DLX,SAL)..GEN

 1
21112 - HORN, AIR
21112-45300

4M,5M..MS11#..(BTP,DLX,SAL)..GEN

 1
21192 - BREAKER
21192-45290

4M,5M..MS11#

 1
21205 - JET SUB-ASSY, SLOW
90999-44060

4M,5M..MS11#..GEN

ID=0.60

 1
21209 - FLOAT SUB-ASSY
21209-45200

4M,5M..MS11#

 1
21251 - JET, 1ST MAIN
90999-41105

4M..MS111..GEN

ID=1.05

 1
21253 - JET, 2ND MAIN
90999-42185

4M..MS111..GEN

ID=1.85

 1
21255 - JET, POWER
90999-43068

4M..MS111..GEN

ID=0.68

 1
21257 - JET, PUMP
21257-45101

4M,5M..MS11#

 1
21257A - RING, O(FOR PUMP JET)
21655-11040

4M,5M..MS11#

 1
21257B - SPRING(FOR PUMP JET)
21864-45100

4M..MS111

 1
21271 - SCREW, IDLE ADJUSTING
21271-45140

4M..MS111..GEN

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21842-45100

4M,5M..MS11#

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-41130

4M,5M..MS11#

 1
21291 - GLASS, LEVEL GAGE
21291-60200

4M,5M..MS11#

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-45200

4M..MS111

 1
21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21313-30010

4M,5M..MS11#

 1
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-60010

4M,5M..MS11#

 1
21341 - VALVE, POWER
21304-30010

4M,5M..MS11#

 1
21351 - PISTON, POWER
21351-41012

4M,5M..MS11#

 1
21414 - SHAFT, CHOKE
21054-45100

4M,5M..MS11#

 1
21611 - GASKET, MAIN JET
21611-22010

4M,5M..MS11#

 2
21611 - GASKET, MAIN JET
21611-22010

4M,5M..MS11#

 2
21614 - GASKET, VENTURI
21614-41011

4M,5M..MS11#

2ND

 1
21614-41010

4M,5M..MS11#

1ST

 1
21614 - GASKET, VENTURI
21614-41011

4M,5M..MS11#

2ND

 1
21614-41010

4M,5M..MS11#

1ST

 1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

4M,5M..MS11#

 2
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

4M,5M..MS11#

 2
21618 - GASKET, NEEDLE VALVE SEAT
21618-24030

4M..MS111

 1
21621 - GASKET, UNION NIPPLE
21621-30010

4M,5M..MS11#

 2
21621 - GASKET, UNION NIPPLE
21621-30010

4M,5M..MS11#

 2
21622 - GASKET, AIR HORN
21622-45100

4M,5M..MS11#

 1
21623 - GASKET, BODY FLANGE
21623-45100

4M,5M..MS11#

 1
21625 - GASKET, LEVEL GAGE
21655-60200

4M,5M..MS11#

 1
21627 - GASKET, COIL HOUSING
21627-34080

4M,5M..MS11#

 1
21645 - GASKET, DIAPHRAGM, CAP
21645-41010

4M,5M..MS11#

 1
21698 - DIAPHRAGM
21669-41260

4M,5M..MS11#

 1
21699 - BOOT(FOR PUMP PLUNGER)
21699-51010

4M,5M..MS11#

 1
21723 - SPRING, IDLE ADJUSTING
21723-11041

4M,5M..MS11#

 1
21724 - SPRING, THROTTLE ADJUSTING
21726-40010

4M,5M..MS11#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-40010

4M,5M..MS11#

 1
21728 - SPRING, THROTTLE VALVE RETURN
21728-45290

4M,5M..MS11#

 1
21729 - SPRING, 1ST THROTTLE BACK
90506-06005

4M,5M..MS11#

 1
21734 - SPRING, POWER PISTON
21734-31090

4M..MS111..GEN

 1
21735 - SPRING, PUMP ARM
21735-24360

4M,5M..MS11#

 1
21751 - UNION, NIPPLE
21894-41190

4M,5M..MS11#

 1
21763 - PIN, FLOAT LEVER
21763-38010

4M,5M..MS11#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-30020

4M,5M..MS11#

 2
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-30020

4M,5M..MS11#

 2
21782 - PLUG, NUT(FOR ACCELERATING SYSTEM)
21782-41011

4M,5M..MS11#

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4M,5M..MS11#

 13
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4M,5M..MS11#

 13
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4M,5M..MS11#

 13
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4M,5M..MS11#

 13
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4M,5M..MS11#

 13
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4M,5M..MS11#

 13
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4M,5M..MS11#

 13
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4M,5M..MS11#

 13
21811 - BOLT, UNION NIPPLE
21811-30010

4M,5M..MS11#

 1
21826 - SCREW, PUMP ARM SET
21826-31012

4M,5M..MS11#

 1
21828 - SCREW, 1ST IDLE SET
21845-45200

4M,5M..MS11#

 1
21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834-31010

4M,5M..MS11#

*6-1.0PX27.5-13

 1
21835-40010

4M,5M..MS11#

*6-1.0PX27.5-13

 1
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
93110-16035

4M,5M..MS11#

 2
21837 - SCREW, COIL HOUSING SET
21821-25010

4M,5M..MS11#

 3
21837 - SCREW, COIL HOUSING SET
21821-25010

4M,5M..MS11#

 3
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842-33010

4M,5M..MS11#

 3
21852 - NUT, THROTTLE LEVER SET
21852-30010

4M,5M..MS11#

 2
21852 - NUT, THROTTLE LEVER SET
21852-30010

4M,5M..MS11#

 2
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

4M,5M..MS11#

 2
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

4M,5M..MS11#

 2
21934 - SOLENOID, THROTTLE VALVE
21062-45101

4M,5M..MS11#

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

4M,5M..MS11#

 1
21934F - GASKET
21617-10010

4M,5M..MS11#

 1
Common parts
21821-24030
21821-34380
21873-21010
23537-44020
90339-03005
93119-13012
93219-15008
94110-40800
94115-40500
94511-00400
94511-00500
94511-00600
94511-00800
94611-10300
94611-10400
95381-01610
