MS111LG-SWJBS (1979)

Toyota Crown

Production Sep 1979 - Aug 1980
Engine 4M
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )WG

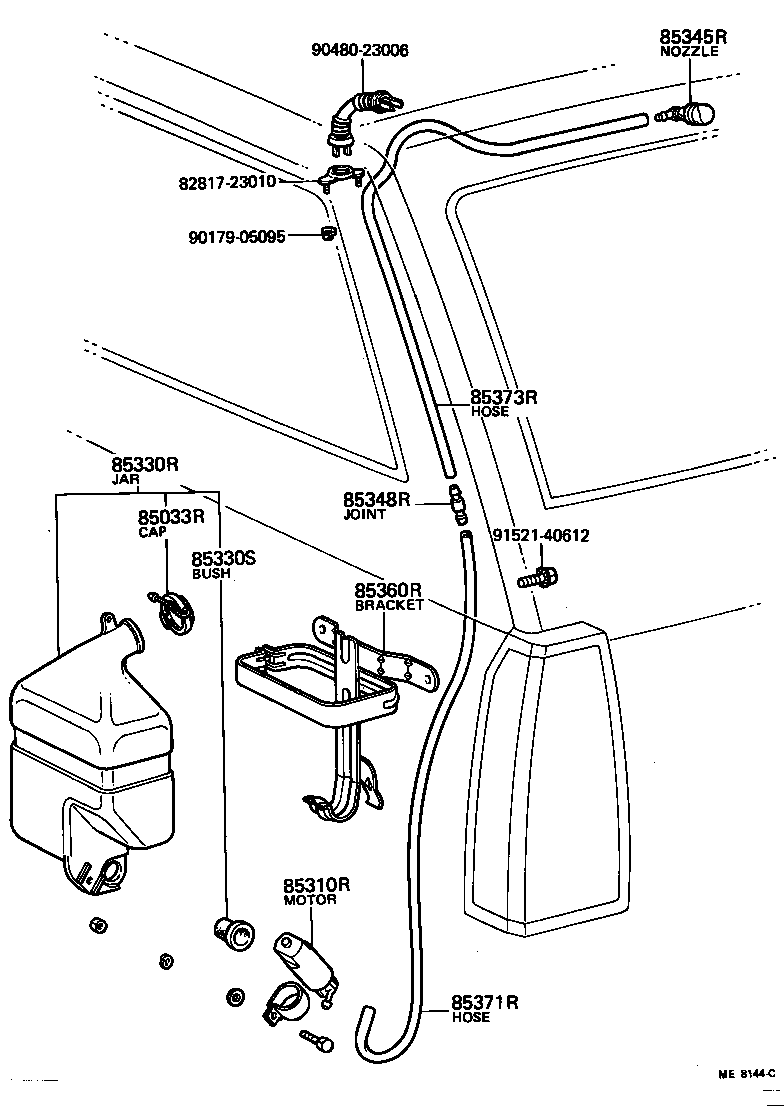

Click highlighted areas on diagram

diagram 8281723010 85033R 85310R 85330R 85330S 85345R 85348R 85360R 85371R 85373R 9017905095 9048023006 9152140612
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85033-36120

LS110,MS11#..WG

 1
85310R - MOTOR ASSY, REAR WASHER
85310-20100

LS110,MS11#..WG

 1
85330R - JAR ASSY, REAR WASHER
85330-23011

LS110,MS11#..WG

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

LS110,MS11#..WG

 1
85345R - NOZZLE, REAR WASHER
85035-91701

LS110,MS11#..WG

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

LS110,MS11#..WG

 1
85360R - BRACKET ASSY, REAR WASHER
85360-91701

LS110,MS11#..WG

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06302

LS110,MS11#..WG

L=1100

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33359

LS110,MS11#..WG

 1
Common parts
82817-23010
90179-05095
90480-23006
91521-40612
