MS111LG-SWJBS (1979)

Toyota Crown

Production Sep 1979 - Aug 1980
Engine 4M
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

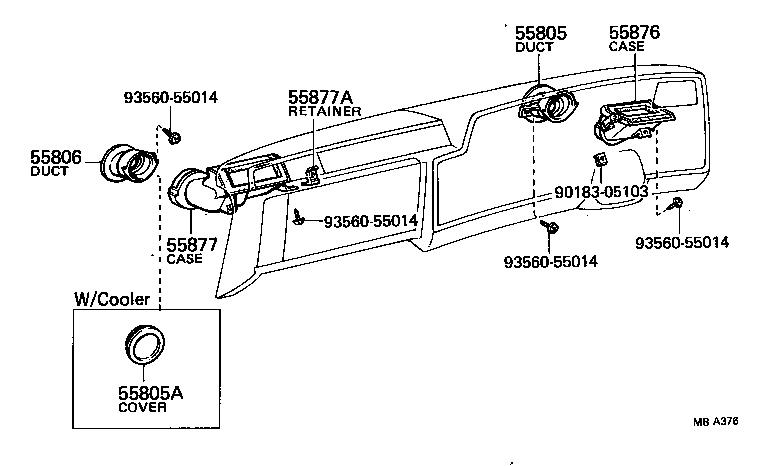

Click highlighted areas on diagram

diagram 55805 55805A 55806 55876 55877 55877A 9018305103 9356055014 9356055014 9356055014 9356055014
Part # Description Qty Price
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55841-30040

RS110..(BTP,DLX)..GEN;LS110,MS11#..(BTP,DLX,SAL)..(ARL,GEN)

 1
55805A - COVER, SIDE VENTILATOR
55877-30030

LS110,MS11#,RS110

 2
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55842-30030

RS110..(BTP,DLX)..GEN;LS110,MS11#..(BTP,DLX,SAL)..(ARL,GEN)

 1
55876 - CASE, SIDE VENTILATOR, RH
55830-30050

RS110..LHD..(BTP,DLX)..GEN;LS110,MS11#..LHD..(BTP,DLX,SAL)..GEN

 1
55877 - CASE, SIDE VENTILATOR, LH
55840-30080

RS110..LHD..(BTP,DLX)..GEN;LS110,MS11#..LHD..(BTP,DLX,SAL)..GEN

 1
55877A - RETAINER, AIR DUCT
55854-30030

LS110,MS11#,RS110..(BTP,DLX,SAL)..(ARL,GEN)

 1
Common parts
90183-05103
93560-55014
