MS111LG-SWJBS (1979)

Toyota Crown

Production Sep 1979 - Aug 1980
Engine 4M
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

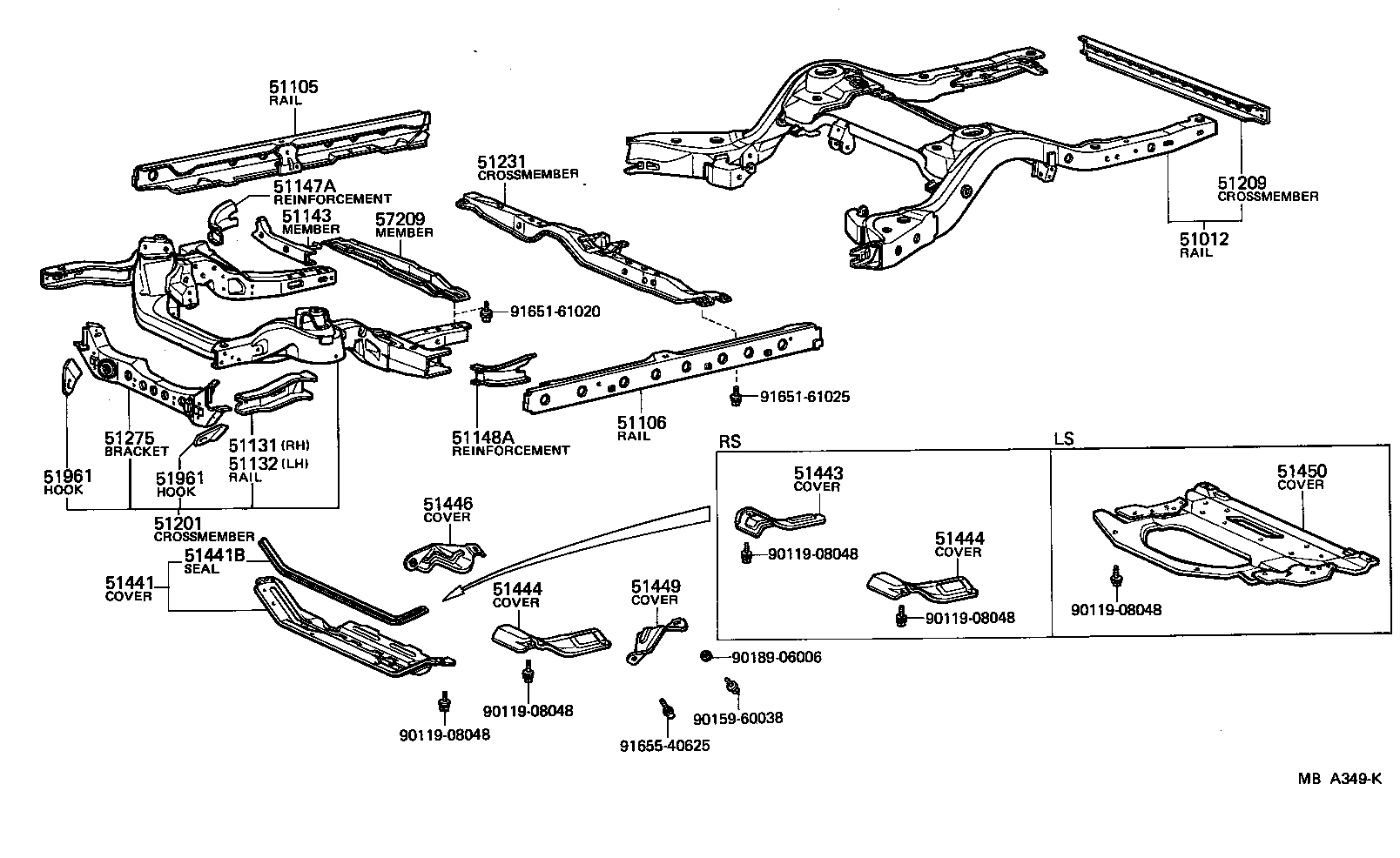

Click highlighted areas on diagram

diagram 51012 51105 51106 51131 51132 51143 51147A 51148A 51201 51209 51231 51275 51441 51441B 51443 51444 51444 51446 51449 51450 51961 51961 57209 9011908048 9011908048 9011908048 9011908048 9011908048 9015960038 9018906006 9165161020 9165161025 9165540625
Part # Description Qty Price
51012 - RAIL SUB-ASSY, REAR FRAME
51012-31110

LS110,MS11#..WG

 1
51105 - RAIL SUB-ASSY, CENTER FRAME, RH
51105-30050

LS110,MS11#,RS110

 1
51106 - RAIL SUB-ASSY, CENTER FRAME, LH
51106-30050

LS110,MS11#,RS110

 1
51131 - RAIL, FRONT FRAME, RH
51131-30020

LS110,MS11#,RS110

 1
51132 - RAIL, FRONT FRAME, LH
51132-30021

LS110,MS11#,RS110

 1
51143 - REINFORCEMENT, SIDE RAIL, REAR RH
51243-30020

LS110,MS11#

 1
51147A - REINFORCEMENT, CENTER FRAME RAIL, FRONT RH
51147-30020

LS110,MS11#,RS110

 1
51148A - REINFORCEMENT, CENTER FRAME RAIL FRONT, LH
51148-30020

LS110,MS11#,RS110

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51011-30190

MS11#

 1
51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8
51291-30070

LS110,MS11#,RS110

 1
51231 - CROSS MEMBER, CENTER SUPPORT BEARING
51203-30070

LS110,MS11#

 1
51275 - BRACKET SUB-ASSY, STRUT BAR
51207-30030

LS110,MS11#,RS110

 1
51441 - COVER, ENGINE UNDER, NO.1
51440-30040

LS110,MS11#,RS110

 1
51441B - SEAL, ENGINE UNDER COVER TO RADIATOR SUPPORT
51458-30040

LS110,MS11#,RS110

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-30100

MS11#..CBR

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-30100

MS11#..CBR

 1
51446 - COVER, FRONT FRAME UNDER, RH
51448-30020

LS110,MS11#,RS110

 1
51449 - COVER, FRONT FRAME UNDER, LH
51449-30020

LS110,MS11#,RS110

 1
51961 - HOOK, NO.1
51964-30030

LS110,MS11#,RS110

LH

 1
51963-30030

LS110,MS11#,RS110

RH

 1
51961 - HOOK, NO.1
51964-30030

LS110,MS11#,RS110

LH

 1
51963-30030

LS110,MS11#,RS110

RH

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
51221-30180

LS110,MS111,RS110..4H

 1
Common parts
90119-08048
90159-60038
90189-06006
91651-61020
91651-61025
91655-40625
