LS120R-SEKBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )SED,WG

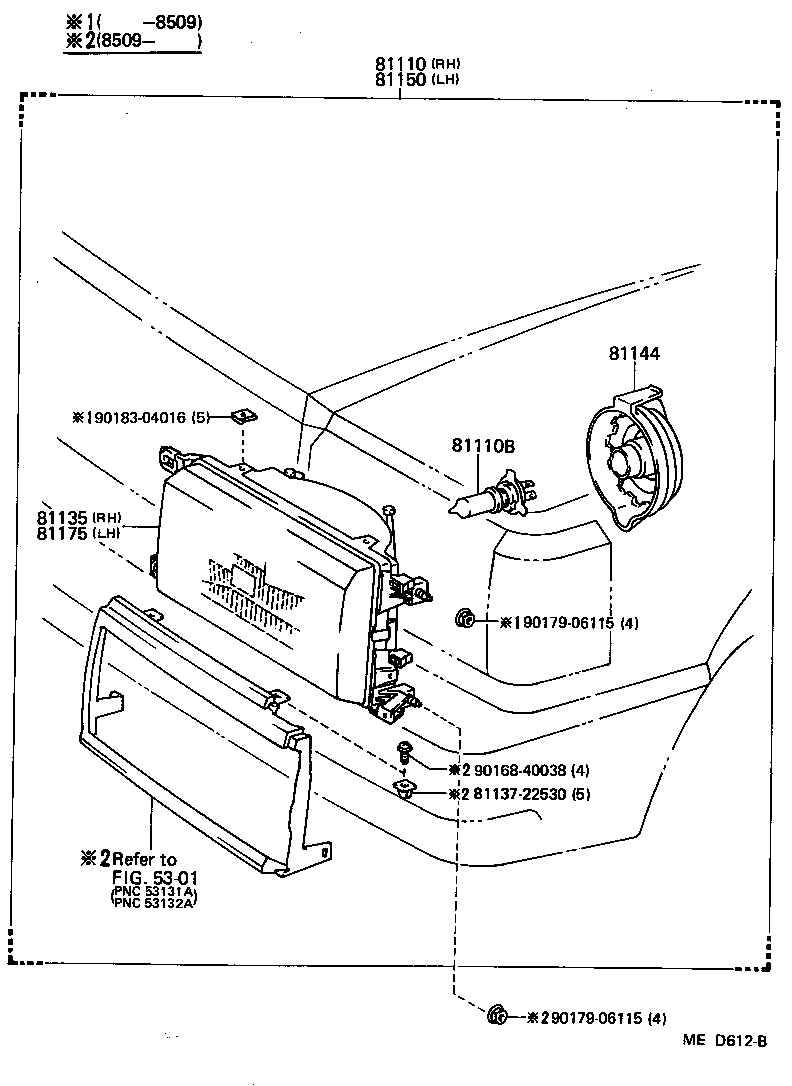

Click highlighted areas on diagram

diagram 5301 81110 81110B 81135 8113722530 81144 81150 81175 9016840038 9017906115 9017906115 9018304016
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80356

LS120,MS12#,YS120..RHD

WHITE

 1
81110-30591

LS120,MS12#,YS120..RHD

 1
81110-30592

LS120,MS12#,YS120..RHD

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

LS120,MS12#,YS120

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

 2
81135 - UNIT ASSY, HEADLAMP, RH
81135-30590

LS120,MS12#,YS120..RHD

 1
81130-30591

LS120,MS12#,YS120..RHD

 1
81144 - COVER, HEADLAMP, NO.1
81139-30590

LS120,MS12#,YS120..SED,WG

RH&LH

 2
81139-30590

LS120,MS12#,YS120

RH&LH

 2
81139-30590

LS120,MS12#,YS120

RH

 1
81179-30591

LS120,MS12#,YS120

LH

 1
81150 - HEADLAMP ASSY, LH
81150-80353

LS120,MS12#,YS120..RHD

WHITE

 1
81150-30701

LS120,MS12#,YS120..RHD

 1
81150-30702

LS120,MS12#,YS120..RHD

 1
81175 - UNIT ASSY, HEADLAMP, LH
81175-30700

LS120,MS12#,YS120..RHD

 1
81170-30701

LS120,MS12#,YS120..RHD

 1
Common parts
81137-22530
90168-40038
90179-06115
90183-04016
Linked diagrams
5301
