LS120R-SEKBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

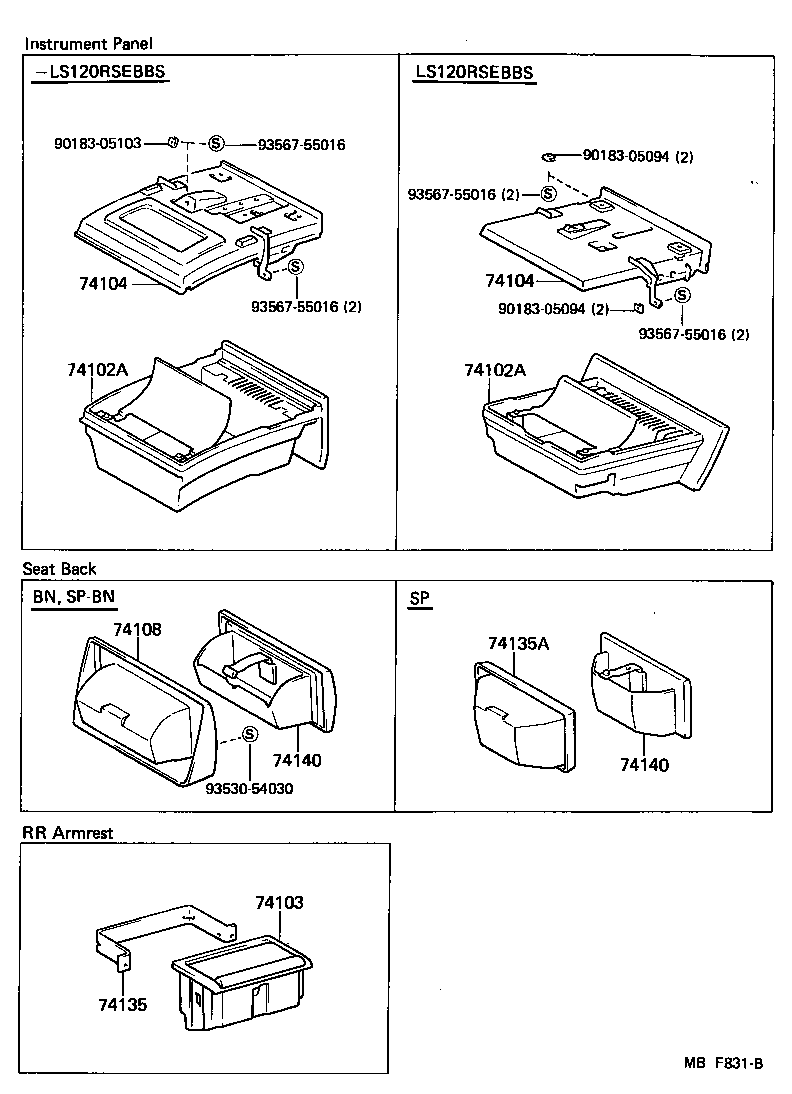

Click highlighted areas on diagram

diagram 74102A 74102A 74103 74104 74104 74108 74135 74135A 74140 74140 9018305094 9018305094 9018305103 9353054030 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-3009005

LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)

BEIGE,BEIGE,TRIM4#

 1
74102-3009006

LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)

BROWN,BROWN,TRIM4#

 1
74102-3009004

LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)

BLUE,BLUE,TRIM8#

 1
74102A - RECEPTACLE ASSY, FRONT ASH
74102-3009005

LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)

BEIGE,BEIGE,TRIM4#

 1
74102-3009006

LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)

BROWN,BROWN,TRIM4#

 1
74102-3009004

LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)

BLUE,BLUE,TRIM8#

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-30160

LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-30160

LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)

 1
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74135-3010004

LS120,YS120..4F

BLUE,BLUE,TRIM8#

 2
74135-3010005

LS120,YS120..4F

BEIGE,BEIGE,TRIM4#

 2
74135-3010006

LS120,YS120..4F

BROWN,SEPIA BROWN,TRIM4#

 2
74140 - RECEPTACLE ASSY, ASH(FOR SEAT)
74130-2205005

LS120,YS120..4F

SP,BEIGE,BEIGE,TRIM4#

 2
74130-2205016

LS120,YS120..4F

BROWN,BROWN,TRIM4#

 2
74130-2205014

LS120,YS120..4F

SP,BLUE,BLUE,TRIM8#

 2
74140 - RECEPTACLE ASSY, ASH(FOR SEAT)
74130-2205005

LS120,YS120..4F

SP,BEIGE,BEIGE,TRIM4#

 2
74130-2205016

LS120,YS120..4F

BROWN,BROWN,TRIM4#

 2
74130-2205014

LS120,YS120..4F

SP,BLUE,BLUE,TRIM8#

 2
Common parts
90183-05094
90183-05103
93530-54030
93567-55016
