LS120R-SEKBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )HT,SED

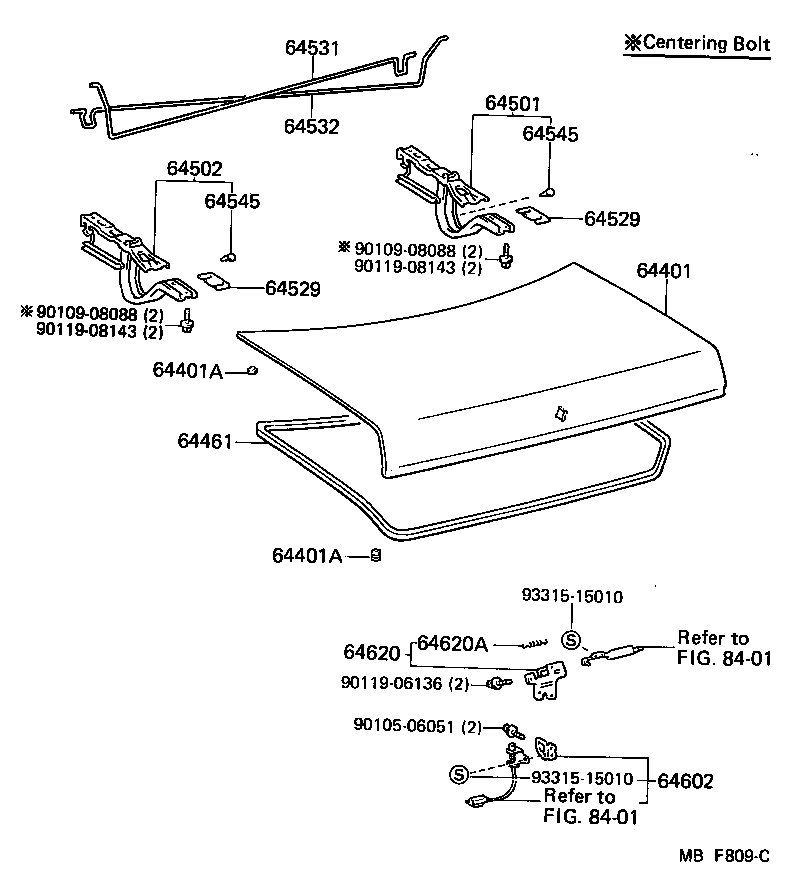

Click highlighted areas on diagram

diagram 64401 64401A 64401A 64461 64501 64502 64529 64529 64531 64532 64545 64545 64602 64620 64620A 8401 8401 9010506051 9010908088 9010908088 9011906136 9011908143 9011908143 9331515010 9331515010
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-30580

LS120,MS12#,YS120..SED

 1
64401-30500

LS120,MS12#,YS120..SED

 1
64401-30500

LS120,MS12#,YS120..SED

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09021

LS120,MS12#,YS120..HT,SED

RR

 2
90541-09106

LS120,MS12#,YS120..HT,SED

FR

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09021

LS120,MS12#,YS120..HT,SED

RR

 2
90541-09106

LS120,MS12#,YS120..HT,SED

FR

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-30080

LS120,MS12#,YS120..SED

 1
64461-30120

LS120,MS12#,YS120..SED

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-30110

LS120,MS12#,YS120..SED

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-30060

LS120,MS12#,YS120..SED

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-14010

LS120,MS12#,YS120..HT,SED

 4
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-14010

LS120,MS12#,YS120..HT,SED

 4
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-30140

LS120,MS12#,YS120..SED

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-30140

LS120,MS12#,YS120..SED

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07007

LS120,MS12#,YS120..HT,SED

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07007

LS120,MS12#,YS120..HT,SED

 2
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-30060

LS120,MS12#,YS120..SED

 1
64620-30061

LS120,MS12#,YS120..HT,SED

 1
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-30050

LS120,MS12#,YS120..HT,SED

W/*EL

 1
64610-20080

LS120,YS120..STD

W/O *EL

 1
64610-12090

LS120,YS120..STD

W/O *EL

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-07010

LS120,MS12#,YS120..HT,SED

W/*EL

 1
90506-08001

LS120,YS120..STD

W/O *EL

 1
Common parts
90105-06051
90109-08088
90119-06136
90119-08143
93315-15010
Linked diagrams
8401
