LS120R-SEKBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

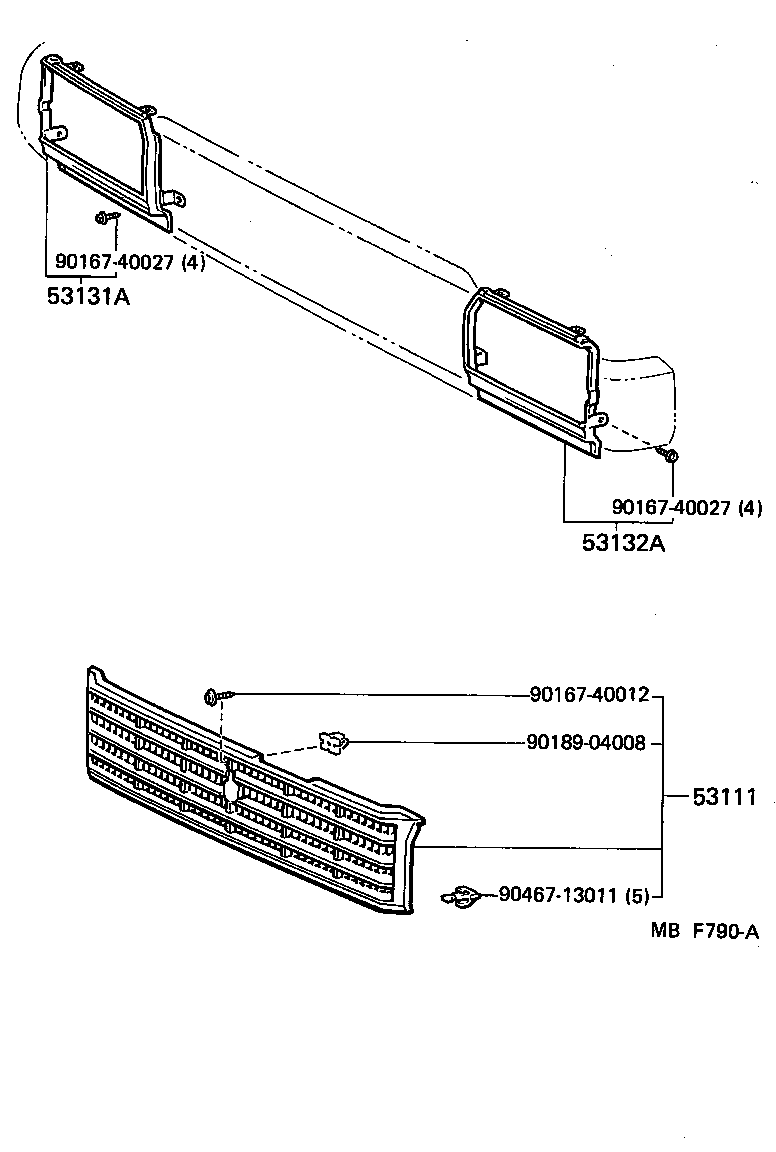

(8308-8509)

Click highlighted areas on diagram

diagram 53111 53131A 53132A 9016740012 9016740027 9016740027 9018904008 9046713011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-30330

LS120,YS120

 1
53111-30400

LS120,MS122,YS120..(SED,WG)..(DLX,SAL,STD)

 1
53131A - DOOR, HEADLAMP, RH
53131-30200

LS120,MS12#,YS120..SED,WG

 1
53131-39135

LS120,MS12#,YS120

 1
53131-30201

LS120,MS12#,YS120..SED,WG

 1
53132A - DOOR, HEADLAMP, LH
53132-30201

LS120,MS12#,YS120..SED,WG

 1
53132-30200

LS120,MS12#,YS120..SED,WG

 1
53132-39135

LS120,MS12#,YS120

 1
Common parts
90167-40012
90167-40027
90189-04008
90467-13011

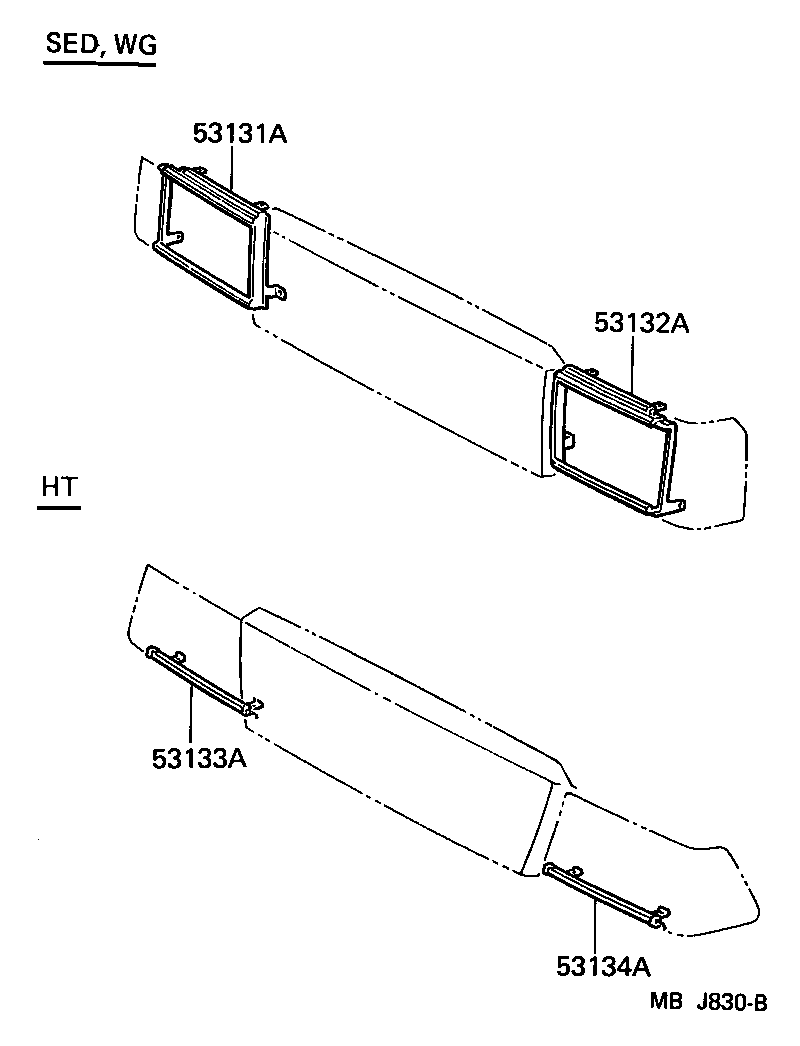

(8509- )

Click highlighted areas on diagram

diagram 53131A 53132A 53133A 53134A
Part # Description Qty Price
53131A - DOOR, HEADLAMP, RH
53131-30200

LS120,MS12#,YS120..SED,WG

 1
53131-39135

LS120,MS12#,YS120

 1
53131-30201

LS120,MS12#,YS120..SED,WG

 1
53132A - DOOR, HEADLAMP, LH
53132-30201

LS120,MS12#,YS120..SED,WG

 1
53132-30200

LS120,MS12#,YS120..SED,WG

 1
53132-39135

LS120,MS12#,YS120

 1

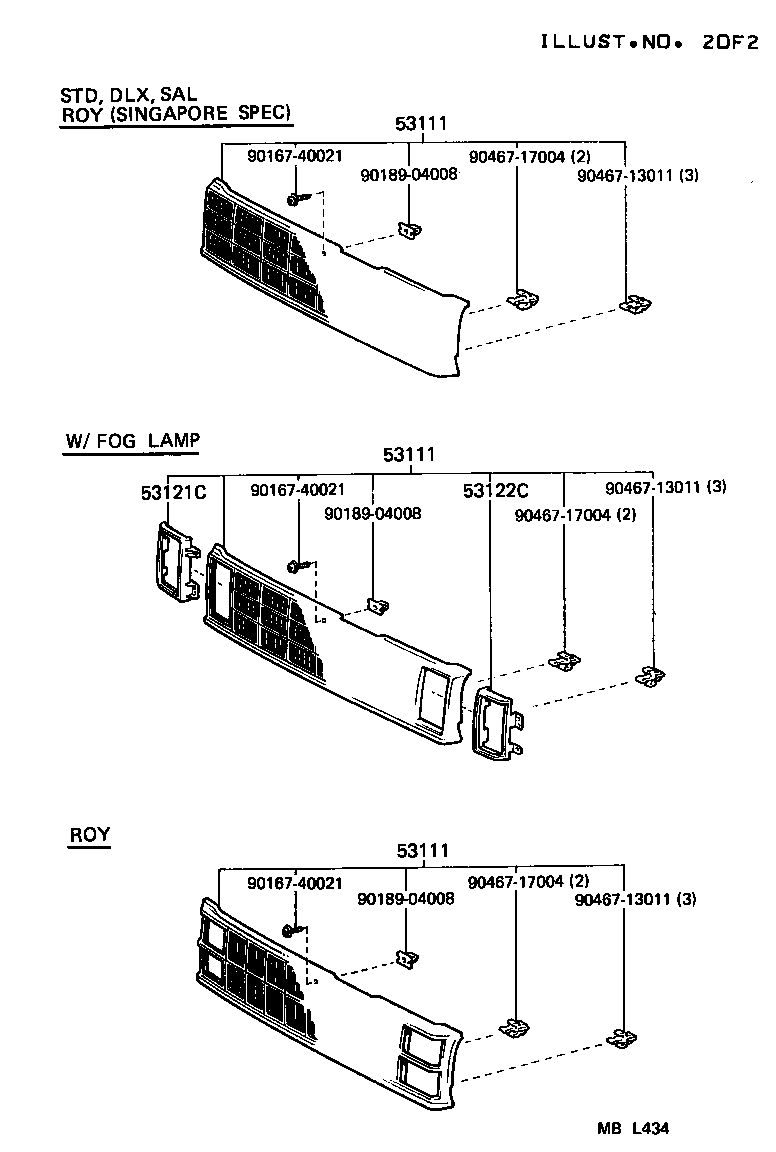

(8509- )SED

Click highlighted areas on diagram

diagram 53111 53111 53111 53121C 53122C 9016740021 9016740021 9016740021 9018904008 9018904008 9018904008 9046713011 9046713011 9046713011 9046717004 9046717004 9046717004
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-30330

LS120,YS120

 1
53111-30400

LS120,MS122,YS120..(SED,WG)..(DLX,SAL,STD)

 1
53111 - GRILLE, RADIATOR
53111-30330

LS120,YS120

 1
53111-30400

LS120,MS122,YS120..(SED,WG)..(DLX,SAL,STD)

 1
53111 - GRILLE, RADIATOR
53111-30330

LS120,YS120

 1
53111-30400

LS120,MS122,YS120..(SED,WG)..(DLX,SAL,STD)

 1
Common parts
90167-40021
90189-04008
90467-13011
90467-17004
