LS120R-SEKBS (1983)
Toyota Crown
(8308- )DLX..SAA ; (8308- )4F,4H,4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

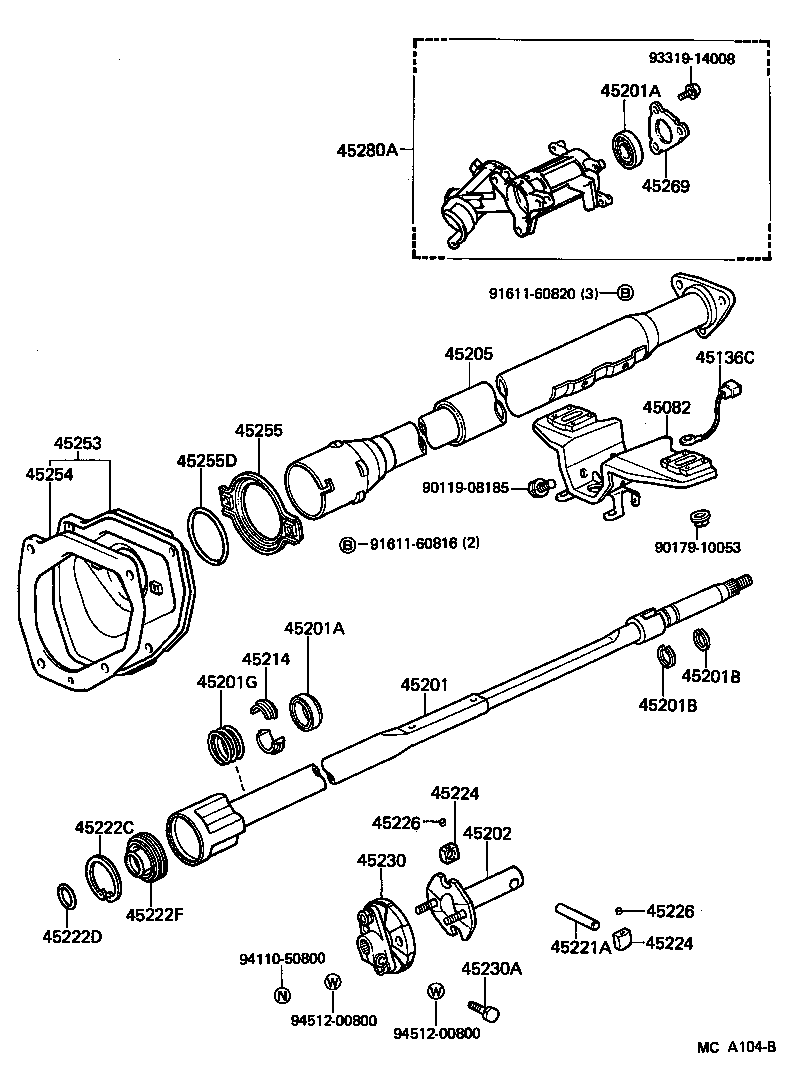

| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30060 |
LS120,MS12#,YS120..RHD..(4F,4HC) |
1 | ||
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07169 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-30050 |
MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC UPR |
1 | ||
| 90369-43004 |
LS120,MS12#,YS120 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC UPR |
1 | ||
| 90369-43004 |
LS120,MS12#,YS120 LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC T=1.35-1.45,T=1.4 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
LS120,MS12#,YS120 LWR |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
LS120,MS12#,YS120 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-30150 |
MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
LS120,MS12#,YS120 |
2 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
LS120,MS12#,YS120 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
LS120,MS12#,YS120 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
LS120,MS12#,YS120 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
LS120,MS12#,YS120 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
LS120,MS12#,YS120 16.00-16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
LS120,MS12#,YS120 15.97-16.00,L=15.97-16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
LS120,MS12#,YS120 16.00-16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
LS120,MS12#,YS120 15.97-16.00,L=15.97-16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
LS120,MS12#,YS120 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
LS120,MS12#,YS120 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30100 |
LS120,MS12#,YS120 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
LS120,MS12#,YS120 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-30150 |
LS120,MS12#,YS120..RHD..(4F,4FC,5F) |
1 | ||
| 45025-30100 |
LS120,MS12#,YS120..RHD..(4F,4FC,5F) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-30110 |
LS120,MS12#,YS120..RHD |
1 | ||
| 45254-30090 |
LS120,MS12#,YS120..RHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
LS120,MS12#,YS120 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-60122 |
LS120,MS12#,YS120 |
1 | ||
| 90301-59001 |
LS120,MS12#,YS120 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30330 |
LS120,YS120..RHD..4F |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90179-10053 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

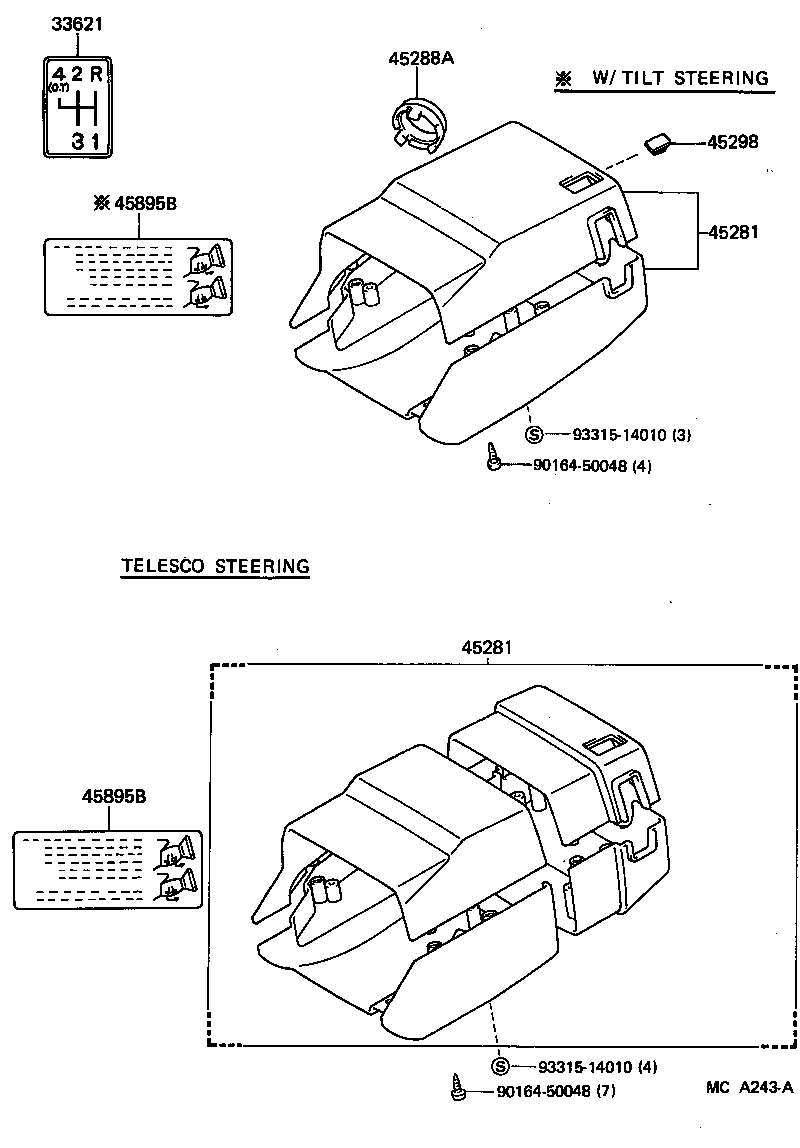

| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-3090105 |
LS120,YS120..RHD..4F BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3090104 |
LS120,YS120..RHD..4F BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3090106 |
LS120,YS120..RHD..4F BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 45287-3090114 |
LS120,YS120..RHD..4F BLUE,BLUE,TRIM8# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-3090105 |
LS120,YS120..RHD..4F BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3090104 |
LS120,YS120..RHD..4F BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3090106 |
LS120,YS120..RHD..4F BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 45287-3090114 |
LS120,YS120..RHD..4F BLUE,BLUE,TRIM8# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-30010 |
LS120,MS122,YS120..DLX,STD |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-3002006 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 45298-3002014 |
LS120,MS12#,YS120..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 45298-3002004 |
LS120,MS12#,YS120..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 45298-3002005 |
LS120..RHD..(4F,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 93315-14010 | ||||
