LS120R-SEBBS (1983)
Toyota Crown
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

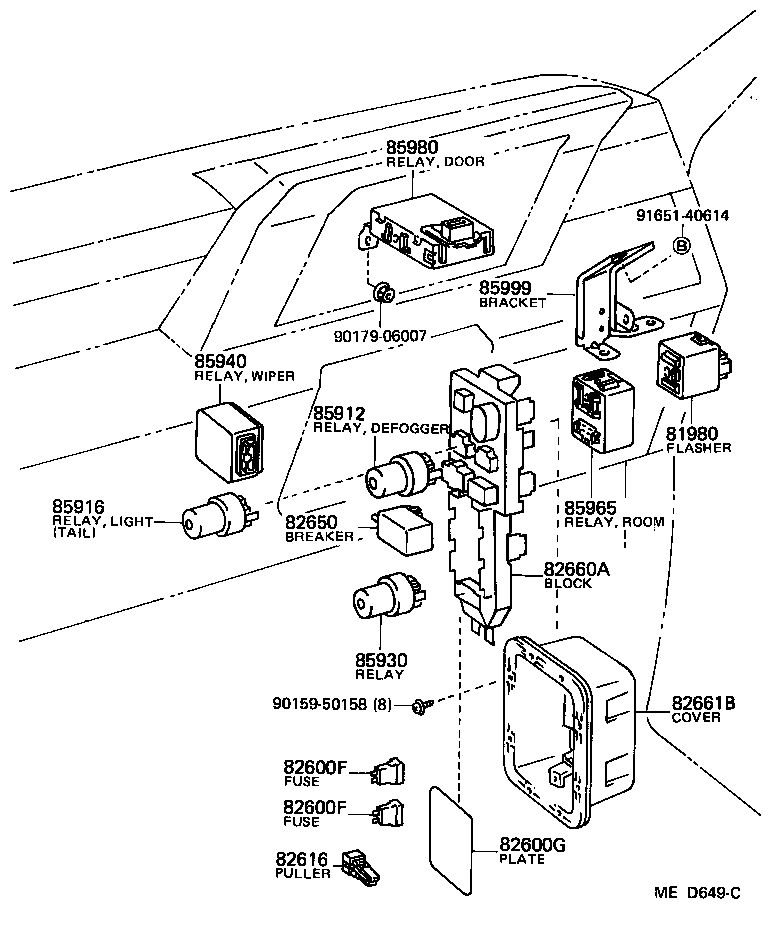

| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
MS123..SAL;LS120,MS122,YS120 |
1 | ||
| 81980-20140 |
LS120 TAXI SPEC |
1 | ||
| 81980-22070 |
MS122..DLX..GEN;LS120,MS122,YS120..(SED,WG)..(ROY,SAL,STD) |
1 | ||
| 81980-16010 |
MS122..DLX..GEN;LS120,MS122,YS120..(SED,WG)..(ROY,SAL,STD) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LS120,MS12#,YS120 10A,10A |
1 | ||
| 90982-09003 |
LS120,MS12#,YS120 15A,15A |
1 | ||
| 90982-09004 |
LS120,MS12#,YS120 20A,YELLOW,20A |
1 | ||
| 90982-09005 |
LS120,MS12#,YS120 7.5A,7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LS120,MS12#,YS120 10A,10A |
1 | ||
| 90982-09003 |
LS120,MS12#,YS120 15A,15A |
1 | ||
| 90982-09004 |
LS120,MS12#,YS120 20A,YELLOW,20A |
1 | ||
| 90982-09005 |
LS120,MS12#,YS120 7.5A,7.5A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-30010 |
LS120,MS12#,YS120..ARL,GEN,SAA,SWZ |
1 | ||
| 82683-30011 |
LS120,MS12#,YS120..RHD |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LS120,MS12#,YS120 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
LS120,MS12#,YS120 30A,30A,DEFOGGER& POWER,MATSUSHITA |
2 | ||
| 82650-32020 |
LS120,MS12#,YS120 30A,30A,DEFOGGER & POWER,TOKAIRIKA |
2 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-30050 |
LS120,MS12#,YS120..ARL,GEN,SAA,SWZ |
1 | ||
| 82660-30051 |
LS120,MS12#,YS120 |
1 | ||
| 82661B - COVER, RELAY BLOCK, NO.3 | ||||
| 82661-30150 |
LS120,MS12#,YS120..RHD RH |
1 | ||
| 82661-30151 |
LS120,MS12#,YS120..RHD RH |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
LS120,MS12#,YS120 DEFOGGER |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-04002 |
LS120,MS12#,YS120 HEAD |
1 | ||
| 90987-01003 |
LS120,MS12#,YS120 TAIL |
1 | ||
| 90987-02006 |
LS120,MS12#,YS120 HEAD |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30100 |
LS120,MS12#,YS120 |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30190 |
LS120,MS12#,YS120..RHD |
1 | ||
| Common parts | ||||
| 90159-50158 | ||||
| 90179-06007 | ||||
| 91651-40614 | ||||
(8308- )LS120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-64020 |
2L..LS120 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54090 |
2L..LS120 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LS120 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LS120,MS12#,YS120 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
LS120 |
1 | ||
| 83530-30060 |
LS120 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84231-30030 |
LS120,MS12#,YS120 |
1 | ||
| 84231-30050 |
LS120,MS12#,YS120 |
1 | ||
| 84231-30060 |
LS120,MS12#,YS120 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-14030 |
LS120..RHD |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LS120 |
1 | ||
| Common parts | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90462-08008 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91651-40814 | ||||

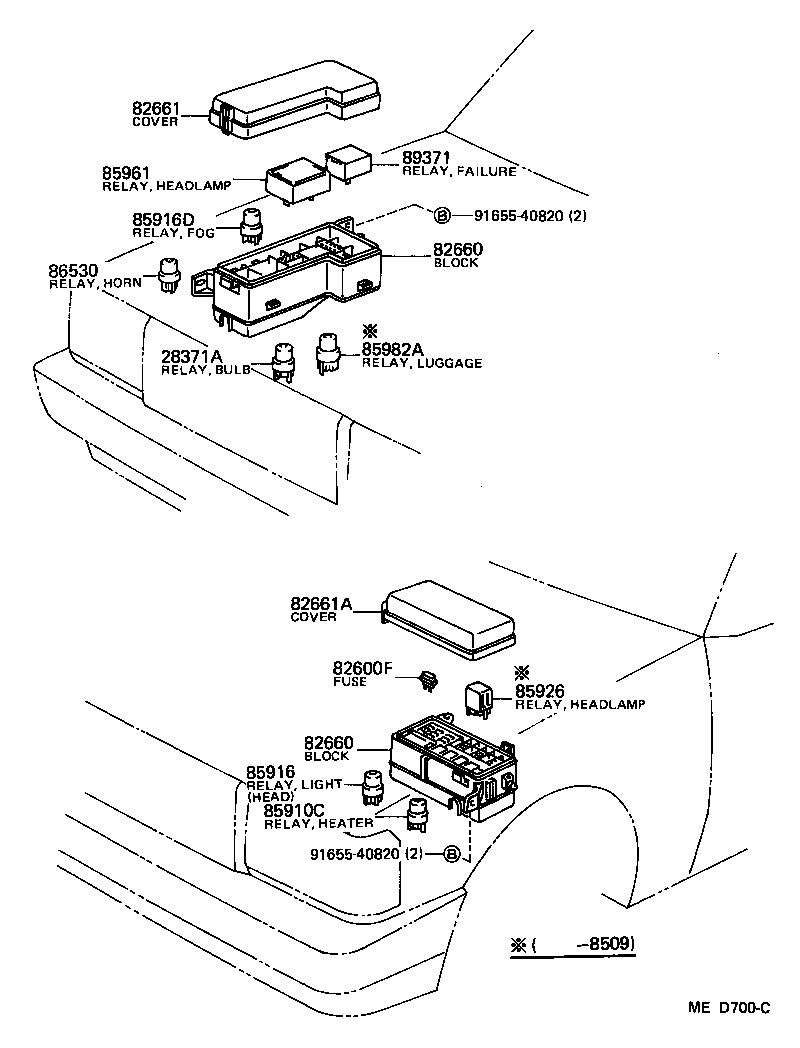

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LS120,MS12#,YS120 10A,10A |
1 | ||
| 90982-09003 |
LS120,MS12#,YS120 15A,15A |
1 | ||
| 90982-09004 |
LS120,MS12#,YS120 20A,YELLOW,20A |
1 | ||
| 90982-09005 |
LS120,MS12#,YS120 7.5A,7.5A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-30030 |
LS120,MS12#,YS120 RH FENDER |
1 | ||
| 82660-30031 |
LS120,MS12#,YS120 RH FENDER |
1 | ||
| 82660-30041 |
LS120,MS12#,YS120 LH FENDER |
1 | ||
| 82660-30040 |
LS120,MS12#,YS120 LH FENDER |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-30030 |
LS120,MS12#,YS120 RH FENDER |
1 | ||
| 82660-30031 |
LS120,MS12#,YS120 RH FENDER |
1 | ||
| 82660-30041 |
LS120,MS12#,YS120 LH FENDER |
1 | ||
| 82660-30040 |
LS120,MS12#,YS120 LH FENDER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-30161 |
LS120 |
1 | ||
| 82661-30160 |
LS120 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-30210 |
LS120 |
1 | ||
| 82661-30211 |
LS120 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
LS120,MS12#,YS120 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-04002 |
LS120,MS12#,YS120 HEAD |
1 | ||
| 90987-01003 |
LS120,MS12#,YS120 TAIL |
1 | ||
| 90987-02006 |
LS120,MS12#,YS120 HEAD |
1 | ||
| 89371 - RELAY, LAMP FAILURE INDICATOR | ||||
| 89371-30180 |
LS120,MS12#,YS120..ARL,GEN,SAA,SWZ |
1 | ||
| Common parts | ||||
| 91655-40820 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

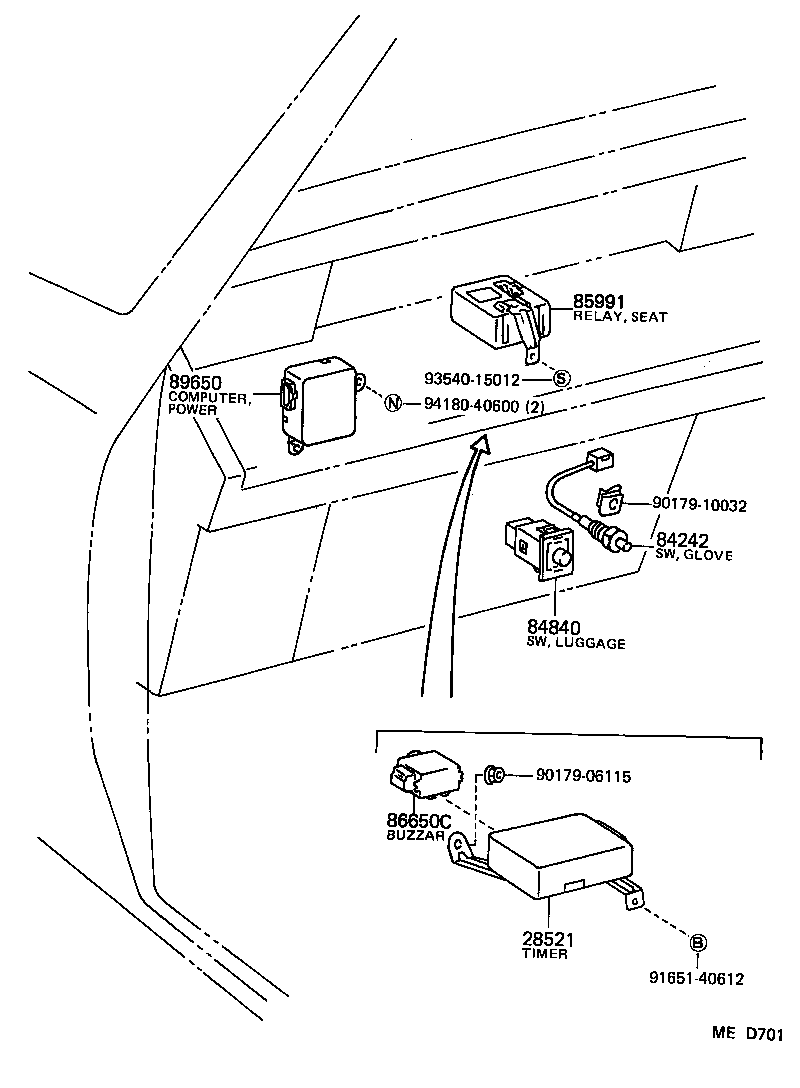

| 28521 - TIMER, PREHEATING | ||||
| 28521-54280 |
2L..LS120..RHD..4H |
1 | ||
| 28521-54281 |
2L..LS120..RHD..4H |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-24010 |
LS120,MS12#,YS120 |
1 | ||
| 84242-20030 |
LS120,MS12#,YS120 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-3008005 |
LS120,YS120..STD FR DOOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 84840-30060 |
LS120,MS12#,YS120..HT,SED GLOVE COMPARTMENT |
1 | ||
| 84840-3008004 |
LS120,MS122,YS120..(DLX,STD)..GEN FR DOOR,BLUE,BEIGE,TRIM8# |
1 | ||
| 84840-3008015 |
LS120,MS122,YS120..(DLX,STD)..GEN FR DOOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-30070 |
LS120;MS123..ARL,EUG,SWZ |
1 | ||
| 86650-30070 |
LS120 |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 90179-10032 | ||||
| 91651-40612 | ||||
| 93540-15012 | ||||
| 94180-40600 | ||||
(8308- )RHD..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

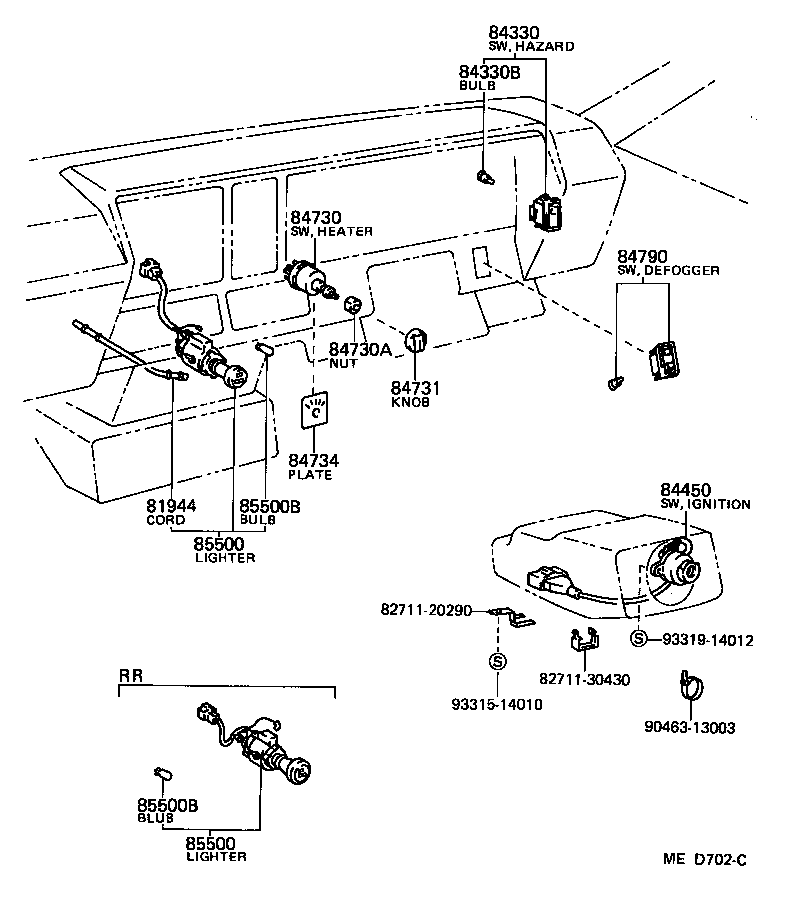

| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-20021 |
LS120..RHD..4H |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30140 |
LS120..RHD..4H |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10110 |
LS120..RHD..4H 12V 1.12W,12V 1.2W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10090 |
LS120,MS12#,YS120 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-30200 |
LS120..RHD..4H |
1 | ||
| 84732-30210 |
LS120..RHD..4H W/COOLER |
1 | ||
| 84732-30190 |
LS120..RHD..4H W/COOLER |
1 | ||
| 84732-30160 |
LS120..RHD..4H |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
LS120..RHD..4H |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12032 |
LS120..RHD..4H W/COOLER |
1 | ||
| 84731-12032 |
LS120..RHD..4H W/COOLER |
1 | ||
| 84731-20030 |
LS120..RHD..4H |
1 | ||
| 84734 - PLATE, HEATER BLOWER SWITCH CAUTION | ||||
| 81942-30050 |
LS120..RHD..4H W/COOLER |
1 | ||
| 55523-30070 |
LS120..RHD..4H |
1 | ||
| 55523-30050 |
LS120..RHD..4H |
1 | ||
| 81942-30020 |
LS120..RHD..4H W/COOLER |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-30160 |
LS120..RHD..4H |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30380 |
LS120,MS12#,YS120..4H,4HC RR |
1 | ||
| 85500-30370 |
LS120..RHD..4H FR |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30380 |
LS120,MS12#,YS120..4H,4HC RR |
1 | ||
| 85500-30370 |
LS120..RHD..4H FR |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
LS120,MS12#,YS120..4H,4HC 14V 1.4W,RR,12V 1.4W |
1 | ||
| 90981-11014 |
LS120,MS12#,YS120 14V 1.4W,FR,12V 1.4W |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
LS120,MS12#,YS120..4H,4HC 14V 1.4W,RR,12V 1.4W |
1 | ||
| 90981-11014 |
LS120,MS12#,YS120 14V 1.4W,FR,12V 1.4W |
1 | ||
| Common parts | ||||
| 82711-20290 | ||||
| 82711-30430 | ||||
| 90463-13003 | ||||
| 93315-14010 | ||||
| 93319-14012 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

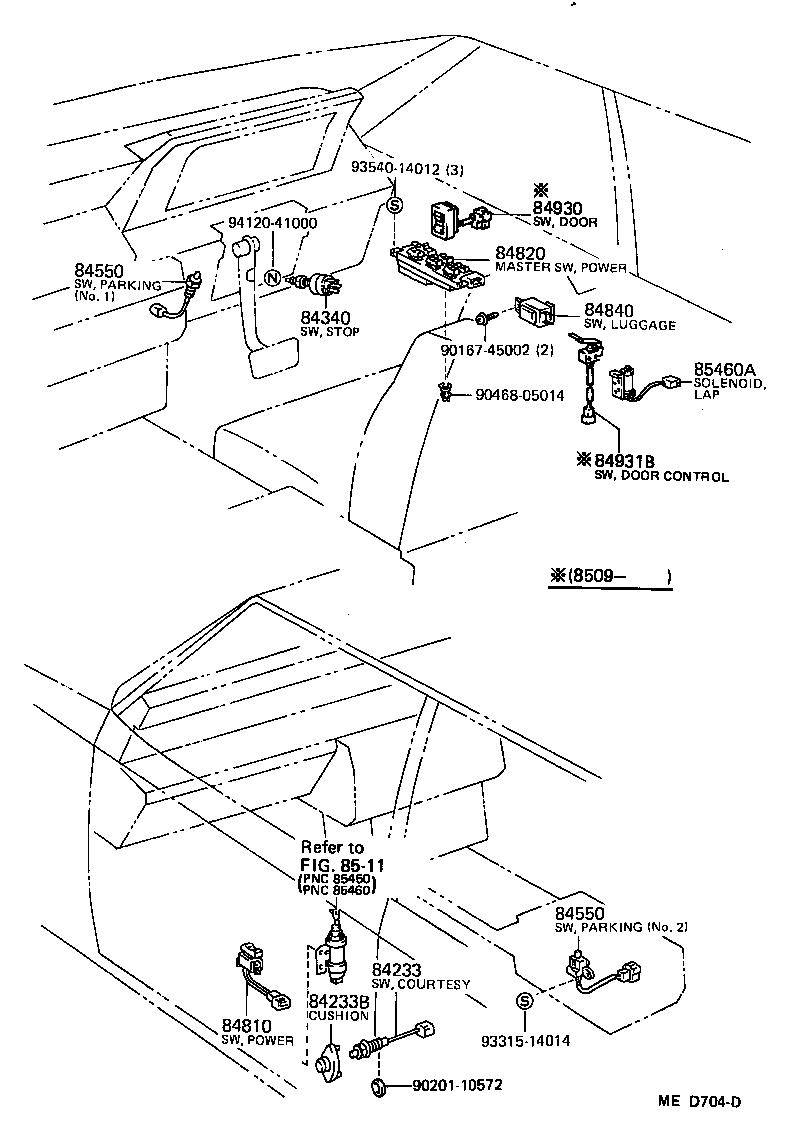

| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
LS120,MS12#,YS120 |
2 | ||
| 84230-30100 |
LS120,MS12#,YS120 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
LS120,MS12#,YS120 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
LS120,MS12#,YS120 TOKAIRIKA |
1 | ||
| 84340-30030 |
LS120,MS122,123,YS120 MATSUSHITA |
1 | ||
| 84340-30030 |
LS120,MS12#,YS120 MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
MS122..RHD..4FC;MS123..RHD..GEN;LS120,MS122,YS120..4H,4HC NO.1 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
MS122..RHD..4FC;MS123..RHD..GEN;LS120,MS122,YS120..4H,4HC NO.1 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-3008005 |
LS120,YS120..STD FR DOOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 84840-30060 |
LS120,MS12#,YS120..HT,SED GLOVE COMPARTMENT |
1 | ||
| 84840-3008004 |
LS120,MS122,YS120..(DLX,STD)..GEN FR DOOR,BLUE,BEIGE,TRIM8# |
1 | ||
| 84840-3008015 |
LS120,MS122,YS120..(DLX,STD)..GEN FR DOOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90167-45002 | ||||
| 90201-10572 | ||||
| 90468-05014 | ||||
| 93315-14014 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

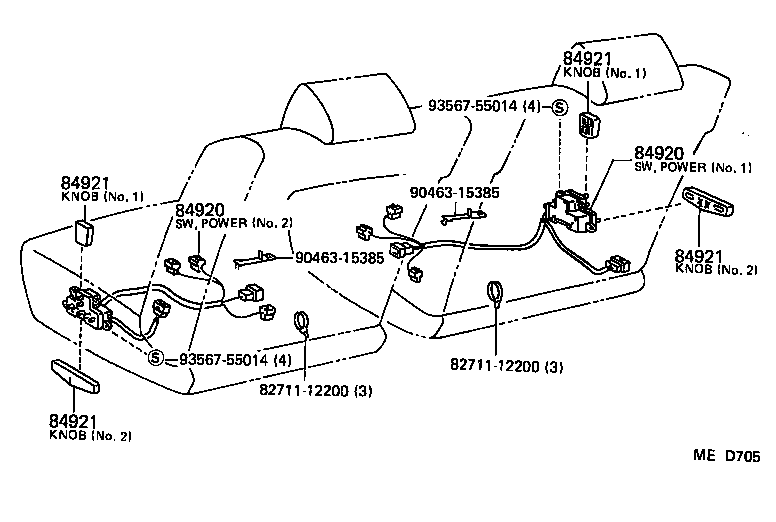

| Common parts | ||||
| 82711-12200 | ||||
| 90463-15385 | ||||
| 93567-55014 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

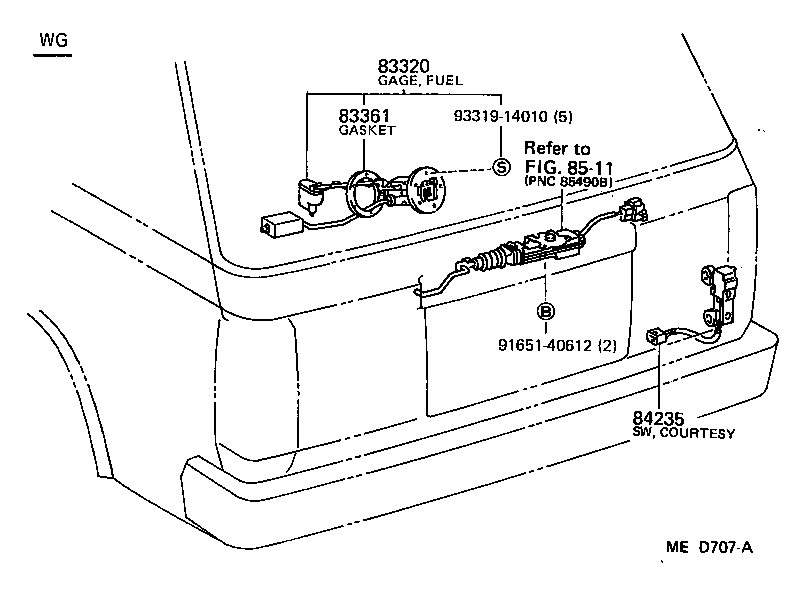

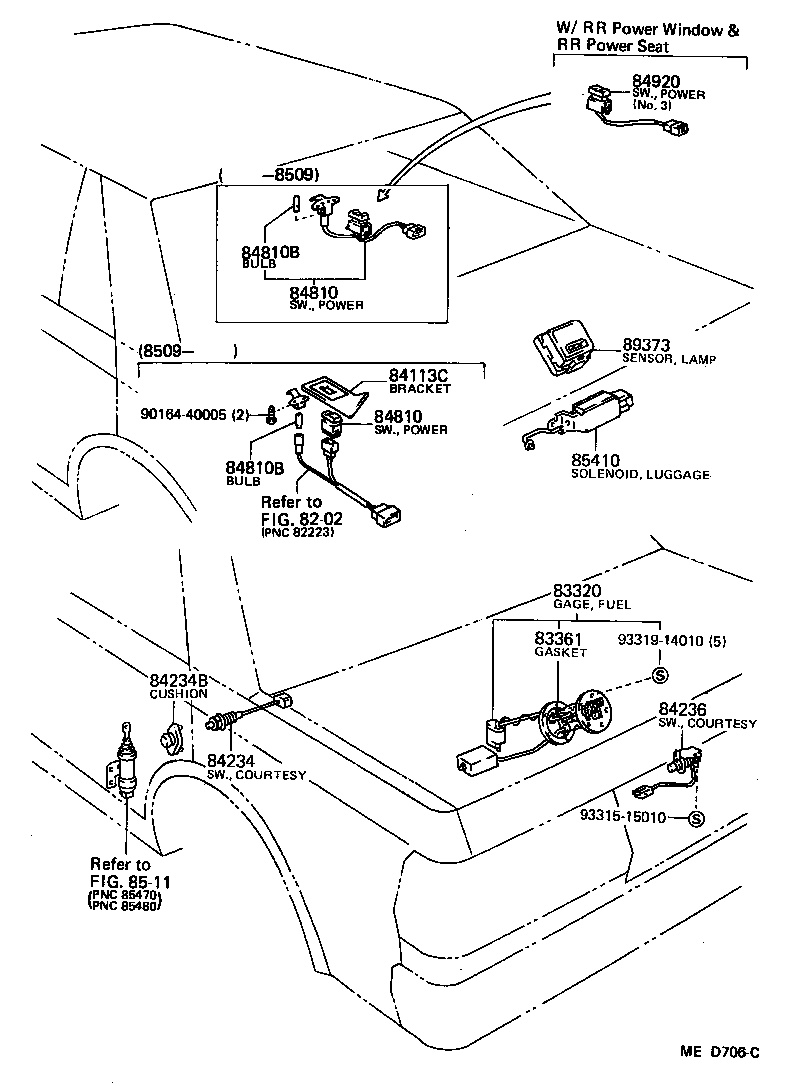

| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39365 |
LS120 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
LS120,MS12#,YS120 |
1 | ||
| 83361-20030 |
LS120,MS12#,YS120 |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-22051 |
LS120,MS12#,YS120 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-24010 |
LS120,MS12#,YS120 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-22020 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 84231-12030 |
LS120,MS12#,YS120..SED |
1 | ||
| 84231-30040 |
LS120,MS12#,YS120..SED |
1 | ||
| 85410 - SOLENOID ASSY, LUGGAGE DOOR LOCK | ||||
| 85410-30060 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-30140 |
LS120,MS122,YS120..SED..GEN CHINA SPEC |
1 | ||
| 89373-30080 |
LS120,MS12#,YS120..(HT,SED)..(ARL,GEN,SAA) |
1 | ||
| 89373-30140 |
LS120,MS122,125,YS120..SED..GEN *LPL=LOWER LIGHTING |
1 | ||
| Common parts | ||||
| 90164-40005 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8511 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39365 |
LS120 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
LS120,MS12#,YS120 |
1 | ||
| 83361-20030 |
LS120,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 8511 | ||||
(8308- )

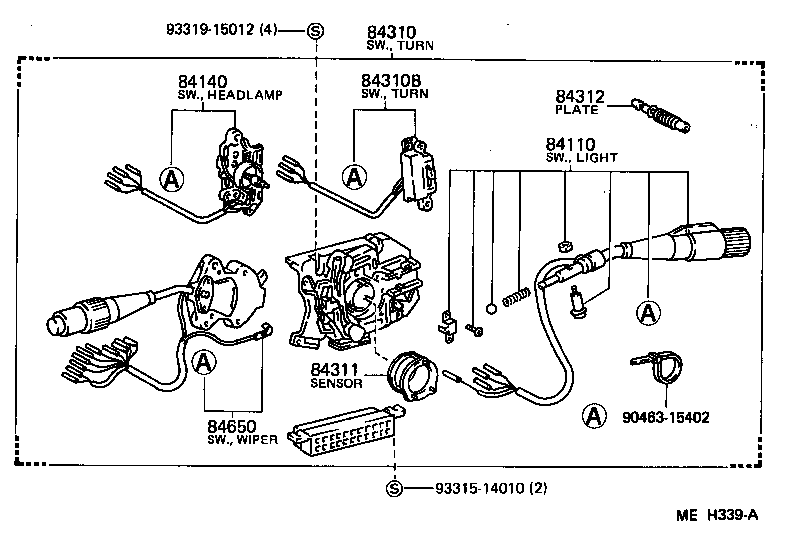

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39225 |
MS122..RHD..SAL;LS120,MS123,YS120..RHD..(4F,4H,4HC,5F) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29095 |
MS122..RHD..SAL;LS120,MS123,125,YS120..RHD..(4F,4H,4HC,5F) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-30470 |
MS122..RHD..SAL;LS120,MS123,YS120..RHD..(4F,4H,4HC,5F) |
1 | ||
| 84310B - SWITCH, TURN SIGNAL | ||||
| 84332-39195 |
MS122..RHD..SAL;LS120,MS123,125,YS120..RHD..(4F,4H,4HC,5F) |
1 | ||
| 84311 - SENSOR, TURN SIGNAL CANCEL | ||||
| 84311-30010 |
MS122..RHD..SAL;LS120,MS123,125,YS120..RHD..(4F,4H,4HC,5F) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LS120,MS12#,YS120 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39295 |
MS122..RHD..SAL;LS120,MS123,125,YS120..RHD..(4F,4H,4HC,5F) |
1 | ||
| Common parts | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
