LS120R-SEBBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )ARL,GEN,SAA

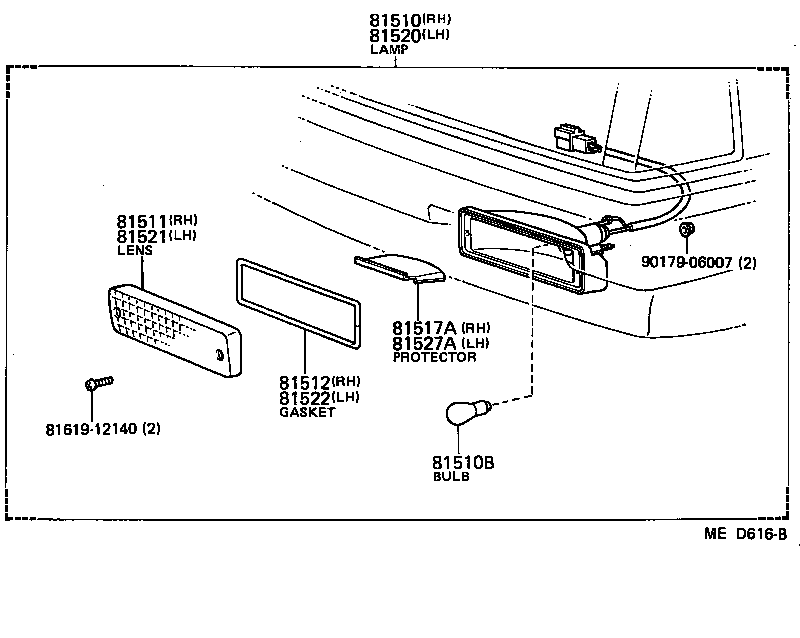

Click highlighted areas on diagram

diagram 81510 81510B 81511 81512 81517A 81520 81521 81522 81527A 8161912140 9017906007
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39495

LS120,MS12#,YS120..ARL,GEN,SAA

W/URETHANE BUMPER

 1
81510-39505

YS120..STD;LS120,MS122..SED..(SAL,STD)..GEN

W/STEEL BUMPER

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

LS120,MS12#,YS120..ARL,GEN,SAA

12V 23W,12V 23W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-22221

LS120,MS12#,YS120

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14140

LS120,MS12#,YS120

 1
81517A - PROTECTOR, FRONT TURN SIGNAL LAMP, RH
81517-14170

YS120..STD;LS120,MS122..SED..(SAL,STD)..GEN

W/STEEL BUMPER

 1
81517-22220

LS120,MS12#,YS120

W/URETHANE BUMPER

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39495

LS120,MS12#,YS120..ARL,GEN,SAA

W/URETHANE BUMPER

 1
81520-39505

YS120..STD;LS120,MS122..SED..(SAL,STD)..GEN

W/STEEL BUMPER

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-22221

LS120,MS12#,YS120

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-14140

LS120,MS12#,YS120

 1
81527A - PROTECTOR, FRONT TURN SIGNAL LAMP, LH
81517-14170

YS120..STD;LS120,MS122..SED..(SAL,STD)..GEN

W/STEEL BUMPER

 1
81517-22220

LS120,MS12#,YS120

W/URETHANE BUMPER

 1
Common parts
81619-12140
90179-06007
