LS120R-SEBBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )SED,WG

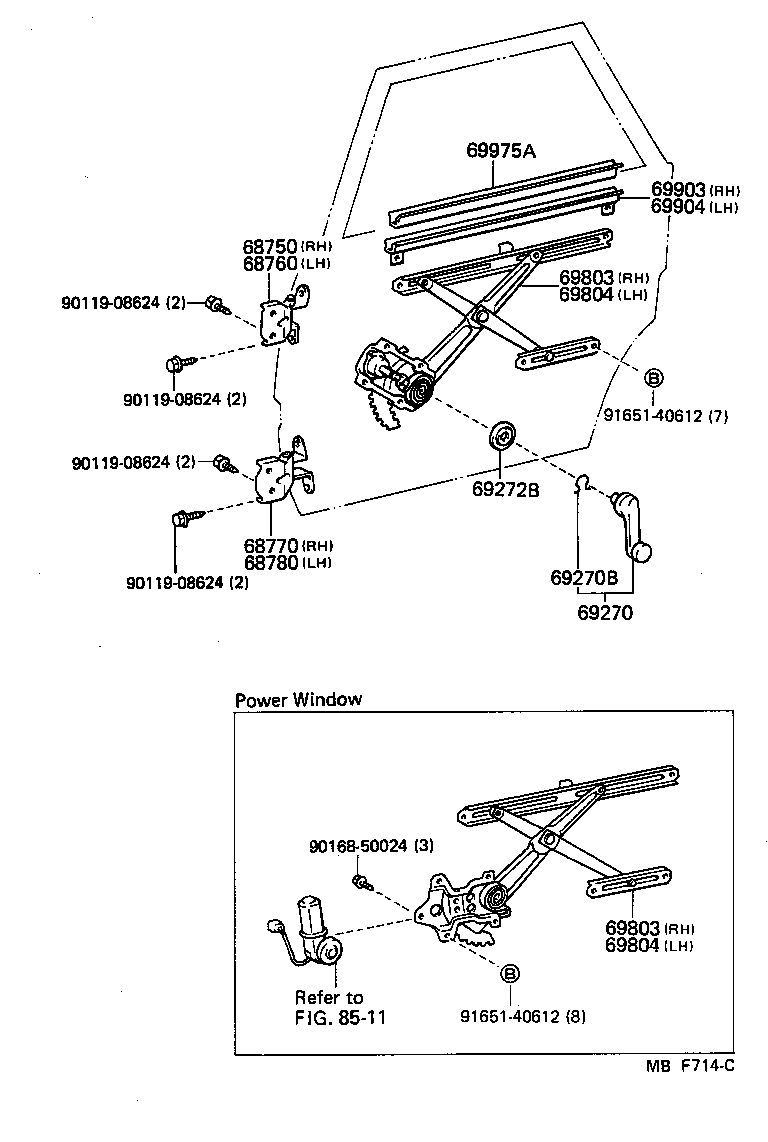

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69270 69270B 69272B 69803 69803 69804 69804 69903 69904 69975A 8511 9011908624 9011908624 9011908624 9011908624 9016850024 9165140612 9165140612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-30050

LS120,MS12#,YS120

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-30040

LS120,MS12#,YS120

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-30020

LS120,MS12#,YS120

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-30020

LS120,MS12#,YS120

 1
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1402004

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 2
69260-1402004

LS120,YS120..STD

BLUE,BLUE,TRIM8#

 2
69260-1402020

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

LS120,YS120..STD

 2
90520-01002

LS120,MS122,YS120..(DLX,STD)..GEN

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-22010

LS120,YS120..STD

 2
69285-22010

LS120,MS122,YS120..(DLX,STD)..GEN

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-30190

LS120,YS120..STD

 1
69830-30190

LS120,MS122,YS120..(DLX,STD)..GEN

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-30190

LS120,YS120..STD

 1
69830-30190

LS120,MS122,YS120..(DLX,STD)..GEN

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-30190

LS120,MS122,YS120..(DLX,STD)..GEN

 1
69840-30190

LS120,YS120..STD

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-30190

LS120,MS122,YS120..(DLX,STD)..GEN

 1
69840-30190

LS120,YS120..STD

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-20010

LS120,MS12#,YS120

 1
69905-30060

LS120,MS12#,YS120..SED,WG

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69905-30060

LS120,MS12#,YS120..SED,WG

 1
69905-20010

LS120,MS12#,YS120

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-20020

LS120,MS12#,YS120..SED,WG

 2
Common parts
90119-08624
90168-50024
91651-40612
Linked diagrams
8511
