LS120R-SEBBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )SED

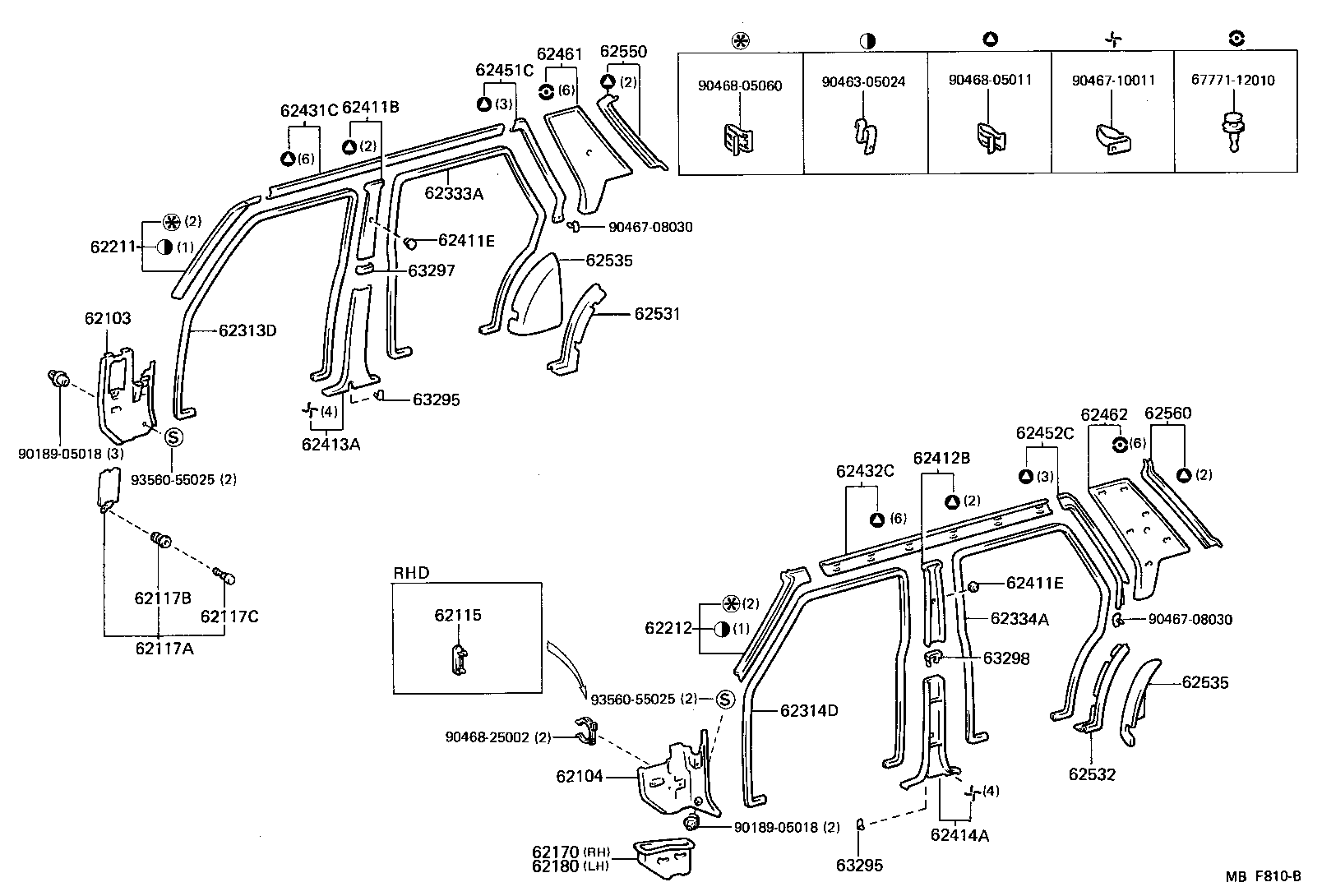

Click highlighted areas on diagram

diagram 62103 62104 62115 62117A 62117B 62117C 62170 62180 62211 62212 62313D 62314D 62333A 62334A 62411B 62411E 62411E 62412B 62413A 62414A 62431C 62432C 62451C 62452C 62461 62462 62531 62532 62535 62535 62550 62560 63295 63295 63297 63298 6777112010 9018905018 9018905018 9046305024 9046708030 9046708030 9046710011 9046805011 9046805060 9046825002 9356055025 9356055025
Part # Description Qty Price
62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH
62101-3024004

LS120..RHD..4H

BLUE,BLUE,TRIM8#

 1
62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH
62102-3025004

LS120..RHD..4H

BLUE,BLUE,TRIM8#

 1
62115 - PLUG, COWL SIDE TRIM
90950-0126724

LS120,MS12#,YS120..RHD

BLUE,BLUE,TRIM8#

 2
62117A - COVER, COWL SIDE TRIM SERVICE HOLE
62117-3001004

LS120,MS12#,YS120..SED..(ARL,GEN,SAA,SWZ)

BLUE,BLUE,TRIM8#

 1
62117-3001104

LS120,MS12#,YS120..RHD

BLUE,BLUE,TRIM8#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-0803104

LS120,MS12#,YS120

BLUE,BLUE,TRIM8#

 1
90467-0803104

LS120,MS12#,YS120..SED

BLUE,BLUE,TRIM8#

 1
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-0501504

LS120,MS12#,YS120..SED

BLUE,BLUE,TRIM8#

 1
90467-0501504

LS120,MS12#,YS120

BLUE,BLUE,TRIM8#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-3012004

LS120..RHD..4H

BLUE,BLUE,TRIM8#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-3014004

LS120..RHD..4H

BLUE,BLUE,TRIM8#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-3008004

LS120,YS120..STD

BLUE,BLUE,TRIM8#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-3008004

LS120,YS120..STD

BLUE,BLUE,TRIM8#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-3004004

LS120,YS120..STD

BLUE,BLUE,TRIM8#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-3004004

LS120,YS120..STD

BLUE,BLUE,TRIM8#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-3021004

LS120,YS120..STD

BLUE,BLUE,TRIM8#

 1
62411-3021004

LS120,MS122,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
62411E - PLUG, HOLE (FOR SEAT BELT)
90950-0115924

LS120..RHD..4H

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

 2
62411E - PLUG, HOLE (FOR SEAT BELT)
90950-0115924

LS120..RHD..4H

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

 2
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-3021004

LS120,YS120..STD

BLUE,BLUE,TRIM8#

 1
62412-3021004

LS120,MS122,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-3012004

LS120,YS120..STD

BLUE,BLUE,TRIM8#

 1
62413-3012004

LS120,MS122,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-3005004

LS120,YS120..STD

BLUE,BLUE,TRIM8#

 1
62414-3005004

LS120,MS122,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
62461 - GARNISH, ROOF SIDE TRIM, RH
62470-3023004

LS120,MS122,YS120..DLX,STD

LIGHT BLUE,BLUE,TRIM8#

 1
62462 - GARNISH, ROOF SIDE TRIM, LH
62480-3019004

LS120,MS122,YS120..DLX,STD

LIGHT BLUE,BLUE,TRIM8#

 1
62531 - COVER, WHEEL HOUSE TRIM, RH
62610-30010

MS125..4FC;LS120,MS122,123,YS120..HT,SED

 1
62610-30010

LS120,MS12#,YS120..SED

 1
62532 - COVER, WHEEL HOUSE TRIM, LH
62620-30010

LS120,MS12#,YS120..SED

 1
62620-30010

MS125..4FC;LS120,MS122,123,YS120..HT,SED

 1
62535 - PAD, QUARTER WHEEL HOUSE TRIM
62611-30020

LS120,MS12#,YS120..HT,SED

 2
62535 - PAD, QUARTER WHEEL HOUSE TRIM
62611-30020

LS120,MS12#,YS120..HT,SED

 2
62550 - GARNISH ASSY, REAR BODY PILLAR, RH
62581-3006004

LS120,MS12#,YS120..SED

BLUE,BLUE,TRIM8#

 1
62560 - GARNISH ASSY, REAR BODY PILLAR, LH
62582-3005004

LS120,MS12#,YS120..SED

BLUE,BLUE,TRIM8#

 1
63295 - LID, CENTER PILLAR GARNISH BELT HOLE, LOWER
73295-3002004

LS120..RHD..4H

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

 2
63295 - LID, CENTER PILLAR GARNISH BELT HOLE, LOWER
73295-3002004

LS120..RHD..4H

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

 2
63297 - LID, CENTER PILLAR GARNISH BELT HOLE, RH
73297-3002004

LS120..RHD..4H

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

 1
63298 - LID, CENTER PILLAR GARNISH BELT HOLE, LH
73298-3002004

LS120..RHD..4H

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

 1
Common parts
67771-12010
90189-05018
90463-05024
90467-08030
90467-10011
90468-05011
90468-05060
90468-25002
93560-55025
