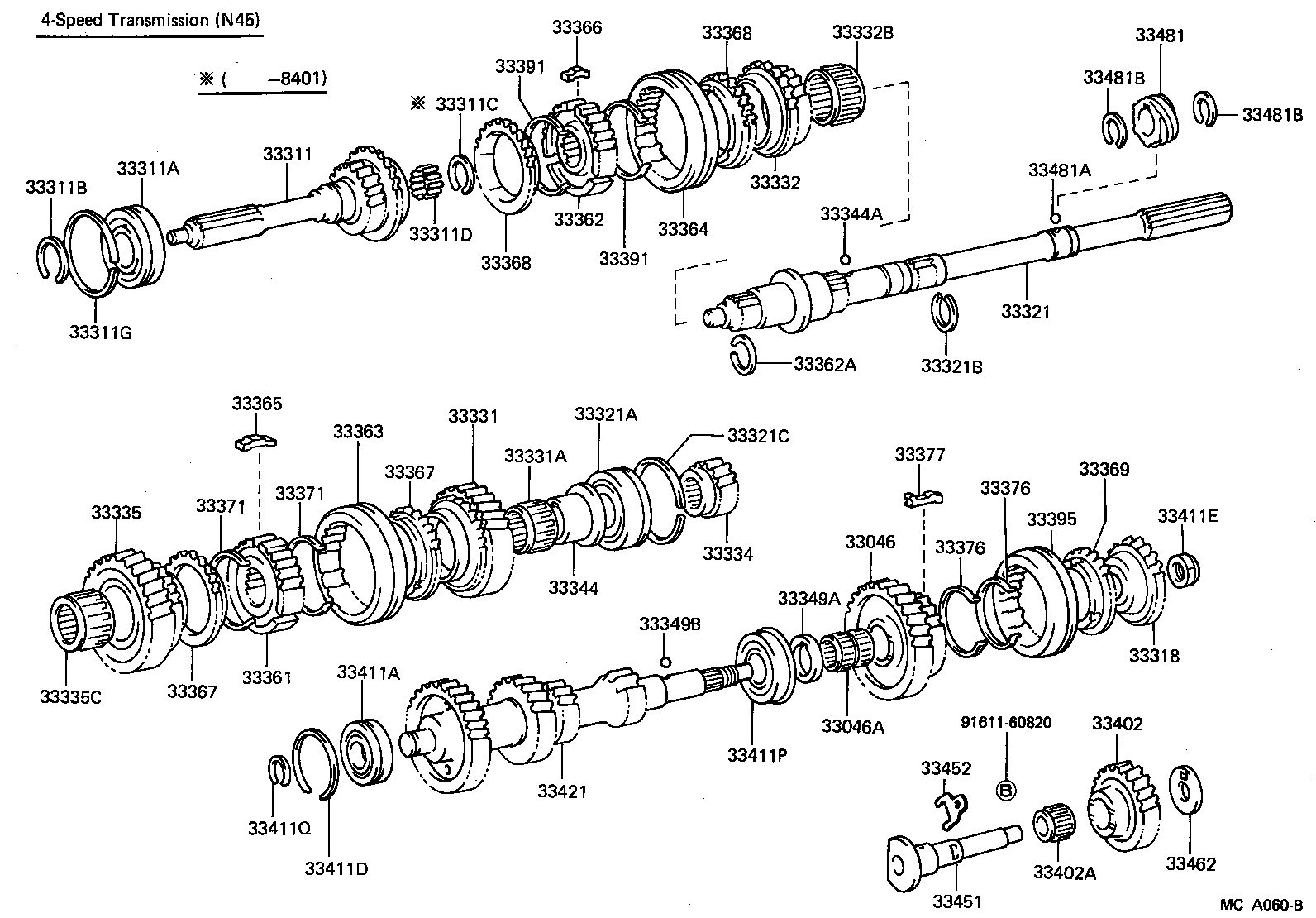

LS120R-SEBBS (1983)
Toyota Crown
(8308- )RHD..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33046 - GEAR SUB-ASSY, COUNTERSHAFT, 4TH | ||||
| 33046-30020 |
LS120..RHD..4H |
1 | ||
| 33046-28020 |
LS120..RHD..4H |
1 | ||
| 33046A - BEARING(FOR COUNTERSHAFT 4TH GEAR) | ||||
| 90364-26002 |
LS120..RHD..4H |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-30050 |
LS120..RHD..4H |
1 | ||
| 33301-30060 |
LS120..RHD..4H |
1 | ||
| 33301-30061 |
LS120..RHD..4H |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-32026 |
LS120..RHD..4H |
1 | ||
| 90363-32008 |
LS120..RHD..4H |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30215 |
LS120..RHD..4H T=2.10,MARK 1,T=2.10 |
1 | ||
| 90520-30217 |
LS120..RHD..4H T=2.20,MARK 3,T=2.20 |
1 | ||
| 90520-30214 |
LS120..RHD..4H T=2.05,MARK 0,T=2.05 |
1 | ||
| 90520-30218 |
LS120..RHD..4H T=2.25,MARK 4,T=2.25 |
1 | ||
| 90520-30216 |
LS120..RHD..4H T=2.15,MARK 2,T=2.15 |
1 | ||
| 90520-30219 |
LS120..RHD..4H T=2.30,MARK 5,T=2.30 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 90521-33001 |
LS120..RHD..4H |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06002 |
LS120..RHD..4H |
13 | ||
| 90361-06047 |
LS120..RHD..4H |
14 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-71221 |
LS120..RHD..4H ID=71.1 |
1 | ||
| 90520-76002 |
LS120..RHD..4H ID=76.4 |
1 | ||
| 33318 - PIECE, GEAR SPLINE, NO.5 | ||||
| 33318-28010 |
LS120..RHD..4H |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-30111 |
LS120..RHD..4H |
1 | ||
| 33321-30112 |
LS120..RHD..4H |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-30032 |
LS120..RHD..4H |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25006 |
LS120..RHD..4H T=2.73-2.78,MARK B,T=2.73 |
1 | ||
| 90520-25010 |
LS120..RHD..4H T=2.85-2.90,MARK D,T=2.85 |
1 | ||
| 90520-25011 |
LS120..RHD..4H T=2.91-2.96,MARK E,T=2.91 |
1 | ||
| 90520-25016 |
LS120..RHD..4H T=3.21-3.26,MARK K,T=3.21 |
1 | ||
| 90520-25013 |
LS120..RHD..4H T=3.03-3.08,MARK G,T=3.03 |
1 | ||
| 90520-25014 |
LS120..RHD..4H T=3.09-3.14,MARK H,T=3.09 |
1 | ||
| 90520-25017 |
LS120..RHD..4H T=3.27-3.32,MARK L,T=3.27 |
1 | ||
| 90520-25009 |
LS120..RHD..4H T=2.79-2.84,MARK C,T=2.79 |
1 | ||
| 90520-25015 |
LS120..RHD..4H T=3.15-3.20,MARK J,T=3.15 |
1 | ||
| 90520-25005 |
LS120..RHD..4H T=2.67-2.72,MARK A,T=2.67 |
1 | ||
| 90520-25012 |
LS120..RHD..4H T=2.97-3.02,MARK F,T=2.97 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-71221 |
LS120..RHD..4H T=1.65,ID=71.1 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33031-30020 |
LS120..RHD..4H |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-38034 |
LS120..RHD..4H |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-30020 |
LS120..RHD..4H |
1 | ||
| 33033-30021 |
LS120..RHD..4H |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-35005 |
LS120..RHD..4H |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33336-28020 |
LS120..RHD..4H |
1 | ||
| 33336-30010 |
LS120..RHD..4H |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-30020 |
LS120..RHD..4H |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-38002 |
LS120..RHD..4H |
1 | ||
| 33344 - BUSH, REVERSE GEAR | ||||
| 33344-30010 |
LS120..RHD..4H |
1 | ||
| 33344A - KEY OR BALL, REVERSE GEAR BEARING | ||||
| 90360-06004 |
LS120..RHD..4H |
1 | ||
| 33349A - WASHER, 4TH GEAR | ||||
| 33349-30020 |
LS120..RHD..4H |
1 | ||
| 33349B - BALL (FOR 4TH GEAR WASHER) | ||||
| 90360-06004 |
LS120..RHD..4H |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
LS120..RHD..4H |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-30040 |
LS120..RHD..4H |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-28012 |
LS120..RHD..4H T=1.75-1.80,MARK C-1,T=1.75 |
1 | ||
| 90520-28010 |
LS120..RHD..4H T=1.85-1.90,MARK D-1,T=1.85 |
1 | ||
| 90520-28013 |
LS120..RHD..4H T=2.05-2.10,MARK F-1,T=2.05 |
1 | ||
| 90520-28245 |
LS120..RHD..4H T=1.80-1.85,MARK D,T=1.80 |
1 | ||
| 90520-28011 |
LS120..RHD..4H T=1.95-2.00,MARK E-1,T=1.95 |
1 | ||
| 90520-28248 |
LS120..RHD..4H T=2.00-2.05,MARK F,T=2.00 |
1 | ||
| 90520-28246 |
LS120..RHD..4H T=1.90-1.95,MARK E,T=1.90 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33364-30020 |
LS120..RHD..4H |
1 | ||
| 33364-30021 |
LS120..RHD..4H |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-30020 |
LS120..RHD..4H |
1 | ||
| 33364-30021 |
LS120..RHD..4H |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-30050 |
LS120..RHD..4H |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-30030 |
LS120..RHD..4H |
3 | ||
| 33366-30031 |
LS120..RHD..4H |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33369-30020 |
LS120..RHD..4H REVERSE |
1 | ||
| 33367-30040 |
LS120..RHD..4H 1ST |
1 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33369-30020 |
LS120..RHD..4H REVERSE |
1 | ||
| 33367-30040 |
LS120..RHD..4H 1ST |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
LS120..RHD..4H |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
LS120..RHD..4H |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
LS120..RHD..4H |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
LS120..RHD..4H |
2 | ||
| 33391-22020 |
LS120..RHD..4H |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
LS120..RHD..4H |
2 | ||
| 33391-22020 |
LS120..RHD..4H |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
LS120..RHD..4H |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
LS120..RHD..4H |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-30010 |
LS120..RHD..4H |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-22020 |
LS120..RHD..4H |
2 | ||
| 33371-14031 |
LS120..RHD..4H |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-22020 |
LS120..RHD..4H |
2 | ||
| 33371-14031 |
LS120..RHD..4H |
2 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-14013 |
LS120..RHD..4H |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33461-30030 |
LS120..RHD..4H |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90364-28006 |
LS120..RHD..4H |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25010 |
LS120..RHD..4H |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
LS120,MS122,123,YS120..MTM T=1.07,OD=55.6 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-20002 |
LS120..RHD..4H |
1 | ||
| 90179-20009 |
LS120..RHD..4H |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-31002 |
LS120..RHD..4H |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23143 |
LS120,MS122,123,YS120..MTM T=2.15-2.20,T=2.15 |
1 | ||
| 90520-23090 |
LS120,MS122,123,YS120..MTM T=2.20-2.25,T=2.20 |
1 | ||
| 90520-23115 |
LS120,MS122,123,YS120..MTM T=2.05-2.10,T=2.05 |
1 | ||
| 90520-23089 |
LS120,MS122,123,YS120..MTM T=2.10-2.15,T=2.10 |
1 | ||
| 90520-23144 |
LS120,MS122,123,YS120..MTM T=2.25-2.30,T=2.25 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-30120 |
LS120..RHD..4H |
1 | ||
| 33421-30130 |
LS120..RHD..4H |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-30040 |
LS120..RHD..4H |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-30010 |
LS120..RHD..4H |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-30020 |
LS120..RHD..4H |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-22010 |
LS120..RHD..4H N=6,MARK 6X18-20 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
LS120..RHD..4H |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
LS120..RHD..4H T=1.50,OD=31.3 |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
LS120..RHD..4H T=1.50,OD=31.3 |
2 | ||
| Common parts | ||||
| 91611-60820 | ||||
