LS120R-SEBBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )2L

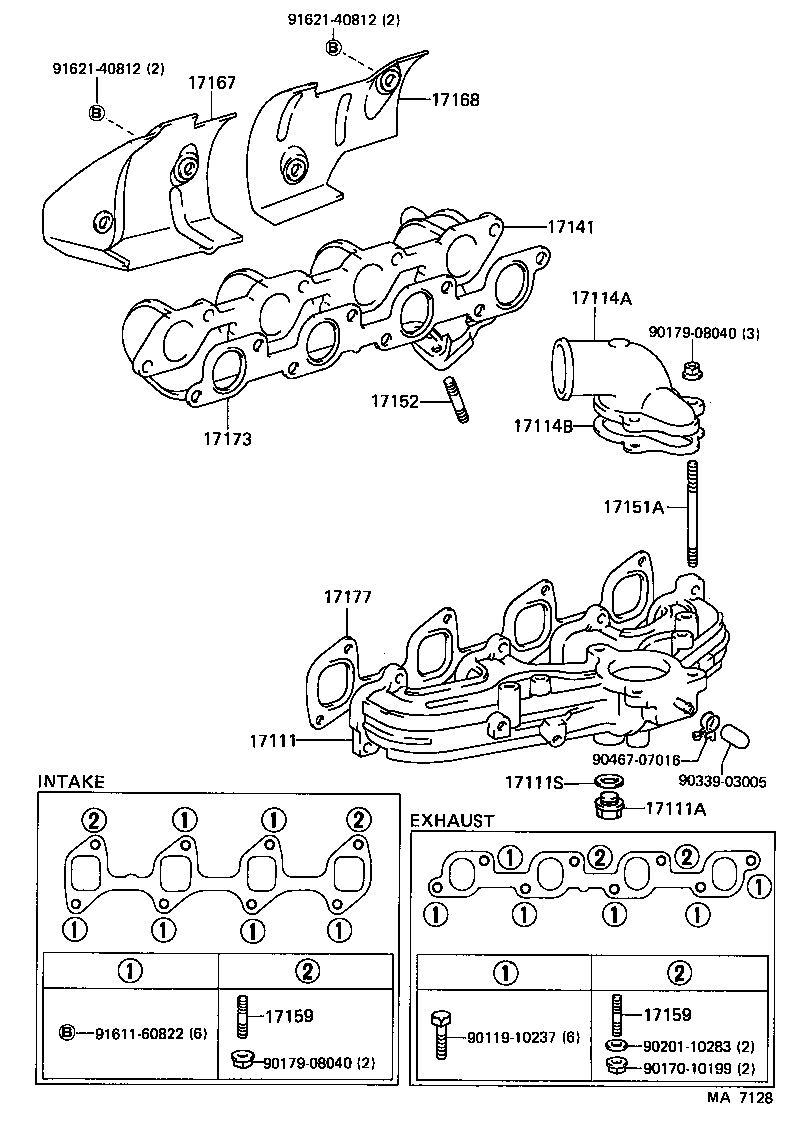

Click highlighted areas on diagram

diagram 17111 17111A 17111S 17114A 17114B 17141 17151A 17152 17159 17159 17167 17168 17173 17177 9011910237 9017010199 9017908040 9017908040 9020110283 9033903005 9046707016 9161160822 9162140812 9162140812
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-54050

2L..LS120

 1
17111A - PLUG, NO.1
90341-18015

2L..LS120

 1
17111S - GASKET(FOR MANIFOLD PLUG)
90430-18244

2L..LS120

 1
90430-18013

2L..LS120

 1
17114A - FLANGE, INTAKE
17114-54010

2L..LS120

 1
17114B - GASKET, INTAKE FLANGE
17116-54010

2L..LS120

 1
17141 - MANIFOLD, EXHAUST
17141-54040

2L..LS120

 1
17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI)
90116-08123

2L..LS120

 3
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10088

2L..LS120

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10091

2L..LS120

EXHAUST MANIFOLD SIDE

 2
90116-10141

2L..LS120

EXHAUST MANIFOLD SIDE

 2
90116-08053

2L..LS120

INTAKE MANIFOLD SIDE

 2
90116-08220

2L..LS120

INTAKE MANIFOLD SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10091

2L..LS120

EXHAUST MANIFOLD SIDE

 2
90116-10141

2L..LS120

EXHAUST MANIFOLD SIDE

 2
90116-08053

2L..LS120

INTAKE MANIFOLD SIDE

 2
90116-08220

2L..LS120

INTAKE MANIFOLD SIDE

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-54040

2L..LS120

 1
17167-54041

2L..LS120

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-54011

2L..LS120

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54011

2L..LS120

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54011

2L..LS120

 1
17177-54012

2L..LS120

 1
Common parts
90119-10237
90170-10199
90179-08040
90201-10283
90339-03005
90467-07016
91611-60822
91621-40812
