LS120L-SEJBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

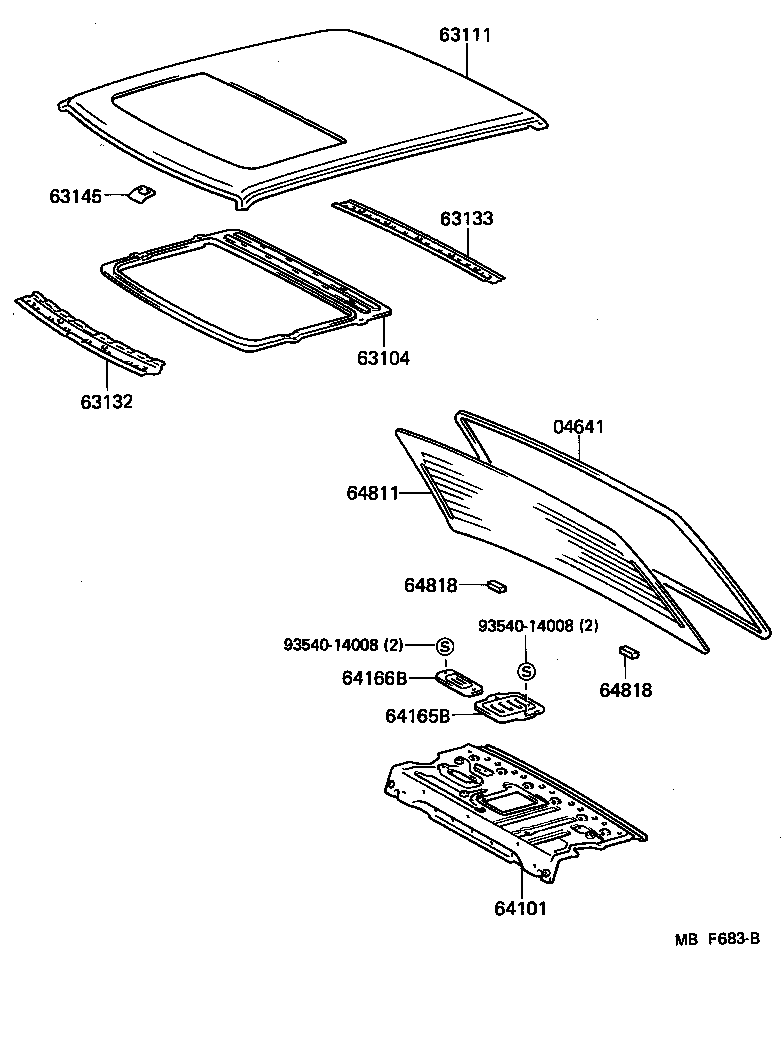

(8308- )HT,SED

Click highlighted areas on diagram

diagram 04641 63104 63111 63132 63133 63145 64101 64165B 64166B 64811 64818 64818 9354014008 9354014008
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-30040

LS120,MS12#,YS120..HT,SED

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-30050

LS120,MS12#,YS120..SED

 1
63111 - PANEL, ROOF
63111-30160

LS120,MS12#,YS120..SED

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-30120

LS120,MS12#,YS120..SED,WG

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-30110

LS120,MS12#,YS120..SED

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-30040

LS120,MS12#,YS120..SED,WG

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-30140

LS120,MS12#,YS120..SED

 1
64101-30130

LS120,MS12#,YS120..SED..(EUG,GEN,SAA,SWZ)

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-30010

LS120,MS122,123,YS120..(HT,SED)..(DLX,SAL,STD)

 1
64166B - COVER, UPPER BACK PANEL HOLE, NO.2
64166-30010

LS120,MS122,123,YS120..(HT,SED)..(DLX,SAL,STD)

 1
64811 - GLASS, BACK WINDOW
64801-30210

LS120,MS12#,YS120..SED

*EHTT,T=4.0

 1
64811-30390

LS120,MS122,YS120..SED..(SAL,STD)

*TT,T=4.0

 1
64801-30220

LS120,YS120..STD

*EHT,T=4.0

 1
64811-30400

LS120,YS120..STD

*TEM,T=4.0

 1
64818 - SPACER, BACK WINDOW GLASS
64818-30050

LS120,MS12#,YS120..HT,SED

 2
64818 - SPACER, BACK WINDOW GLASS
64818-30050

LS120,MS12#,YS120..HT,SED

 2
Common parts
93540-14008

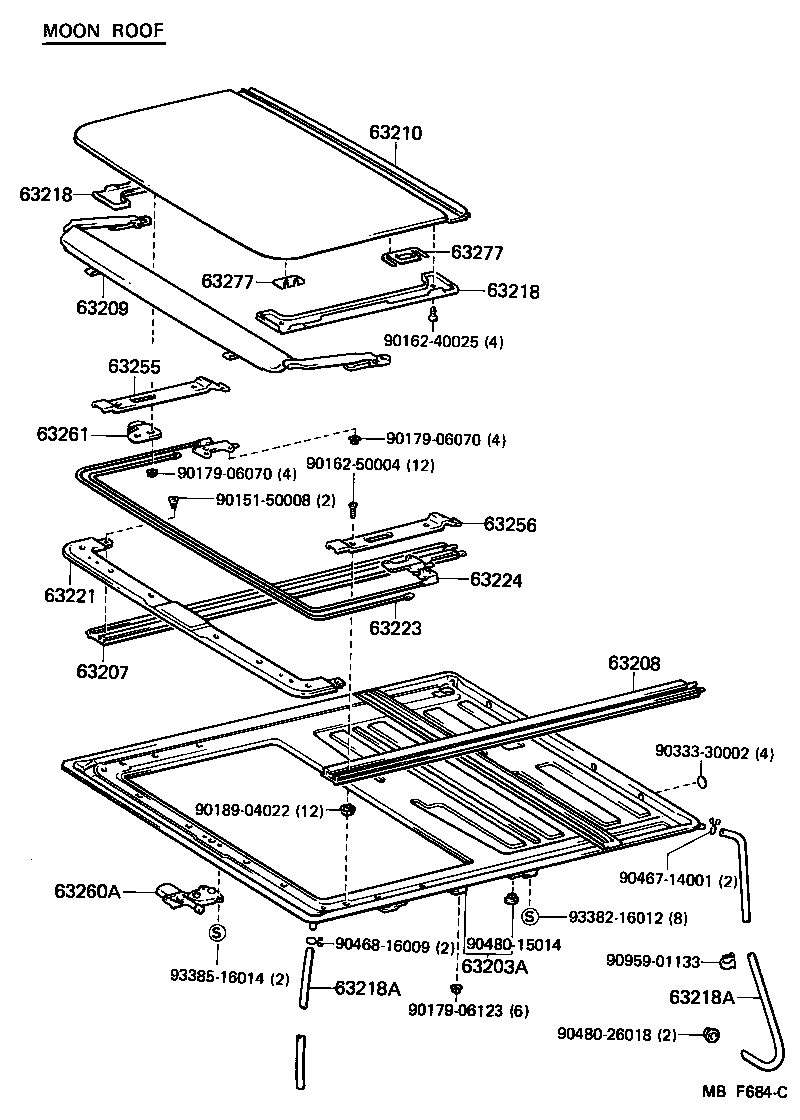

(8308- )HT,SED

Click highlighted areas on diagram

diagram 63203A 63207 63208 63209 63210 63218 63218 63218A 63218A 63221 63223 63224 63255 63256 63260A 63261 63277 63277 9015150008 9016240025 9016250004 9017906070 9017906070 9017906123 9018904022 9033330002 9046714001 9046816009 9048015014 9048026018 9095901133 9338216012 9338516014
Part # Description Qty Price
Common parts
90151-50008
90162-40025
90162-50004
90179-06070
90179-06123
90189-04022
90333-30002
90467-14001
90468-16009
90480-15014
90480-26018
90959-01133
93382-16012
93385-16014

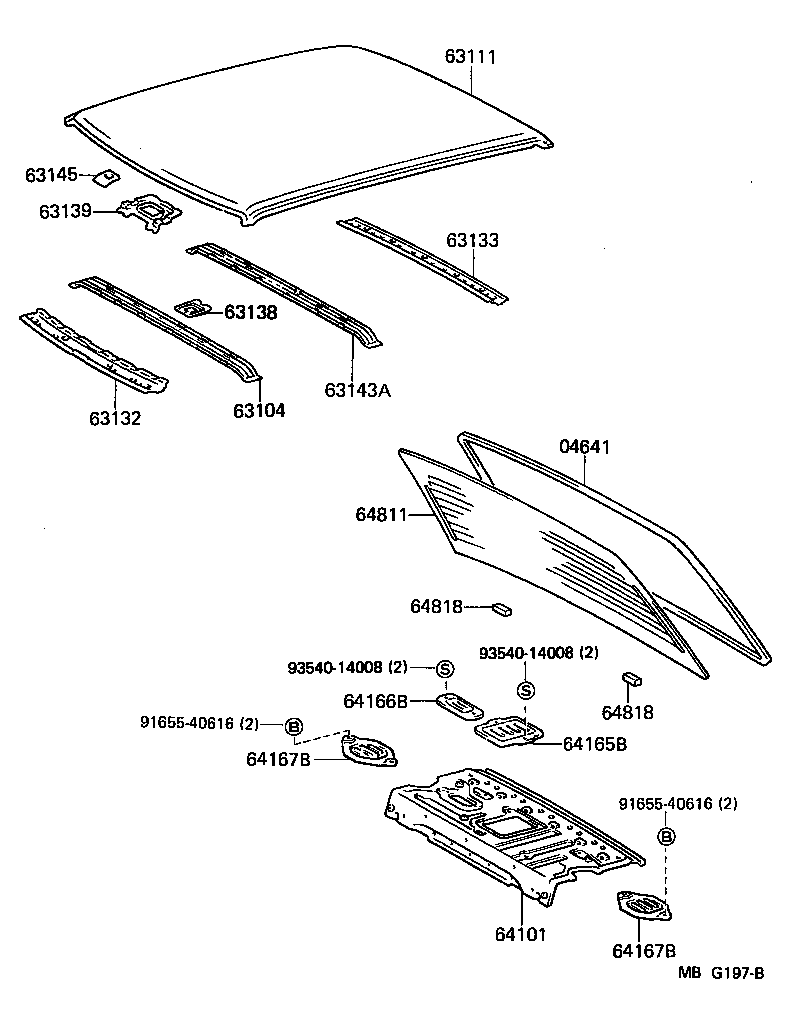

(8308- )SED

Click highlighted areas on diagram

diagram 04641 63104 63111 63132 63133 63138 63139 63143A 63145 64101 64165B 64166B 64167B 64167B 64811 64818 64818 9165540616 9165540616 9354014008 9354014008
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-30040

LS120,MS12#,YS120..HT,SED

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-30050

LS120,MS12#,YS120..SED

 1
63111 - PANEL, ROOF
63111-30160

LS120,MS12#,YS120..SED

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-30120

LS120,MS12#,YS120..SED,WG

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-30110

LS120,MS12#,YS120..SED

 1
63138 - BRACKET, DOME LAMP, NO.2
63138-30030

LS120,MS12#,YS120..SED

 1
63143A - REINFORCEMENT, ROOF PANEL
63143-30060

LS120,MS12#,YS120..SED

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-30040

LS120,MS12#,YS120..SED,WG

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-30140

LS120,MS12#,YS120..SED

 1
64101-30130

LS120,MS12#,YS120..SED..(EUG,GEN,SAA,SWZ)

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-30010

LS120,MS122,123,YS120..(HT,SED)..(DLX,SAL,STD)

 1
64166B - COVER, UPPER BACK PANEL HOLE, NO.2
64166-30010

LS120,MS122,123,YS120..(HT,SED)..(DLX,SAL,STD)

 1
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-30010

LS120,MS122,YS120..DLX,STD

 2
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-30010

LS120,MS122,YS120..DLX,STD

 2
64811 - GLASS, BACK WINDOW
64801-30210

LS120,MS12#,YS120..SED

*EHTT,T=4.0

 1
64811-30390

LS120,MS122,YS120..SED..(SAL,STD)

*TT,T=4.0

 1
64801-30220

LS120,YS120..STD

*EHT,T=4.0

 1
64811-30400

LS120,YS120..STD

*TEM,T=4.0

 1
64818 - SPACER, BACK WINDOW GLASS
64818-30050

LS120,MS12#,YS120..HT,SED

 2
64818 - SPACER, BACK WINDOW GLASS
64818-30050

LS120,MS12#,YS120..HT,SED

 2
Common parts
91655-40616
93540-14008
