LS120L-SEJBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

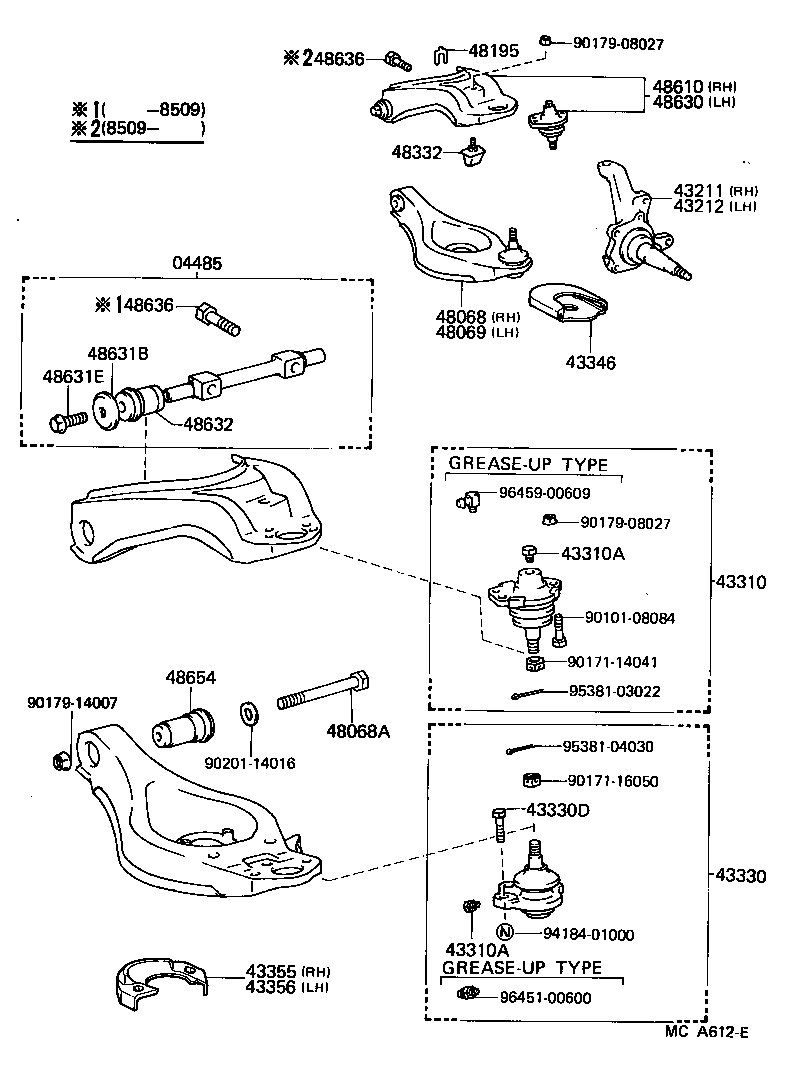

Click highlighted areas on diagram

diagram 04485 43211 43212 43310 43310A 43310A 43330 43330D 43346 43355 43356 48068 48068A 48069 48195 48332 48610 48630 48631B 48631E 48632 48636 48636 48654 9010108084 9017114041 9017116050 9017908027 9017908027 9017914007 9020114016 9418401000 9538103022 9538104030 9645100600 9645900609
Part # Description Qty Price
04485 - SHAFT KIT, UPPER SUSPENSION ARM
04485-30042

LS120,MS12#,YS120

 2
04485-30043

LS120,MS12#,YS120

 2
43211 - KNUCKLE, STEERING, RH
43211-30120

LS120,MS122,YS120..(DLX,STD)..GEN

 1
43211-30130

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
43212 - KNUCKLE, STEERING, LH
43212-30080

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
43212-30060

LS120,MS122,YS120..(DLX,STD)..GEN

 1
43310 - JOINT ASSY, UPPER BALL
43360-39065

LS120,MS12#,YS120

 2
43350-39025

LS120,MS122..(DLX,STD)..GEN

TAXI SPEC

 2
43310A - PLUG (FOR BALL JOINT)
90345-06014

LS120,MS12#,YS120

 4
43310A - PLUG (FOR BALL JOINT)
90345-06014

LS120,MS12#,YS120

 4
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-39155

LS120,MS12#,YS120

RH

 1
43340-39135

LS120,MS12#,YS120

LH

 1
43330-39145

LS120,MS122..(DLX,STD)..GEN

TAXI SPEC,RH

 1
43340-39125

LS120,MS122..(DLX,STD)..GEN

TAXI SPEC,LH

 1
43330D - BOLT (FOR FRONT LOWER BALL JOINT)
90101-10439

LS120,MS12#,YS120

 6
43346 - PROTECTOR, LOWER BALL JOINT DUST COVER
43346-30010

LS120..STD

TAXI SPEC

 2
43355 - DEFLECTOR, LOWER ARM ICE, RH
43355-30010

LS120..STD

TAXI SPEC

 1
43356 - DEFLECTOR, LOWER ARM ICE, LH
43356-30010

LS120..STD

TAXI SPEC

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-30060

LS120,MS122..(DLX,STD)..GEN

TAXI SPEC,W/POWER STEERING

 1
48068-30080

LS120,MS122..(DLX,STD)..GEN

TAXI SPEC

 1
48068-30130

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
48068-30090

LS120,MS122,YS120..(DLX,STD)..GEN

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90101-14022

LS120,MS12#,YS120

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-30060

LS120,MS122..(DLX,STD)..GEN

TAXI SPEC,W/POWER STEERING

 1
48069-30080

LS120,MS122..(DLX,STD)..GEN

TAXI SPEC

 1
48069-30090

LS120,MS122,YS120..(DLX,STD)..GEN

 1
48069-30130

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
48195 - SHIM, CAMBER ADJUST
90565-15016

LS120,MS12#,YS120

T=1.6,T=1.6

 1
90565-15018

LS120,MS12#,YS120

T=2.0,T=2.0

 1
90565-15017

LS120,MS12#,YS120

T=1.0,T=1.0

 1
48332 - BUMPER, FRONT SPRING, NO.2
48333-30010

LS120,MS12#,YS120

 2
48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH
48610-30900

LS120,MS122,YS120..(DLX,STD)..GEN

 1
48610-30020

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
48610-30040

LS120..STD

TAXI SPEC,W/POWER STEERING

 1
48610-30030

LS120..STD

TAXI SPEC

 1
48610-30902

YS120..LHD;LS120,MS122..(DLX,STD)..GEN

TAXI SPEC

 1
48610-30901

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
48610-30903

YS120..LHD;LS120,MS122..(DLX,STD)..GEN

TAXI SPEC,W/POWER STEERING

 1
48610-30010

LS120,YS120..STD

 1
48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH
48630-30010

LS120,YS120..STD

 1
48630-30900

LS120,MS122,YS120..(DLX,STD)..GEN

 1
48630-30902

YS120..LHD;LS120,MS122..(DLX,STD)..GEN

TAXI SPEC

 1
48630-30040

LS120..STD

TAXI SPEC,W/POWER STEERING

 1
48630-30903

YS120..LHD;LS120,MS122..(DLX,STD)..GEN

TAXI SPEC,W/POWER STEERING

 1
48630-30020

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
48630-30901

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
48630-30030

LS120..STD

TAXI SPEC

 1
48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
90948-02020

LS120,MS12#,YS120

 4
48631E - BOLT(FOR UPPER SUSPENSION ARM)
90105-12017

LS120,MS12#,YS120

 4
48632 - BUSH, UPPER ARM
48632-30040

LS120,MS12#,YS120

 4
48636 - BOLT, UPPER ARM SET
90105-14026

LS120,MS12#,YS120

 4
48636 - BOLT, UPPER ARM SET
90105-14026

LS120,MS12#,YS120

 4
48654 - BUSH, LOWER ARM
48654-30020

LS120,MS12#,YS120

 2
Common parts
90101-08084
90171-14041
90171-16050
90179-08027
90179-14007
90201-14016
94184-01000
95381-03022
95381-04030
96451-00600
96459-00609
