LS120L-SEJBS (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
2L
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )LS120..LHD

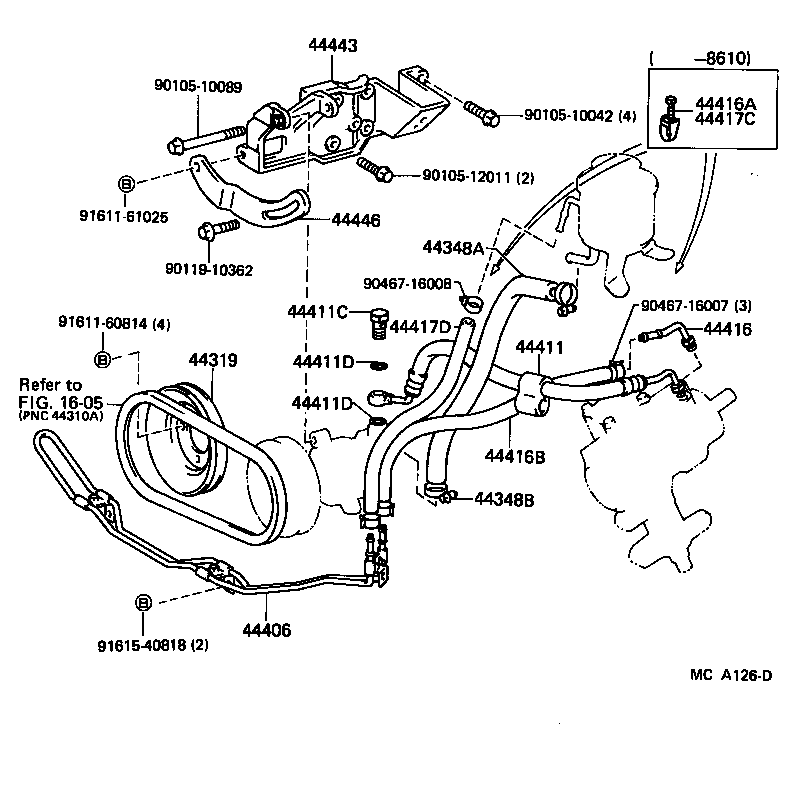

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-30030 |
LS120 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-30060 |
LS120 |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
LS120 |
2 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-30020 |
LS120..LHD |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-30290 |
LS120..LHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16005 |
LS120 |
1 | ||
| 90401-16008 |
LS120 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16242 |
LS120 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16242 |
LS120 |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-30070 |
LS120,MS12#,YS120..LHD |
1 | ||
| 44416A - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
LS120;YS120..LHD |
2 | ||
| 44416B - HOSE(FOR STEERING GEAR TO RETURN TUBE) | ||||
| 90445-18085 |
LS120..LHD |
1 | ||
| 44417C - CLAMP, RETURN TUBE HOSE | ||||
| 90460-01001 |
LS120;YS120..LHD |
2 | ||
| 44417D - HOSE(FOR RETURN TUBE TO RESERVOIR) | ||||
| 90445-18126 |
LS120 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-30080 |
LS120 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-30070 |
LS120 |
1 | ||
| Common parts | ||||
| 90105-10042 | ||||
| 90105-10089 | ||||
| 90105-12011 | ||||
| 90119-10362 | ||||
| 90467-16007 | ||||
| 90467-16008 | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91615-40818 | ||||
| Linked diagrams | ||||
| 1605 | ||||
