LS120L-SEJBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )2L..LHD

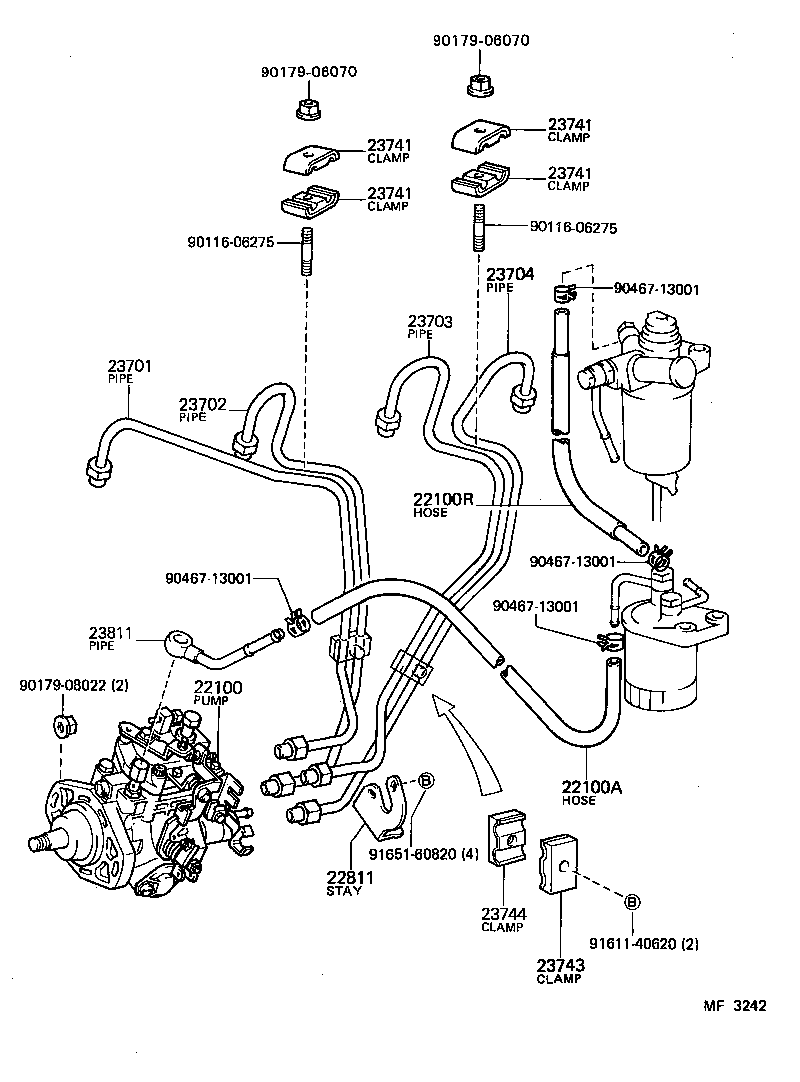

Click highlighted areas on diagram

diagram 22100 22100A 22100R 22811 23701 23702 23703 23704 23741 23741 23741 23741 23743 23744 23811 9011606275 9011606275 9017906070 9017906070 9017908022 9046713001 9046713001 9046713001 9046713001 9161140620 9165160820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-54350

2L..LS120

HIGH ALTITUDE SPEC

 1
22100-54311

2L..LS120

 1
22100-54310

2L..LS120

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95332-08030

2L..LS120..LHD

*H,L=300,ID=7.6

 1
95332-08030

2L..LS120..LHD

*H,L=280,ID=7.6

 1
90447-14037

2L..LS120..LHD

 1
22100R - HOSE, FUEL(FOR SEDIMENTER TO FILTER)
90910-05164

2L..LS120..LHD

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54040

2L..LS120

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54081

2L..LS120

 1
23701-54082

2L..LS120

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54081

2L..LS120

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54082

2L..LS120

 1
23703-54081

2L..LS120

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54081

2L..LS120

 1
23704-54082

2L..LS120

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2L..LS120

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2L..LS120

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2L..LS120

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2L..LS120

 4
23743 - CLAMP, INJECTION PIPE, NO.3
23741-54010

2L..LS120

 2
23744 - CLAMP, INJECTION PIPE, NO.4
23742-54010

2L..LS120

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54100

2L..LS120

 1
Common parts
90116-06275
90179-06070
90179-08022
90467-13001
91611-40620
91651-60820
