LS110R-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )LS110..RHD

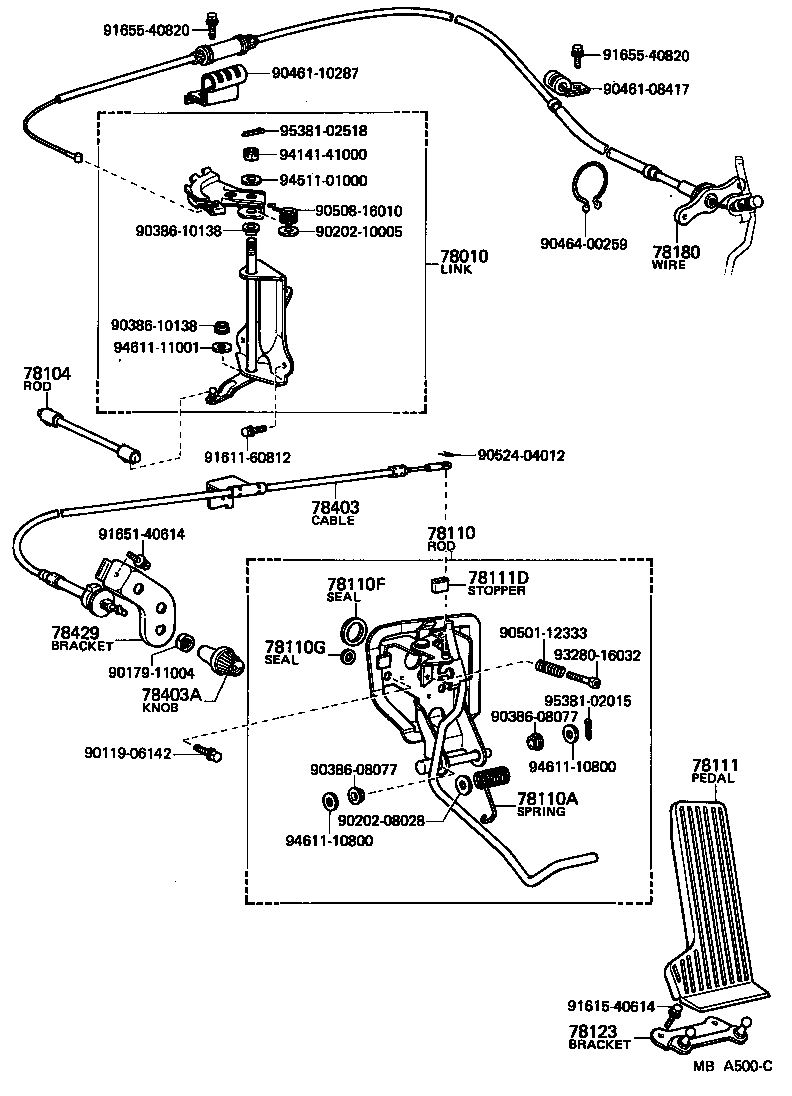

Click highlighted areas on diagram

diagram 78010 78104 78110 78110A 78110F 78110G 78111 78111D 78123 78180 78403 78403A 78429 9011906142 9017911004 9020208028 9020210005 9038608077 9038608077 9038610138 9038610138 9046108417 9046110287 9046400259 9050112333 9050816010 9052404012 9161160812 9161540614 9165140614 9165540820 9165540820 9328016032 9414141000 9451101000 9461110800 9461110800 9461111001 9538102015 9538102518
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78100-30410

LS110..MTM

 1
78100-30450

LS110..MTM

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30100

LS110

 1
78104-30120

LS110

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30230

LS110..RHD..MTM

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23026

LS110..RHD..MTM

 1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050

LS110,MS11#,RS110..RHD

 1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050

LS110,MS11#,RS110..RHD

 3
78111 - PEDAL, ACCELERATOR
78111-30080

LS110,MS11#,RS110..RHD

 1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050

LS110,MS11#,RS110..RHD

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30040

LS110,MS11#,RS110..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-30130

LS110..RHD

 1
78180-30131

LS110..RHD

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-30020

LS110..RHD

 1
78403A - KNOB, THROTTLE CONTROL
78411-30040

LS110

 1
78429 - BRACKET, THROTTLE ROD
78371-30030

LS110..RHD

 1
Common parts
90119-06142
90179-11004
90202-08028
90202-10005
90386-08077
90386-10138
90461-08417
90461-10287
90464-00259
90501-12333
90508-16010
90524-04012
91611-60812
91615-40614
91651-40614
91655-40820
93280-16032
94141-41000
94511-01000
94611-10800
94611-11001
95381-02015
95381-02518
