LS110LG-SWMBSW (1979)
Toyota Crown
(7909- )LHD..BTP,DLX,SAL

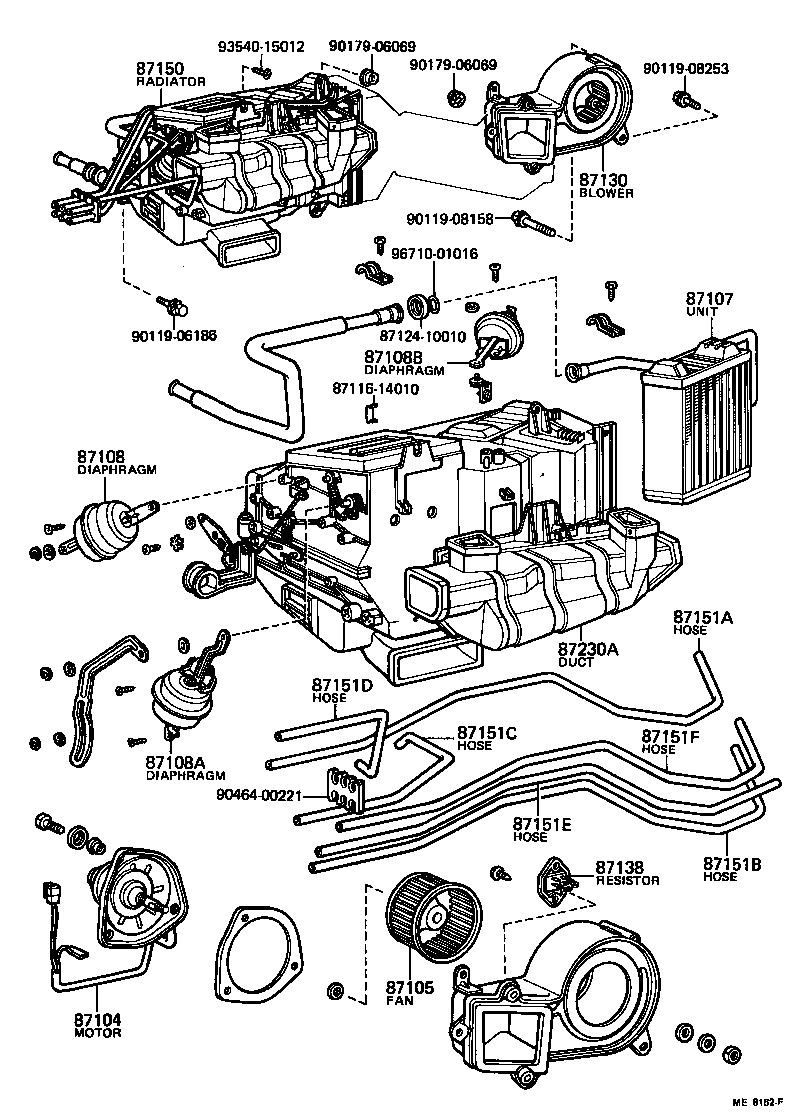

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-30320 |
LS110,MS11#,RS110..LHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87134-30020 |
LS110,MS11#,RS110..LHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30320 |
LS110,MS11#..LHD |
1 | ||
| 87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL | ||||
| 87108-30310 |
LS110,MS11# |
1 | ||
| 87108A - DIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL | ||||
| 87108-30330 |
LS110,MS11#,RS110..LHD |
1 | ||
| 87108B - DIAPHRAGM SUB-ASSY, BI-LEVEL DOOR CONTROL | ||||
| 87108-30350 |
LS110,MS11#..LHD |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-30330 |
LS110,MS11#,RS110..LHD..(BTP,DLX,SAL) |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-30260 |
LS110,MS11#,RS110..BTP,DLX,SAL |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-30320 |
LS110,MS11#..LHD..(BTP,DLX,SAL) |
1 | ||
| 87150-30321 |
LS110,MS112..LHD..(BTP,DLX,SAL) |
1 | ||
| 87151A - HOSE, VACUUM, A | ||||
| 90445-06006 |
LS110,MS11#,RS110..BTP,DLX,SAL NO.2,L=1000 |
1 | ||
| 90445-06043 |
LS110,MS112,RS110 NO.2,L=1000 |
1 | ||
| 90445-06007 |
LS110,MS11#,RS110 NO.2,L=1000 |
1 | ||
| 87151B - HOSE, VACUUM, B | ||||
| 90445-06010 |
LS110,MS11#,RS110..LHD..(BTP,DLX,SAL) NO.3,L=1500 |
1 | ||
| 90445-06051 |
LS110,MS112..LHD..(BTP,DLX,SAL) NO.3,L=1500 |
1 | ||
| 87151C - HOSE, VACUUM, C | ||||
| 90445-06033 |
LS110,MS112..BTP,DLX,SAL NO.5,L=275 |
1 | ||
| 90445-06011 |
LS110,MS11#..BTP,DLX,SAL NO.5,L=275 |
1 | ||
| 87151D - HOSE, VACUUM, D | ||||
| 90445-06034 |
LS110,MS112,RS110..BTP,DLX,SAL NO.6,L=350 |
1 | ||
| 90445-06013 |
LS110,MS11#,RS110..BTP,DLX,SAL NO.6,L=350 |
1 | ||
| 90445-06059 |
LS110,MS112,RS110..BTP,DLX,SAL NO.6,L=310 |
1 | ||
| 87151E - HOSE, VACUUM, E | ||||
| 90445-06015 |
LS110,MS11#,RS110 NO.7,L=1300 |
1 | ||
| 90445-06049 |
LS110,MS112,RS110 NO.7,L=1300 |
1 | ||
| 87151F - HOSE, VACUUM, F | ||||
| 90445-06037 |
LS110,MS112..BTP,DLX,SAL NO.10,L=530 |
1 | ||
| 90445-06017 |
LS110,MS11#..BTP,DLX,SAL NO.10,L=530 |
1 | ||
| 87230A - DUCT ASSY, HEATER AIR | ||||
| 87201-30370 |
LS110,MS11#,RS110..LHD |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 87124-10010 | ||||
| 90119-06186 | ||||
| 90119-08158 | ||||
| 90119-08253 | ||||
| 90179-06069 | ||||
| 90464-00221 | ||||
| 93540-15012 | ||||
| 96710-01016 | ||||
