LS110LG-SWMBSW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )LHD..MTM

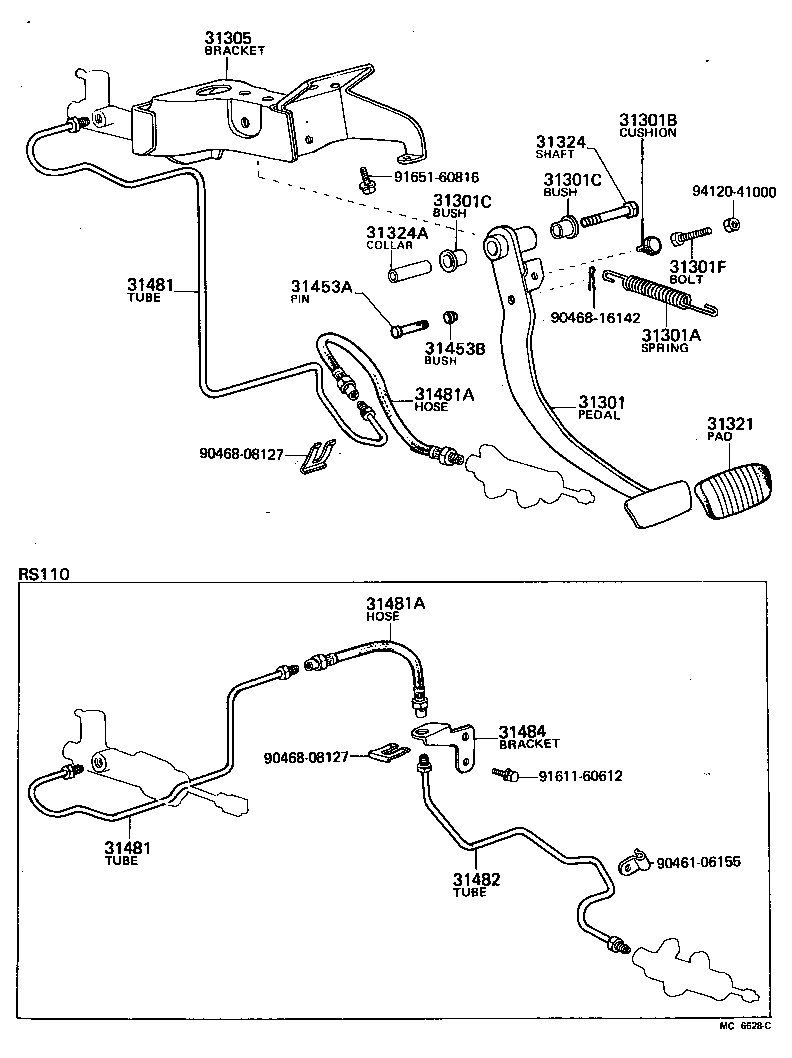

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31453A 31453B 31481 31481 31481A 31481A 31482 31484 9046106155 9046808127 9046808127 9046816142 9161160612 9165160816 9412041000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-30140

LS110,MS11#,RS110..LHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-12026

LS110,MS11#,RS110..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

LS110,MS11#,RS110..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

LS110,MS11#,RS110..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

LS110,MS11#,RS110..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

LS110,MS11#,RS110..MTM

 1
90101-10074

LS110,MS11#,RS110..LHD..MTM

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-30100

LS110,MS11#,RS110..LHD..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-30040

LS110,MS11#,RS110..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

LS110,MS11#,RS110..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

LS110,MS11#,RS110..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08028

LS110..MTM

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08010

LS110,MS11#,RS110..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-30100

LS110,MS11#..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-30100

LS110,MS11#..LHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96940-33005

LS110,MS11#..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96940-33005

LS110,MS11#..MTM

 1
Common parts
90461-06155
90468-08127
90468-16142
91611-60612
91651-60816
94120-41000
