LS110LG-SWKBS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

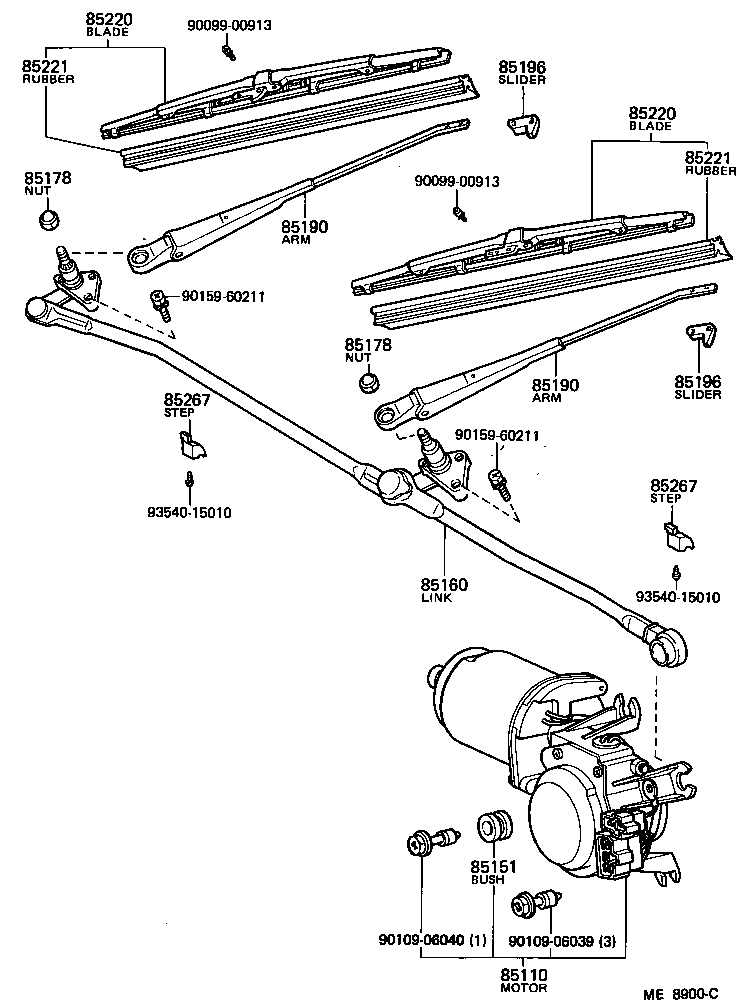

Click highlighted areas on diagram

diagram 85110 85151 85160 85178 85178 85190 85190 85196 85196 85220 85220 85221 85221 85267 85267 9009900913 9009900913 9010906039 9010906040 9015960211 9015960211 9354015010 9354015010
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30150

LS110,MS11#,RS110..LHD

 1
85110-30151

LS110,MS112,RS110..LHD

 1
85151 - BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER
85151-22070

LS110,MS11#,RS110

 4
85160 - LINK ASSY, WINDSHIELD WIPER
85160-30110

LS110,MS11#,RS110..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08017

LS110,MS11#,RS110

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08017

LS110,MS11#,RS110

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-30230

LS110,MS11#,RS110..LHD

ASSIST SIDE

 1
85190-30220

LS110,MS11#,RS110..LHD

DRIVER SIDE

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-30230

LS110,MS11#,RS110..LHD

ASSIST SIDE

 1
85190-30220

LS110,MS11#,RS110..LHD

DRIVER SIDE

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30190

LS110,MS11#,RS110..LHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30190

LS110,MS11#,RS110..LHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-14180

LS110,MS11#,RS110..LHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-14180

LS110,MS11#,RS110..LHD

 2
Common parts
90099-00913
90109-06039
90109-06040
90159-60211
93540-15010
