LS110LG-SWKBS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

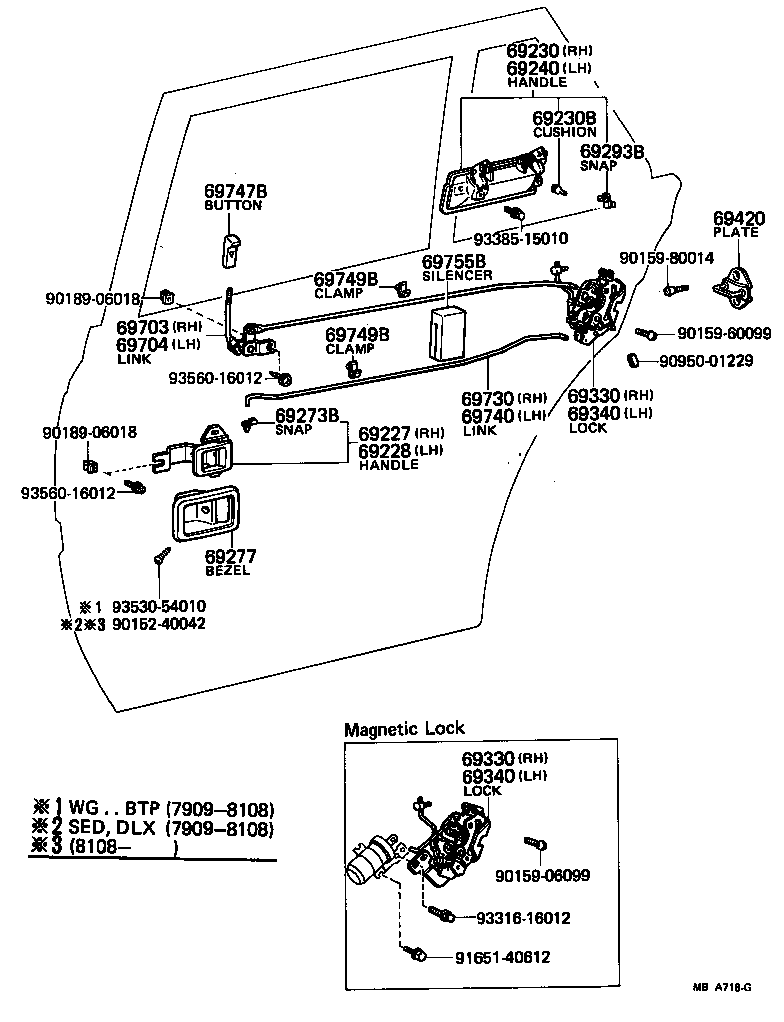

Click highlighted areas on diagram

diagram 69227 69228 69230 69230B 69240 69273B 69277 69293B 69330 69330 69340 69340 69420 69703 69704 69730 69740 69747B 69749B 69749B 69755B 9015240042 9015906099 9015960099 9015980014 9018906018 9018906018 9095001229 9165140612 9331616012 9338515010 9353054010 9356016012 9356016012
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69205-30010

LS110,MS11#,RS110

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69206-30010

LS110,MS11#,RS110

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69220-30080

LS110,MS11#,RS110

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021

LS110,MS11#,RS110

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-30080

LS110,MS11#,RS110

 1
69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
69288-12010

LS110,MS11#,RS110

LH

 1
69279-12020

LS110,MS11#,RS110

RH

 1
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69277-1604015

LS110,MS11#..WG..BTP

GREIGE,BEIGE,TRIM4#

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-30090

LS110,MS11#,RS110..BTP

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-30090

LS110,MS11#,RS110..BTP

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-30090

LS110,MS11#,RS110..BTP

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-30090

LS110,MS11#,RS110..BTP

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-12040

LS110,MS11#,RS110

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-30070

LS110,MS11#,RS110

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-30040

LS110,MS11#,RS110

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-30040

LS110,MS11#,RS110

 1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-30040

LS110,MS11#,RS110

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-3002002

LS110,MS11#,RS110

DARK WINE,RED/MAROON,TRIM3#

 2
69741-3002004

LS110,MS11#,RS110

BLUE,BLUE,TRIM8#

 2
69741-3002005

LS110,MS11#,RS110

GREIGE,BEIGE,TRIM4#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

LS110,MS11#,RS110

 4
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

LS110,MS11#,RS110

 4
69755B - SILENCER, REAR DOOR LOCK LINK
69759-30021

LS110,MS11#,RS110

 2
Common parts
90152-40042
90159-06099
90159-60099
90159-80014
90189-06018
90950-01229
91651-40612
93316-16012
93385-15010
93530-54010
93560-16012
