LS110LG-SWKBS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

Click highlighted areas on diagram

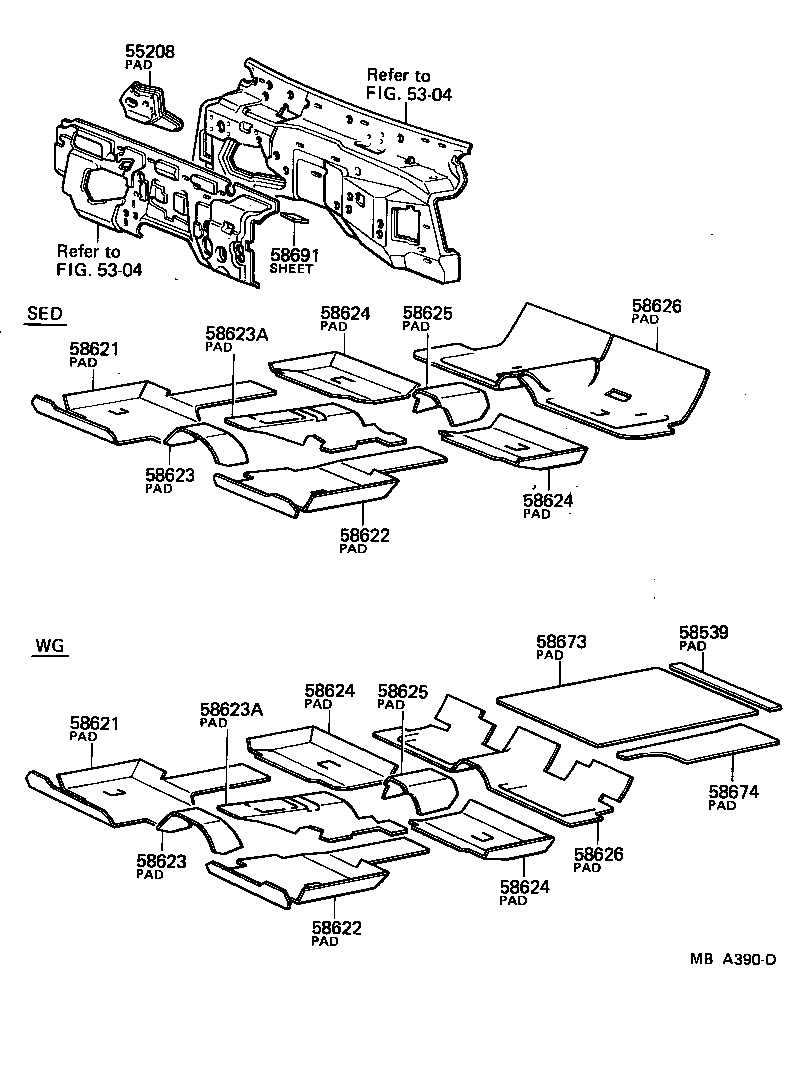

diagram 5304 5304 55208 58539 58621 58621 58622 58622 58623 58623 58623A 58623A 58624 58624 58624 58624 58625 58625 58626 58626 58673 58674 58691
Part # Description Qty Price
55208 - PAD SUB-ASSY, DASH PANEL SILENCER, CENTER NO.1
55213-30180

LS110,MS11#,RS110..LHD

 1
58621 - PAD, FLOOR SILENCER, FRONT RH
58621-30110

LS110,MS11#,RS110..BTP..GEN

 1
58621 - PAD, FLOOR SILENCER, FRONT RH
58621-30110

LS110,MS11#,RS110..BTP..GEN

 1
58622 - PAD, FLOOR SILENCER, FRONT LH
58622-30090

LS110,MS11#,RS110..BTP..GEN

 1
58622 - PAD, FLOOR SILENCER, FRONT LH
58622-30090

LS110,MS11#,RS110..BTP..GEN

 1
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58623-30170

LS110,MS11#,RS110..BTP..GEN

 1
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58623-30170

LS110,MS11#,RS110..BTP..GEN

 1
58623A - PAD, FRONT FLOOR SILENCER, CENTER
58626-30040

LS110,MS11#,RS110..BTP..GEN

 1
58623A - PAD, FRONT FLOOR SILENCER, CENTER
58626-30040

LS110,MS11#,RS110..BTP..GEN

 1
58624 - PAD, FLOOR SILENCER, REAR SIDE
58627-91703

LS110,MS111..WG..BTP..GEN

 2
58624 - PAD, FLOOR SILENCER, REAR SIDE
58627-91703

LS110,MS111..WG..BTP..GEN

 2
58624 - PAD, FLOOR SILENCER, REAR SIDE
58627-91703

LS110,MS111..WG..BTP..GEN

 2
58624 - PAD, FLOOR SILENCER, REAR SIDE
58627-91703

LS110,MS111..WG..BTP..GEN

 2
58625 - PAD, FLOOR SILENCER, REAR CENTER
58629-30020

LS110,MS11#,RS110..BTP..GEN

 1
58625 - PAD, FLOOR SILENCER, REAR CENTER
58629-30020

LS110,MS11#,RS110..BTP..GEN

 1
58626 - PAD, FLOOR SILENCER, REAR
58657-91702

LS110,MS11#..WG

 1
58626 - PAD, FLOOR SILENCER, REAR
58657-91702

LS110,MS11#..WG

 1
58673 - PAD, REAR FLOOR SILENCER, NO.1
58676-91701

LS110,MS11#..WG..BTP

 1
58674 - PAD, REAR FLOOR SILENCER, NO.2
58674-91701

LS110,MS11#..WG..BTP

 1
Linked diagrams
5304
