LS110LG-SWKBS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

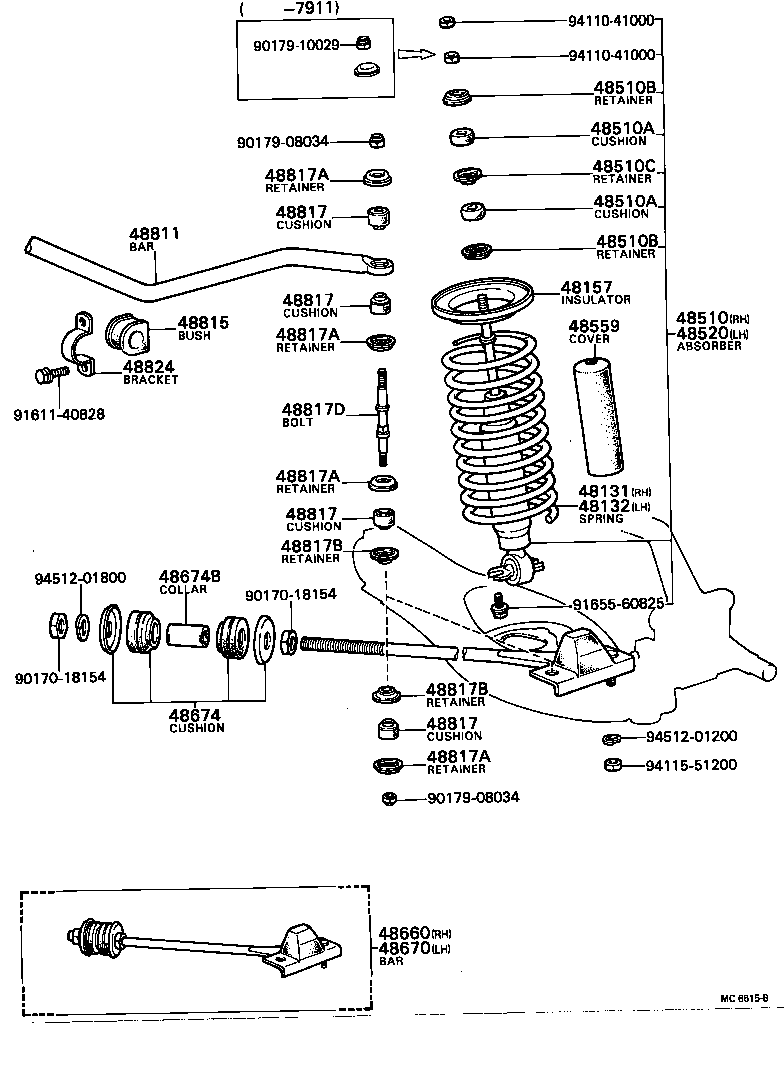

Click highlighted areas on diagram

diagram 48131 48132 48157 48510 48510A 48510A 48510B 48510B 48510C 48520 48559 48660 48670 48674 48674B 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817B 48817D 48824 9017018154 9017018154 9017908034 9017908034 9017910029 9161140828 9165560825 9411041000 9411041000 9411551200 9451201200 9451201800
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-30440

LS110,MS111..WG..GEN

 1
48132 - SPRING, FRONT COIL, LH
48131-30440

LS110,MS111..WG..GEN

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-30020

LS110,MS11#,RS110

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-39285

LS110,MS11#..WG..GEN

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LS110,MS11#,RS110

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LS110,MS11#,RS110

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

LS110,MS11#,RS110

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

LS110,MS11#,RS110

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02017

LS110,MS11#,RS110

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-39285

LS110,MS11#..WG..GEN

 1
48660 - BAR ASSY, STRUT, RH
48660-39055

LS110,MS11#,RS110

 1
48670 - BAR ASSY, STRUT, LH
48670-39055

LS110,MS11#,RS110

 1
48674 - CUSHION, STRUT BAR
48674-39045

LS110,MS11#,RS110

 2
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18129

LS110,MS11#,RS110

 2
48811 - BAR, STABILIZER, FRONT
48811-30170

LS110,MS11#..(BTP,DLX)..GEN

OD=23

 1
48811-30150

LS110,MS11#..GEN

OD=24,W/POWER STEERING

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-30050

LS110,MS11#

ID=24

 2
48815-30050

LS110,MS112

ID=24

 2
48815-30050

LS110,MS112

ID=24

 2
48817 - CUSHION, FRONT STABILIZER
48817-30010

LS110,MS11#

 8
48817 - CUSHION, FRONT STABILIZER
48817-30010

LS110,MS11#

 8
48817 - CUSHION, FRONT STABILIZER
48817-30010

LS110,MS11#

 8
48817 - CUSHION, FRONT STABILIZER
48817-30010

LS110,MS11#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

LS110,MS11#,RS110

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

LS110,MS11#,RS110

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

LS110,MS11#,RS110

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

LS110,MS11#,RS110

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02015

LS110,MS11#,RS110

 4
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02015

LS110,MS11#,RS110

 4
48817D - BOLT(FOR FRONT STABILIZER)
48819-30020

LS110,MS11#,RS110

 2
48824 - BRACKET, STABILIZER, FRONT
48824-30030

LS110,MS11#,RS110

 2
Common parts
90170-18154
90179-08034
90179-10029
91611-40828
91655-60825
94110-41000
94115-51200
94512-01200
94512-01800
