LS110L-SEKDS (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )LS110

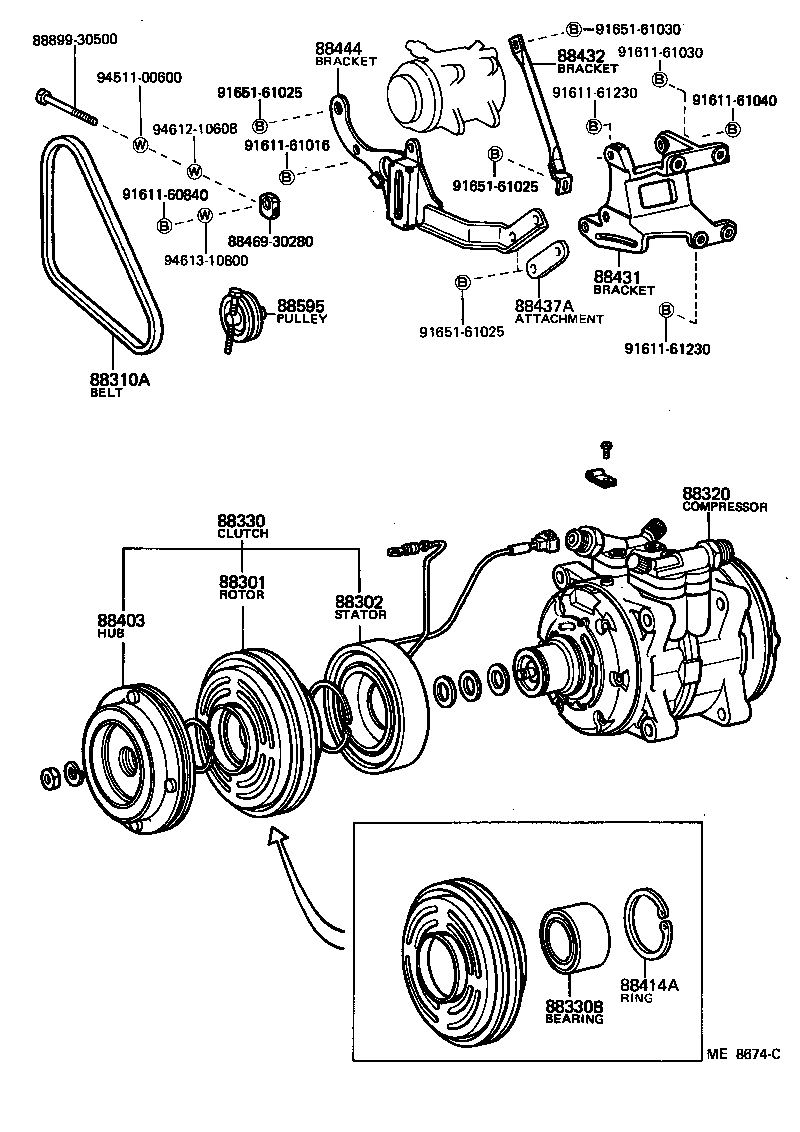

Click highlighted areas on diagram

diagram 88301 88302 88310A 88320 88330 88330B 88403 88414A 88431 88432 88437A 88444 8846930280 88595 8889930500 9161160840 9161161016 9161161030 9161161040 9161161230 9161161230 9165161025 9165161025 9165161025 9165161030 9451100600 9461210608 9461310800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

LS110

 1
88412-26010

LS110

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-30360

LS110

 1
88411-30380

LS110

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-11270

LS110

 1
88320 - COMPRESSOR ASSY, COOLER
88320-30310

LS110

 1
88330 - CLUTCH ASSY, MAGNET
88410-30340

LS110

 1
88410-30380

LS110

 1
88330B - BEARING, MAGNET CLUTCH
90099-10127

LS110

 2
90099-10133

LS110

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14030

LS110

 1
88403-22030

LS110

 1
88414A - RING, SHIELD SNAP
90099-07094

LS110

 1
90099-07114

LS110

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-30400

LS110

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88434-30321

LS110

 1
88437A - ATTACHMENT, COMPRESSOR
88437-22050

LS110

 1
88444 - BRACKET, IDLE PULLEY
88444-22040

LS110

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-25010

LS110

 1
Common parts
88469-30280
88899-30500
91611-60840
91611-61016
91611-61030
91611-61040
91611-61230
91651-61025
91651-61030
94511-00600
94612-10608
94613-10800

(7909- )LS110

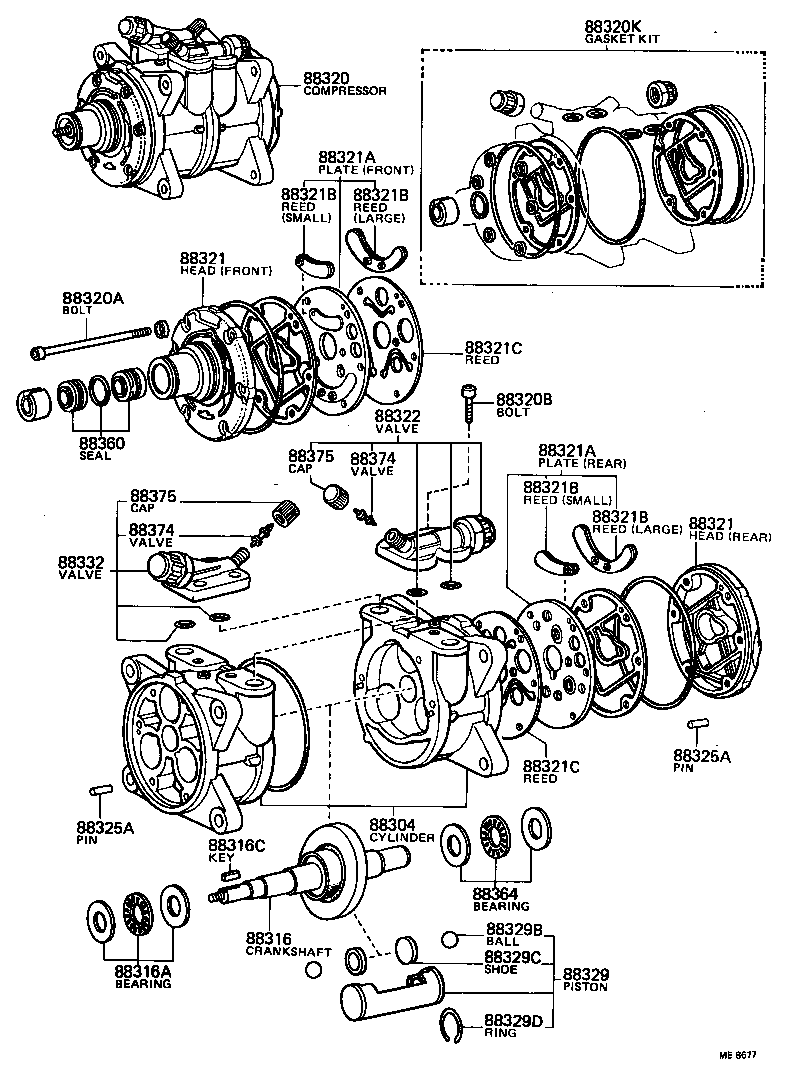

Click highlighted areas on diagram

diagram 88304 88316 88316A 88316C 88320 88320A 88320B 88320K 88321 88321 88321A 88321A 88321B 88321B 88321B 88321B 88321C 88321C 88322 88325A 88325A 88329 88329B 88329C 88329D 88332 88360 88364 88374 88374 88375 88375
Part # Description Qty Price
88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-22010

LS110

 1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-30270

LS110,MS11#

 1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-20050

LS110

 1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13011

LS110,MS11#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-30310

LS110

 1
88320A - BOLT, THROUGH
90099-04926

LS110

 6
88320B - BOLT, SERVICE VALVE
90099-04905

LS110,MS11#

 1
88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL
04881-14030

LS110

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-20040

LS110

RR

 1
88321-20061

LS110

FR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-20040

LS110

RR

 1
88321-20061

LS110

FR

 1
88321A - PLATE SUB-ASSY, VALVE
88306-20040

LS110

RR

 1
88305-20070

LS110

FR

 1
88321A - PLATE SUB-ASSY, VALVE
88306-20040

LS110

RR

 1
88305-20070

LS110

FR

 1
88321B - REED SUB-ASSY, VALVE
88307-20050

LS110

SMALL

 2
88307-20060

LS110

LARGE

 2
88321B - REED SUB-ASSY, VALVE
88307-20050

LS110

SMALL

 2
88307-20060

LS110

LARGE

 2
88321B - REED SUB-ASSY, VALVE
88307-20050

LS110

SMALL

 2
88307-20060

LS110

LARGE

 2
88321B - REED SUB-ASSY, VALVE
88307-20050

LS110

SMALL

 2
88307-20060

LS110

LARGE

 2
88321C - REED, SUCTION VALVE
88343-20040

LS110

 1
88321C - REED, SUCTION VALVE
88343-20040

LS110

 1
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-30310

LS110

 1
88325A - PIN, CYLINDER BLOCK
90099-08058

LS110,MS11#

 4
88325A - PIN, CYLINDER BLOCK
90099-08058

LS110,MS11#

 4
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-20050

LS110

 3
88329B - BALL, PISTON
88312-30250

LS110,MS11#

 6
88329C - SHOE, PISTON
88313-20070

LS110,MS11#

 6
88329D - RING, PISTON
88317-20030

LS110

 6
88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE
88372-30320

LS110

 1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-30270

LS110,MS11#

 1
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88366-20050

LS110

 1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

LS110,MS11#,RS110

 2
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

LS110,MS11#,RS110

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30260

LS110,MS11#,RS110

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30260

LS110,MS11#,RS110

 2
