LS110L-SEKDS (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
L
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )LS110

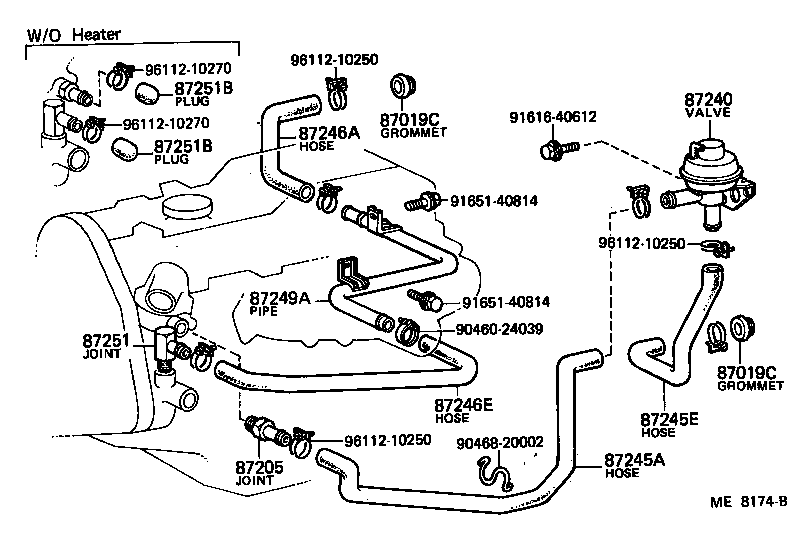

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-31007 |
LS110,MS11#,RS110 HEATER PIPE |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-31007 |
LS110,MS11#,RS110 HEATER PIPE |
2 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30200 |
LS110,MS11#,RS110 W/HEATER |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-30271 |
LS110,MS11#..BTP,DLX,SAL |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-30701 |
LS110 |
1 | ||
| 87245-30700 |
LS110 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-30750 |
LS110,MS11#,RS110..LHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-30780 |
LS110..LHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-30630 |
LS110 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-30010 |
LS110 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30230 |
LS110 |
1 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LS110,MS112,RS110..(BTP,DLX,SAL)..GEN W/BOOST VENTILATOR |
2 | ||
| 90339-16007 |
LS110,MS11#..(BTP,DLX,SAL)..GEN W/BOOST VENTILATOR |
2 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LS110,MS112,RS110..(BTP,DLX,SAL)..GEN W/BOOST VENTILATOR |
2 | ||
| 90339-16007 |
LS110,MS11#..(BTP,DLX,SAL)..GEN W/BOOST VENTILATOR |
2 | ||
| Common parts | ||||
| 90460-24039 | ||||
| 90468-20002 | ||||
| 91616-40612 | ||||
| 91651-40814 | ||||
| 96112-10250 | ||||
| 96112-10270 | ||||
