LS110L-SEKDS (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
L
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )LS110..LHD

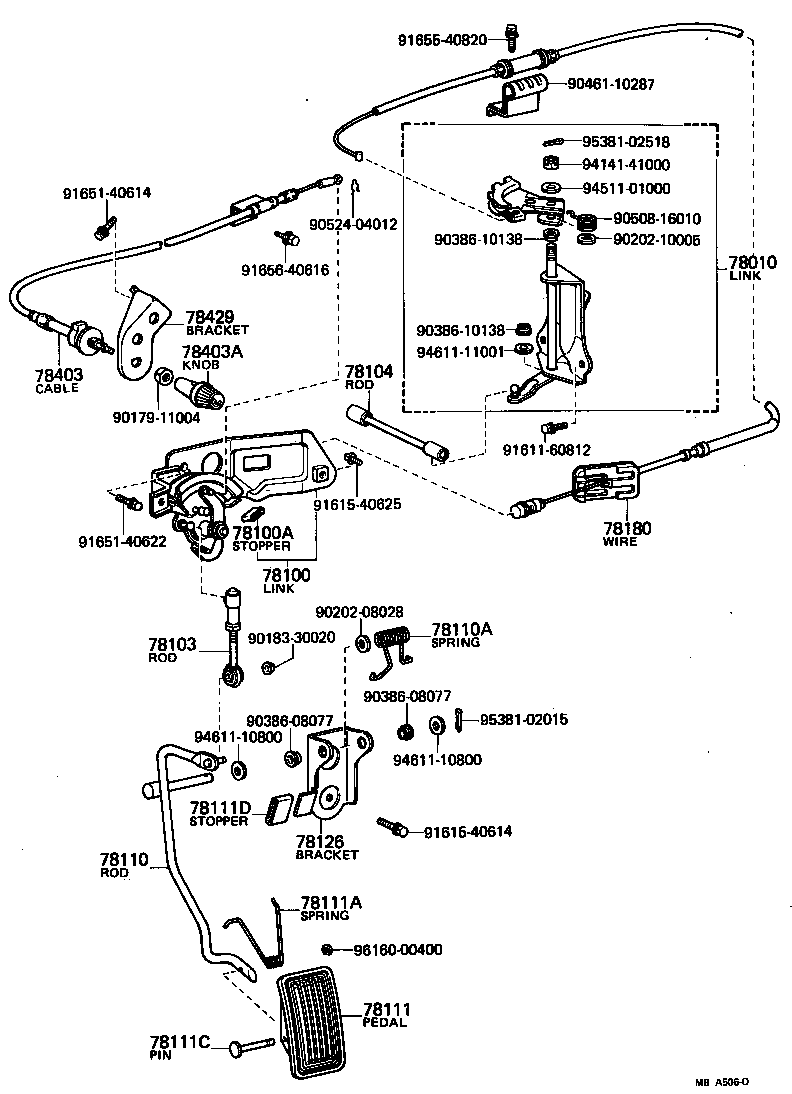

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78100-30410 |
LS110..MTM |
1 | ||
| 78100-30450 |
LS110..MTM |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-30440 |
LS110..LHD |
1 | ||
| 78100A - STOPPER, ACCELERATOR LINK | ||||
| 78118-12010 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-30220 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-30100 |
LS110 |
1 | ||
| 78104-30120 |
LS110 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78102-30130 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-35008 |
LS110..LHD..MTM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-16002 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78111D - STOPPER (FOR ACCELERATOR PEDAL) | ||||
| 78119-30040 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78126 - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 78124-30050 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-30120 |
LS110..LHD |
1 | ||
| 78180-30121 |
LS110..LHD |
1 | ||
| 78403 - CABLE SUB-ASSY, THROTTLE CONTROL | ||||
| 78401-30030 |
LS110..LHD |
1 | ||
| 78403A - KNOB, THROTTLE CONTROL | ||||
| 78411-30040 |
LS110 |
1 | ||
| 78429 - BRACKET, THROTTLE ROD | ||||
| 78371-30040 |
LS110..LHD |
1 | ||
| Common parts | ||||
| 90179-11004 | ||||
| 90183-30020 | ||||
| 90202-08028 | ||||
| 90202-10005 | ||||
| 90386-08077 | ||||
| 90386-10138 | ||||
| 90461-10287 | ||||
| 90508-16010 | ||||
| 90524-04012 | ||||
| 91611-60812 | ||||
| 91615-40614 | ||||
| 91615-40625 | ||||
| 91651-40614 | ||||
| 91651-40622 | ||||
| 91655-40820 | ||||
| 91656-40616 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-10800 | ||||
| 94611-11001 | ||||
| 95381-02015 | ||||
| 95381-02518 | ||||
| 96160-00400 | ||||
