LS110L-SEKDS (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )LS110..LHD

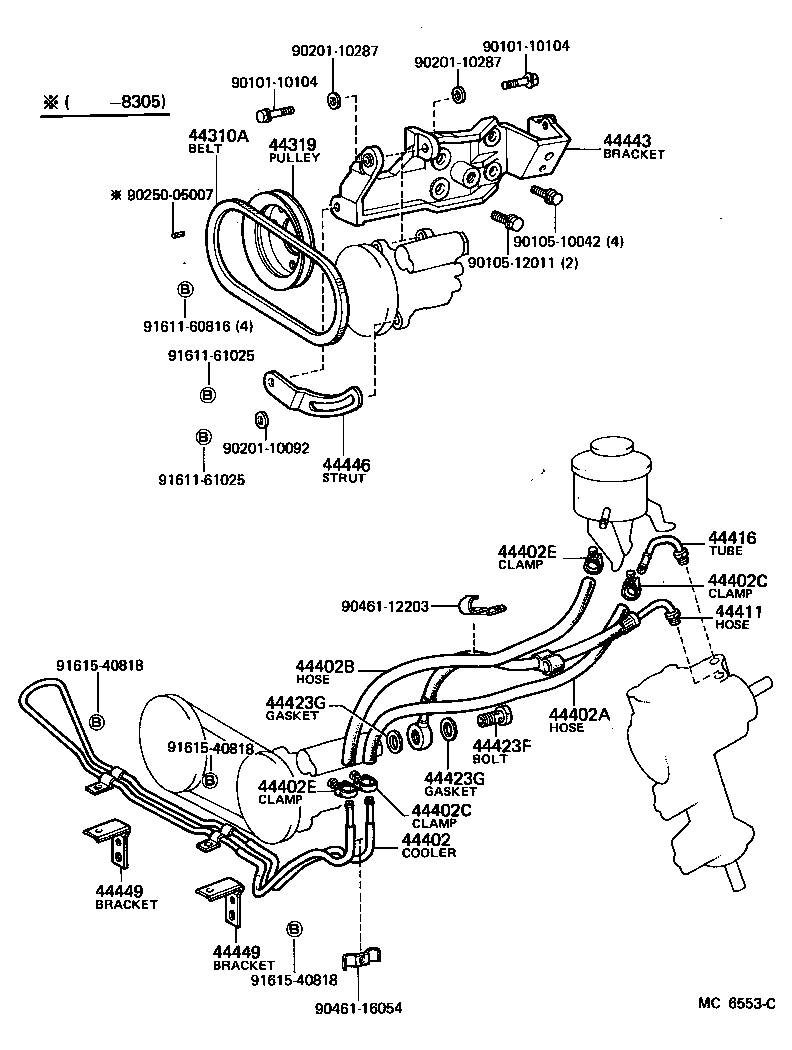

Click highlighted areas on diagram

diagram 44310A 44319 44402 44402A 44402B 44402C 44402C 44402E 44402E 44411 44416 44423F 44423G 44423G 44443 44446 44449 44449 9010110104 9010110104 9010510042 9020110092 9020110287 9020110287 9025005007 9046112203 9046116054 9161160816 9161161025 9161161025 9161540818 9161540818 9161540818 9610512011
Part # Description Qty Price
44310A - BELT, V(FOR VANE PUMP)
90916-02080

LS110

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-30011

LS110

 1
44319-30010

LS110

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44417-30041

LS110..LHD

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18085

LS110..LHD

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90445-18064

LS110

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

LS110,MS11#

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

LS110,MS11#

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

LS110,MS11#

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

LS110,MS11#

 2
44411 - HOSE, PRESSURE FEED
44411-30140

LS110..LHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30050

LS110,MS11#..LHD

 1
44423F - BOLT, UNION
90401-16005

LS110

 1
90401-16004

LS110

 1
44423G - GASKET, UNION BOLT
90430-16242

LS110

 2
44423G - GASKET, UNION BOLT
90430-16242

LS110

 2
44443 - BRACKET, PUMP
44443-30060

LS110

 1
44446 - STRUT, ADJUSTING
44446-30050

LS110

 1
44449 - BRACKET, PRESSURE FEED HOSE SUPPORT, NO.2
44448-30050

LS110

 2
44449 - BRACKET, PRESSURE FEED HOSE SUPPORT, NO.2
44448-30050

LS110

 2
Common parts
90101-10104
90105-10042
90201-10092
90201-10287
90250-05007
90461-12203
90461-16054
91611-60816
91611-61025
91615-40818
96105-12011
