YX72R-XEMRSN (1988)

Toyota Cressida Wagon

Production Dec 1988 - May 1992
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8810-9302)

Click highlighted areas on diagram

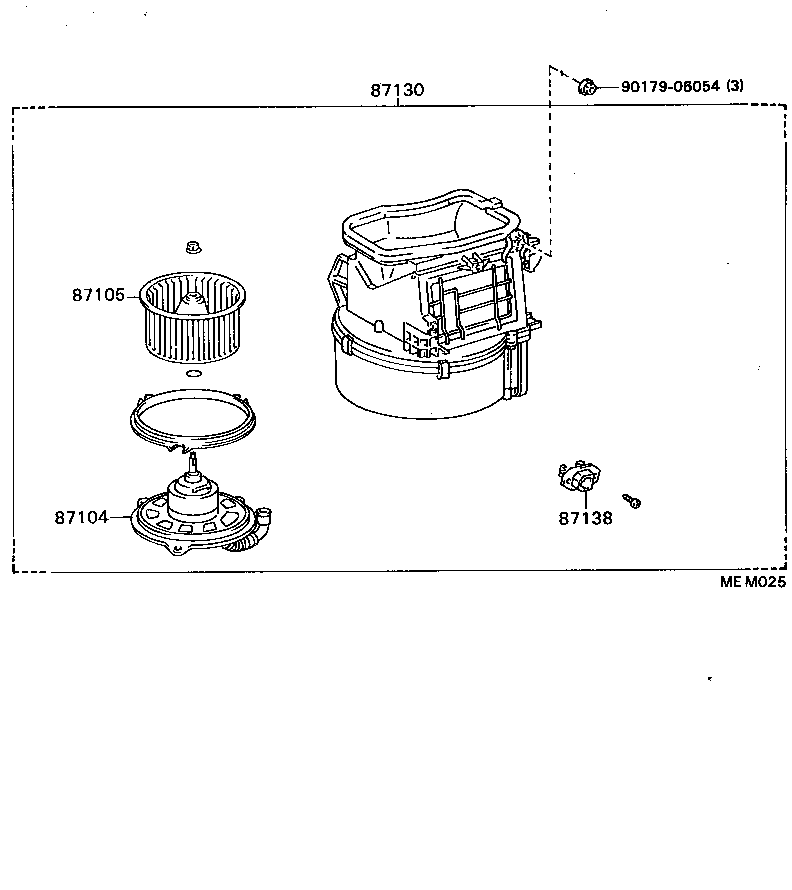

BLOWER

diagram 87104 87105 87130 87138 9017906054
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22150

GX71,MX75,RX7#,YX72..GEN,SA

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

GX71,MX75,RX7#,YX72..RHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-22081

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 1
87138 - RESISTOR, HEATER BLOWER
87138-22050

MX75..GL;GX71,RX7#,YX72

 1
Common parts
90179-06054

ILLUST NO. 2 OF 2(8810-9302)RX7#..RHD ; (8812-9205)MX75..GL ; (8812-9205)GX71,YX72

Click highlighted areas on diagram

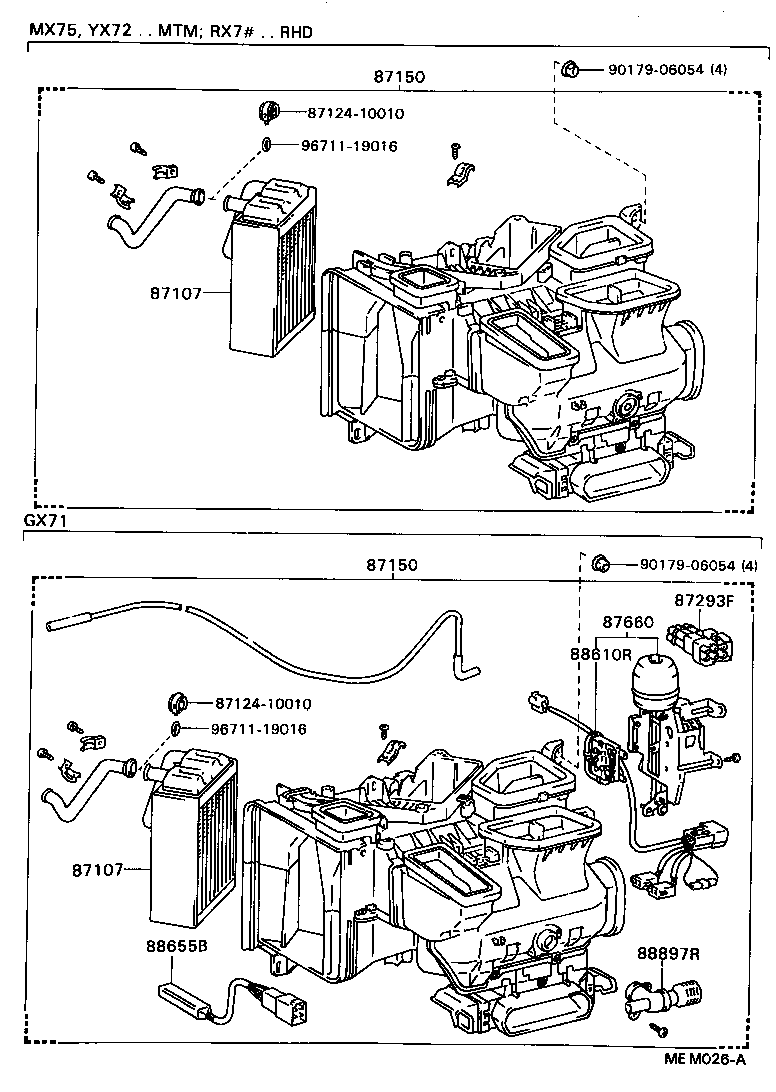

RADIATOR

diagram 87107 87107 8712410010 8712410010 87150 87150 87293F 87660 88610R 88655B 88897R 9017906054 9017906054 9671119016 9671119016
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22130

GX71,MX75,RX7#,YX72..RHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22130

GX71,MX75,RX7#,YX72..RHD

 1
87150 - RADIATOR ASSY, HEATER
87150-22281

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 1
87150 - RADIATOR ASSY, HEATER
87150-22281

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 1
Common parts
87124-10010
90179-06054
96711-19016

ILLUST NO. 2 OF 2(8810-9302)

Click highlighted areas on diagram

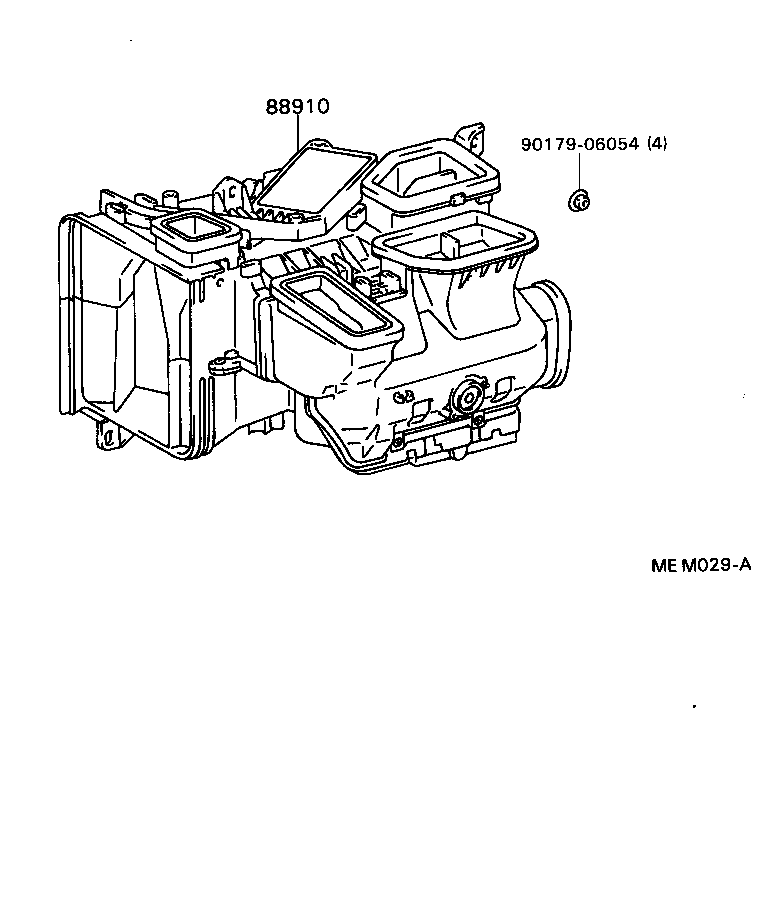

BOOST VENTILATOR

diagram 88910 9017906054
Part # Description Qty Price
Common parts
90179-06054
