YX72R-XEMRSN (1988)

Toyota Cressida Wagon

Production Dec 1988 - May 1992
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8812-9205)3Y

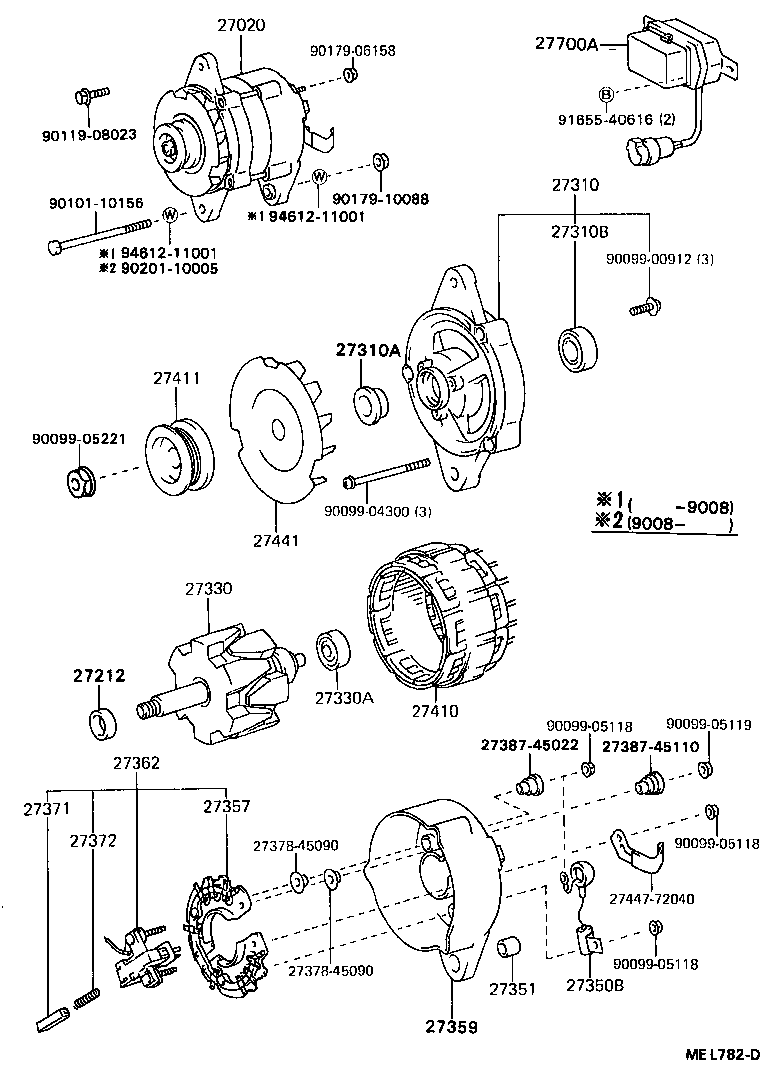

Click highlighted areas on diagram

12V 55A

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27357 27359 27362 27371 27372 2737845090 2737845090 2738745022 2738745110 27410 27411 27441 2744772040 27700A 9009900912 9009904300 9009905118 9009905118 9009905118 9009905119 9009905221 9010110156 9011908023 9017906158 9017910088 9020110005 9165540616 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-72010

3Y..YX72

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-16040

3Y..YX72

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72041

3Y..YX72

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-15150

3Y..YX72

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

3Y..YX72

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-63010

3Y..YX72

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

3Y..YX72

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

3Y..YX72

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

3Y..YX72

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63011

3Y..YX72

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72010

3Y..YX72

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-63011

3Y..YX72

 1
27371 - BRUSH, ALTERNATOR
27371-31011

3Y..YX72

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

3Y..YX72

 2
27410 - STATOR ASSY, ALTERNATOR
27410-43040

3Y..YX72

 1
27411 - PULLEY, ALTERNATOR
27411-72040

3Y..YX72

 1
27441 - FAN, ALTERNATOR
27441-63030

3Y..YX72

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63010

3Y..YX72

 1
Common parts
27378-45090
27387-45022
27387-45110
27447-72040
90099-00912
90099-04300
90099-05118
90099-05119
90099-05221
90101-10156
90119-08023
90179-06158
90179-10088
90201-10005
91655-40616
94612-11001
