RX72RG-XWMNS (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8810- )

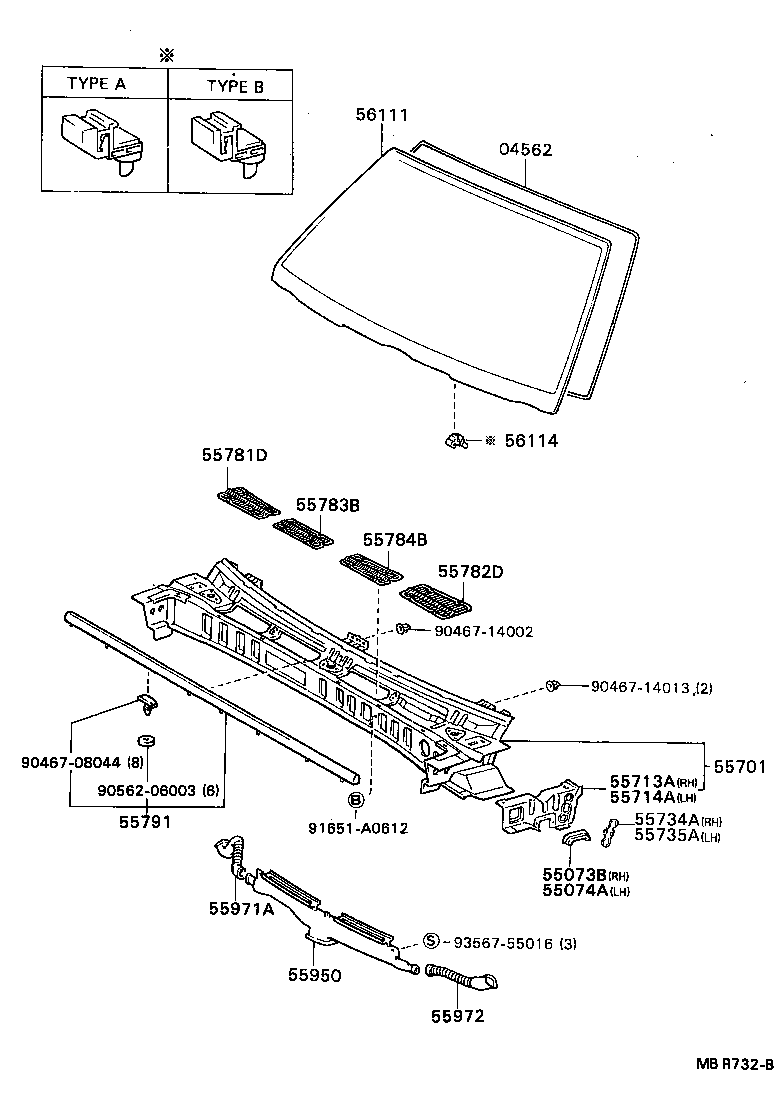

Click highlighted areas on diagram

diagram 04562 55073B 55074A 55701 55713A 55714A 55734A 55735A 55781D 55782D 55783B 55784B 55791 55950 55971A 55972 56111 56114 9046708044 9046714002 9046714013 9056206003 91651A0612 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

GX71,MX75,RX7#,YX72

 1
55073B - SEAL SUB-ASSY, COWL WATER EXTRACT, NO.1
55073-22020

GX71,MX75,RX7#,YX72

 1
55074A - SEAL SUB-ASSY, COWL WATER EXTRACT, NO.2
55074-22030

GX71,MX75,RX7#,YX72

 1
55701 - PANEL SUB-ASSY, COWL
55700-2A040

RX7#,YX72..RHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-22050

GX71,MX75,RX7#,YX72

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-22050

GX71,MX75,RX7#,YX72

 1
55734A - PLATE, WATER GUARD, RH
55734-22060

GX71,MX75,RX7#,YX72

 1
55735A - PLATE, WATER GUARD, LH
55734-22060

GX71,MX75,RX7#,YX72

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-22150

GX71,MX75,RX7#,YX72..RHD

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-22070

GX71,MX75,RX7#,YX72..RHD

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-22070

GX71,MX75,RX7#,YX72..RHD

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-22040

GX71,MX75,RX7#,YX72

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-22070

GX71,MX75,RX7#,YX72..RHD

 1
55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-22030

GX71,MX75,RX7#,YX72..RHD

 1
55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-22020

GX71,MX75,RX7#,YX72..RHD

 1
56111 - GLASS, WINDSHIELD
56111-22700

RX72..GEN

*TL,T=4.7,BLUE,W(TOP SHADE)

 1
56111-22350

RX72..GEN

*TZT,T=5.0

 1
56111-22340

RX72..GEN

*TL,T=5.3,W(TOP SHADE)

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-30050

GX71,MX75,RX7#,YX72

TYPE A

 2
56114-30060

GX71,MX75,RX7#,YX72

TYPE B

 2
Common parts
90467-08044
90467-14002
90467-14013
90562-06003
91651-A0612
93567-55016
