RX72RG-XWMNS (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8810- )

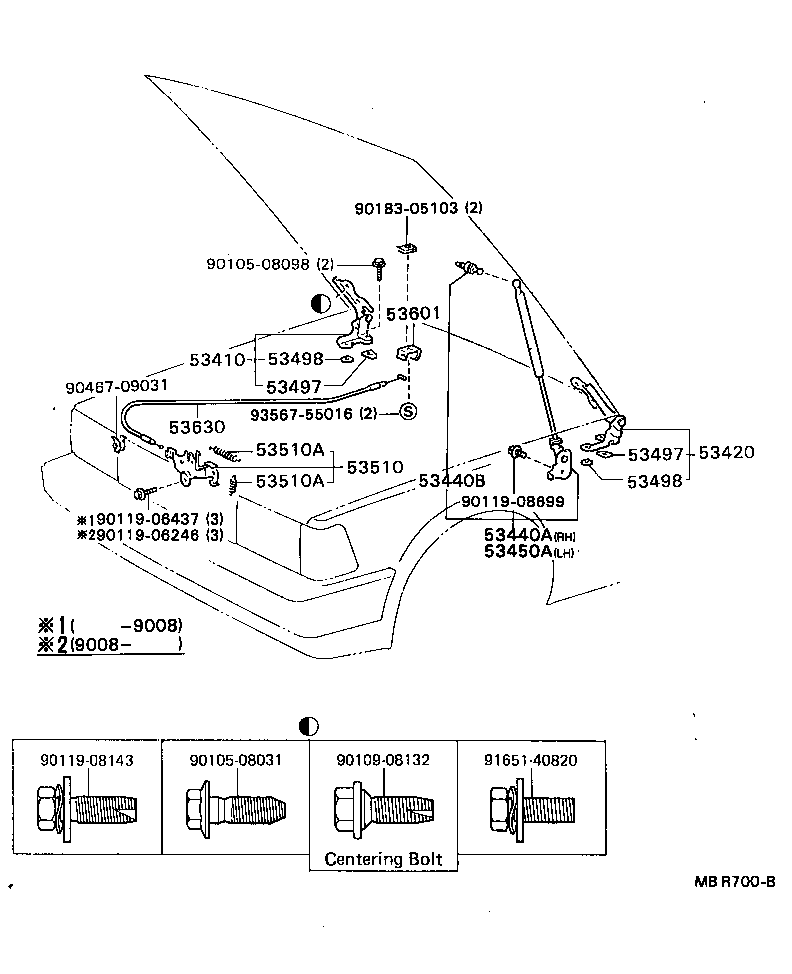

Click highlighted areas on diagram

diagram 53410 53420 53440A 53440B 53450A 53497 53497 53498 53498 53510 53510A 53510A 53601 53630 9010508031 9010508098 9010908132 9011906246 9011906437 9011908143 9011908699 9018305103 9046709031 9165140820 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-22051

RX72..GEN,V

 1
53420 - HINGE ASSY, HOOD, LH
53420-22051

RX72..GEN,V

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-29035

RX72..GEN,V

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-22010

GX71,MX75,RX7#,YX72

 2
53450A - SUPPORT ASSY, HOOD, LH
53450-29035

RX72..GEN,V

 1
53497 - PAD, HOOD HINGE, NO.1
53497-17011

GX71,MX75,RX7#,YX72

 1
53497 - PAD, HOOD HINGE, NO.1
53497-17011

GX71,MX75,RX7#,YX72

 1
53498 - PAD, HOOD HINGE, NO.2
53498-12011

GX71,MX75,RX7#,YX72

 1
53498 - PAD, HOOD HINGE, NO.2
53498-12011

GX71,MX75,RX7#,YX72

 1
53510 - LOCK ASSY, HOOD
53510-22230

GX71,MX75,RX7#,YX72..RHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09029

RX72

WD=0.9,CW=26.5, WD=0.9

 1
90506-18061

GX71,MX75,RX7#,YX72

WD=1.8,CW=18,CW=18, WD=1.9

 1
90506-09029

RX72..GEN,V

WD=0.9,CW=26.5,WD=0.9

 1
90506-18061

RX72..GEN,V

WD=1.8,CW=18,CW=18,WD=1.8

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09029

RX72

WD=0.9,CW=26.5, WD=0.9

 1
90506-18061

GX71,MX75,RX7#,YX72

WD=1.8,CW=18,CW=18, WD=1.9

 1
90506-09029

RX72..GEN,V

WD=0.9,CW=26.5,WD=0.9

 1
90506-18061

RX72..GEN,V

WD=1.8,CW=18,CW=18,WD=1.8

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-2006010

RX72..GEN,V

DARK BLUE,TRIM8#

 1
53601-2006042

RX72..GEN,V

NEW MAROON,TRIM3#

 1
53601-2006033

RX72..GEN,V

MEDIUM GRAY,TRIM1#

 1
53601-2006036

GX71,MX75,RX7#,YX72

SABLE,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-22110

RX72..RHD..GEN

 1
Common parts
90105-08031
90105-08098
90109-08132
90119-06246
90119-06437
90119-08143
90119-08699
90183-05103
90467-09031
91651-40820
93567-55016
