RX72LG-XWPESV (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8810- )

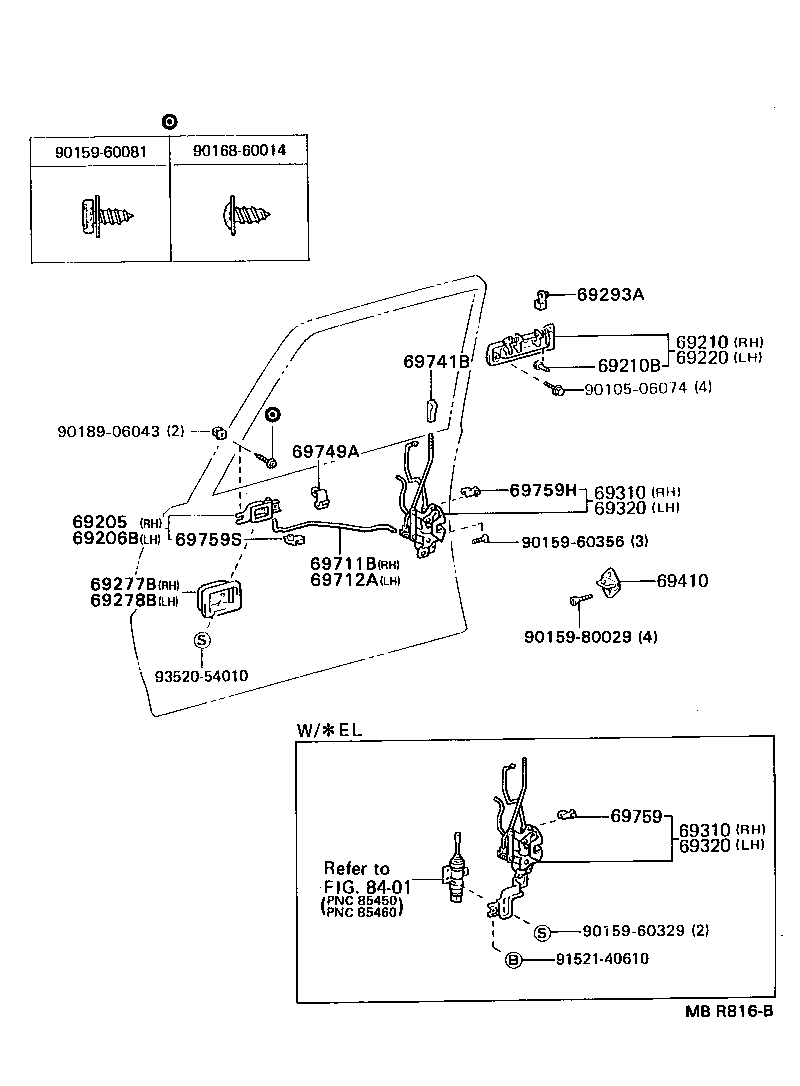

Click highlighted areas on diagram

diagram 69205 69206B 69210 69210B 69220 69277B 69278B 69293A 69310 69310 69320 69320 69410 69711B 69712A 69741B 69749A 69759 69759H 69759S 8401 9010506074 9015960081 9015960329 9015960356 9015980029 9016860014 9018906043 9152140610 9352054010
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-9160104

RX72..GEN,V

BLUE,TRIM8#

 1
69205-9160113

GX71,MX75,RX7#,YX72

MEDIUM GRAY,TRIM1#

 1
69205-9160113

RX72..GEN,V

MEDIUM GRAY,TRIM1#

 1
69205-9160106

GX71,MX75,RX7#

SABLE,TRIM4#

 1
69205-9160102

RX72..GEN,V

NEW MAROON,TRIM3#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-9160113

RX72..GEN,V

MEDIUM GRAY,TRIM1#

 1
69206-9160102

RX72..GEN,V

NEW MAROON,TRIM3#

 1
69206-9160106

GX71,MX75,RX7#,YX72

SABLE,TRIM4#

 1
69206-9160113

GX71,MX75,RX7#,YX72

MEDIUM GRAY,TRIM1#

 1
69206-9160104

RX72..GEN,V

BLUE,TRIM8#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-22080

MX75,RX7#,YX72..GL,STD,XL

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

GX71,MX75,RX7#,YX72

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-22070

GX71,MX75,RX7#,YX72

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-2205013

RX72..GEN,V

MEDIUM GRAY,TRIM1#

 1
69277-2205014

RX72..GEN,V

BLUE,TRIM8#

 1
69277-2205006

RX72..GEN,V

SABLE,TRIM4#

 1
69277-2205013

GX71,MX75,RX7#,YX72

MEDIUM GRAY,TRIM1#

 1
69277-2205022

RX72..GEN,V

NEW MAROON,TRIM3#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69277-2205014

RX72..GEN,V

BLUE,TRIM8#

 1
69277-2205013

RX72..GEN,V

MEDIUM GRAY,TRIM1#

 1
69277-2205013

GX71,MX75,RX7#,YX72

MEDIUM GRAY,TRIM1#

 1
69277-2205006

RX72..GEN,V

SABLE,TRIM4#

 1
69277-2205022

RX72..GEN,V

NEW MAROON,TRIM3#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12060

GX71,MX75,RX7#,YX72

YELLOW

 1
69293-12050

RX72..GEN,V

RH

 1
69293-12050

GX71,MX75,RX7#,YX72

WHITE

 1
69293-12060

RX72..GEN,V

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-22201

RX72..4FC

W(POWER WINDOW)

 1
69310-22240

RX72..4FC;RX72..XL..V

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-22201

RX72..4FC

W(POWER WINDOW)

 1
69310-22240

RX72..4FC;RX72..XL..V

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-22241

RX72..4FC

W(POWER WINDOW)

 1
69320-22210

RX72..4FC;RX72..XL..V

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-22241

RX72..4FC

W(POWER WINDOW)

 1
69320-22210

RX72..4FC;RX72..XL..V

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20070

RX72..GEN,V

 2
69410-87001

RX72

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-22040

GX71,MX75,RX7#,YX72

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-22040

GX71,MX75,RX7#,YX72

 1
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-3003013

RX72..GEN,V

MEDIUM GRAY,TRIM1#

 2
69741-3003034

RX72..GEN,V

BLUE,TRIM8#

 2
69741-3003034

RX72..GEN,V

BLUE

 2
69741-3003032

RX72..GEN,V

NEW MAROON,TRIM3#

 2
69741-3003016

RX72..GEN,V

SABLE,TRIM4#

 2
69741-3003013

GX71,MX75,RX7#,YX72

MEDIUM GRAY,TRIM1#

 2
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-20010

GX71,MX75,RX7#,YX72

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20050

GX71,MX75,RX7#,YX72

BROWN

 1
69759-20040

GX71,MX75,RX7#,YX72

YELLOW

 1
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-20050

RX72..GEN,V

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-22050

GX71,MX75,RX7#,YX72

VIOLET

 1
69759-22040

GX71,MX75,RX7#,YX72

ORANGE

 1
Common parts
90105-06074
90159-60081
90159-60329
90159-60356
90159-80029
90168-60014
90189-06043
91521-40610
93520-54010
Linked diagrams
8401
