RX72LG-XWMNS (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8810-9302)LHD

Click highlighted areas on diagram

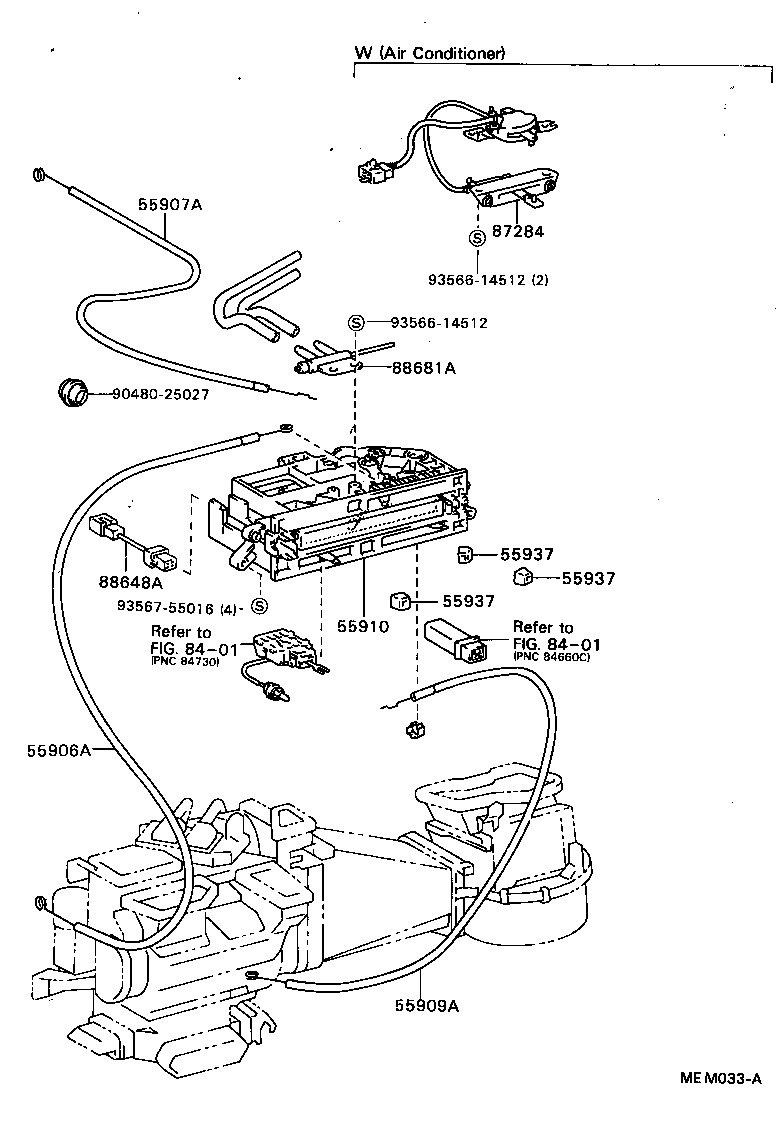

CONTROL PANEL

diagram 55906A 55907A 55909A 55910 55937 55937 55937 8401 8401 87284 88648A 88681A 9048025027 9356614512 9356614512 9356755016
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-22110

RX72..LHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-22170

RX72..LHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-22040

MX75,RX7#,YX72..GL,STD,XL

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-22320

RX72..LHD

 1
55910-22360

RX72..LHD..GEN

W(AIR CONDITIONER & BOOST VENTILATOR)

 1
55910-22360

RX72..LHD..XL

W(AIR CONDITIONER & BOOST VENTILATOR)

 1
55910-22340

RX72..LHD..GEN

W(BOOST VENTILATOR)

 1
55910-22340

RX72..LHD..GEN

W(BOOST VENTILATOR)

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-30082

RX72..LHD..GEN

 2
55905-30082

RX72..LHD

 3
55905-30082

RX72..LHD..GEN

 2
55937 - KNOB, HEATER CONTROL LEVER
55905-30082

RX72..LHD..GEN

 2
55905-30082

RX72..LHD

 3
55905-30082

RX72..LHD..GEN

 2
55937 - KNOB, HEATER CONTROL LEVER
55905-30082

RX72..LHD..GEN

 2
55905-30082

RX72..LHD

 3
55905-30082

RX72..LHD..GEN

 2
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-22080

RX72..LHD..GEN

 1
88032-22080

RX72..LHD..XL

 1
88648A - WIRING, COOLER
88648-22140

MX75,RX7#,YX72..GL,STD,XL

 1
88681A - SWITCH, HEATER CONTROL VACUUM, NO.1
88681-22020

RX72..LHD

 1
Common parts
90480-25027
93566-14512
93567-55016
Linked diagrams
8401

ILLUST NO. 3 OF 3(8810-9302)LHD

Click highlighted areas on diagram

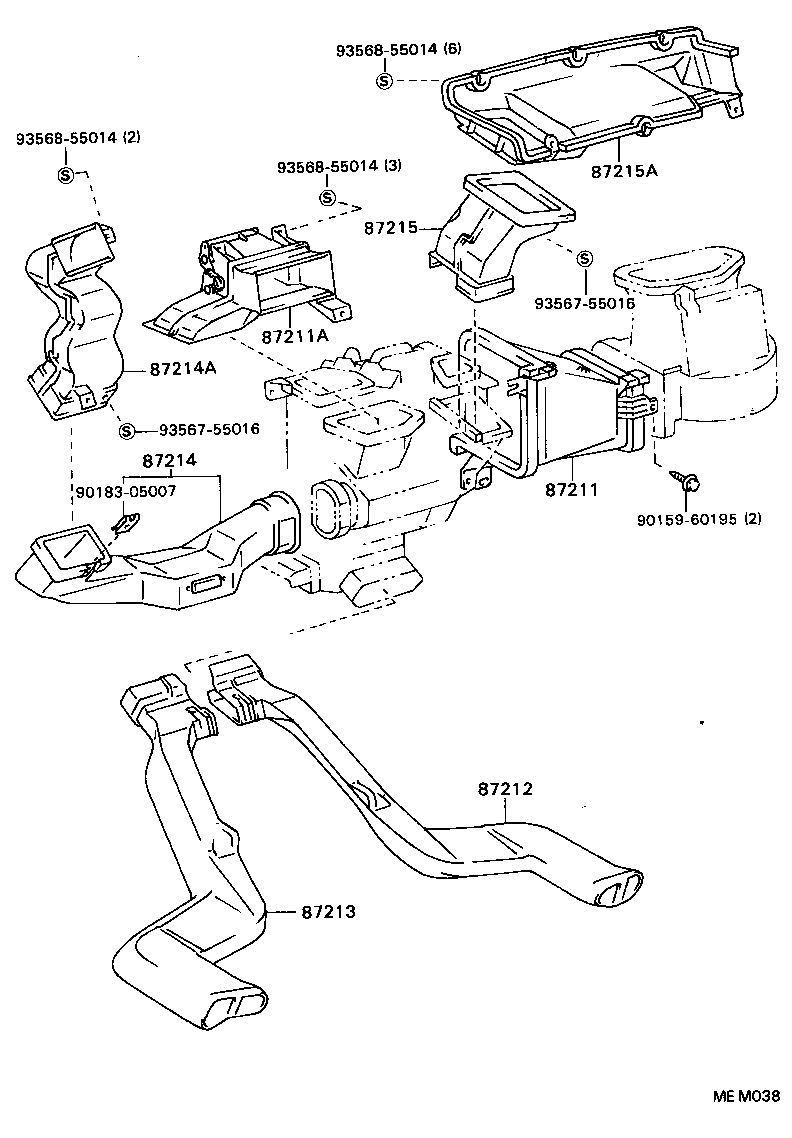

AIR DUCT

diagram 87211 87211A 87212 87213 87214 87214A 87215 87215A 9015960195 9018305007 9356755016 9356755016 9356855014 9356855014 9356855014
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87211-22110

RX72..LHD..XL

 1
87211A - DUCT, AIR, NO.2
55088-22090

RX72..LHD

 1
87212 - DUCT, AIR, REAR NO.1
87202-22021

GX71,MX75,RX7#,YX72

 1
87202-22021

GX71,MX75,RX7#,YX72

 1
87213 - DUCT, AIR, REAR NO.2
87203-22031

GX71,MX75,RX7#,YX72

 1
87203-22031

GX71,MX75,RX7#,YX72

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-22150

RX72..LHD..XL

 1
55085-22140

RX72..LHD..XL

W(AIR CONDITIONER)

 1
55085-22140

RX72..LHD..GEN

W(AIR CONDITIONER)

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-22100

RX72..LHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55086-22020

RX72..LHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55087-22110

RX72..LHD

 1
Common parts
90159-60195
90183-05007
93567-55016
93568-55014
