RX72LG-XWMNS (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8810- )

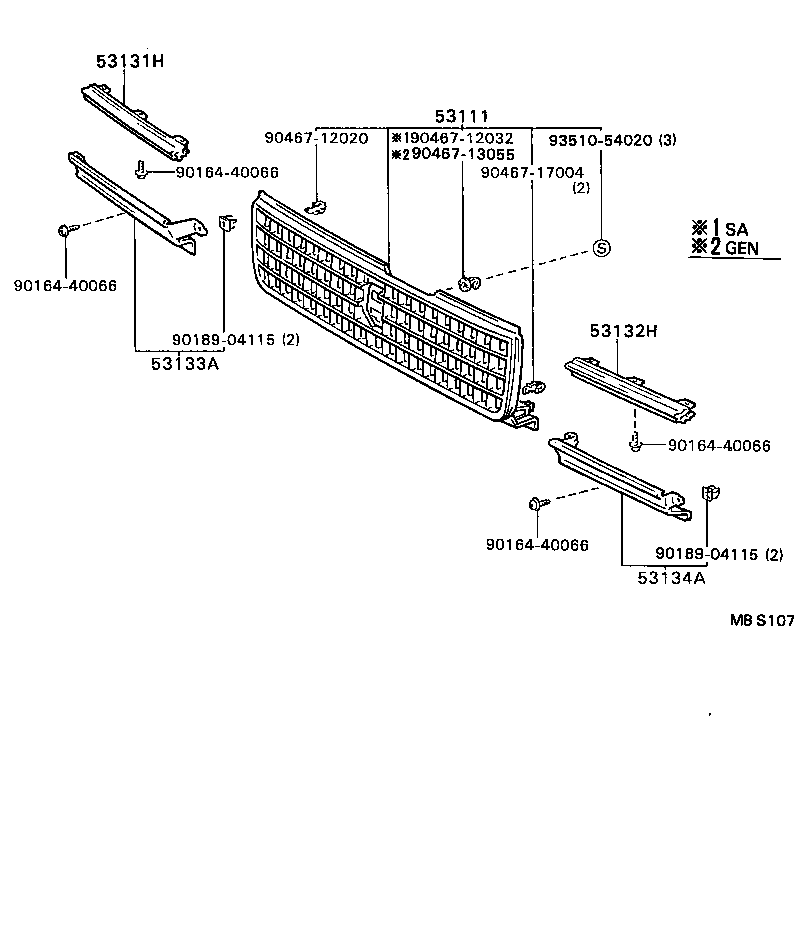

Click highlighted areas on diagram

diagram 53111 53131H 53132H 53133A 53134A 9016440066 9016440066 9016440066 9016440066 9018904115 9018904115 9046712020 9046712032 9046713055 9046717004 9351054020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-91604

RX72..GEN,V

 1
53131H - DOOR, HEADLAMP, UPPER RH
53131-22280

GX71,MX75,RX7#,YX72

 1
53132H - DOOR, HEADLAMP, UPPER LH
53132-22260

GX71,MX75,RX7#,YX72

 1
53133A - DOOR, HEADLAMP, LOWER RH
53133-22140

GX71,MX75,RX7#,YX72

 1
53134A - DOOR, HEADLAMP, LOWER LH
53134-22100

GX71,MX75,RX7#,YX72

 1
Common parts
90164-40066
90189-04115
90467-12020
90467-12032
90467-13055
90467-17004
93510-54020
