RX72LG-XWMESV (1988)
Toyota Cressida Wagon
Production
Oct 1988
-
Feb 1993
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8810-9302)RX72

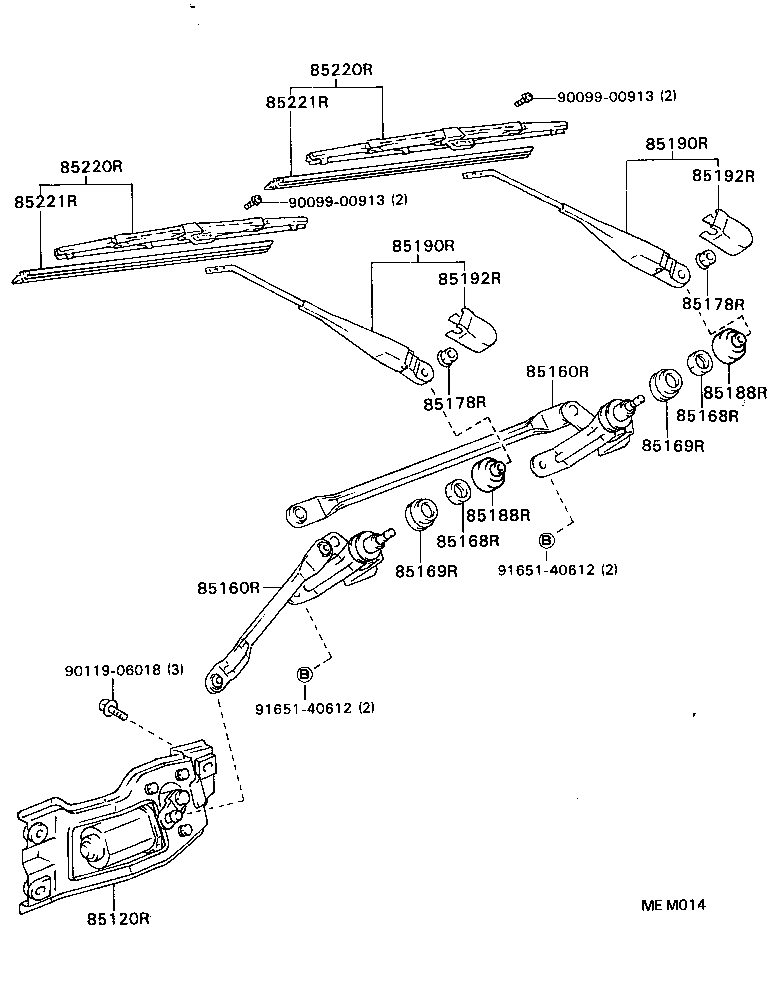

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85120R - MOTOR AND BRACKET ASSY, REAR WIPER | ||||
| 85120-22011 |
RX72 |
1 | ||
| 85160R - LINK ASSY, REAR WIPER | ||||
| 85160-91603 |
RX72 LH |
1 | ||
| 85160-91604 |
RX72 RH |
1 | ||
| 85160R - LINK ASSY, REAR WIPER | ||||
| 85160-91603 |
RX72 LH |
1 | ||
| 85160-91604 |
RX72 RH |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-05157 |
RX72 |
2 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-05157 |
RX72 |
2 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85179-22310 |
RX72 |
2 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85179-22310 |
RX72 |
2 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
RX72 |
2 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
RX72 |
2 | ||
| 85188R - CAP, REAR WIPER PIVOT, NO.1 | ||||
| 85178-91601 |
RX72 |
2 | ||
| 85188R - CAP, REAR WIPER PIVOT, NO.1 | ||||
| 85178-91601 |
RX72 |
2 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-23010 |
RX72..GEN,V |
2 | ||
| 85190-22570 |
RX72 |
2 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-22570 |
RX72 |
2 | ||
| 85241-23010 |
RX72..GEN,V |
2 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-14020 |
RX72 |
2 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-14020 |
RX72 |
2 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-22710 |
RX72 |
2 | ||
| 85242-23010 |
RX72..GEN,V |
2 | ||
| 85220-22430 |
RX72 |
2 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-22710 |
RX72 |
2 | ||
| 85242-23010 |
RX72..GEN,V |
2 | ||
| 85220-22430 |
RX72 |
2 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-16070 |
RX72 |
2 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-16070 |
RX72 |
2 | ||
| Common parts | ||||
| 90099-00913 | ||||
| 90119-06018 | ||||
| 91651-40612 | ||||
