RX72LG-XWMESV (1988)
Toyota Cressida Wagon
Production
Oct 1988
-
Feb 1993
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8810-9302)

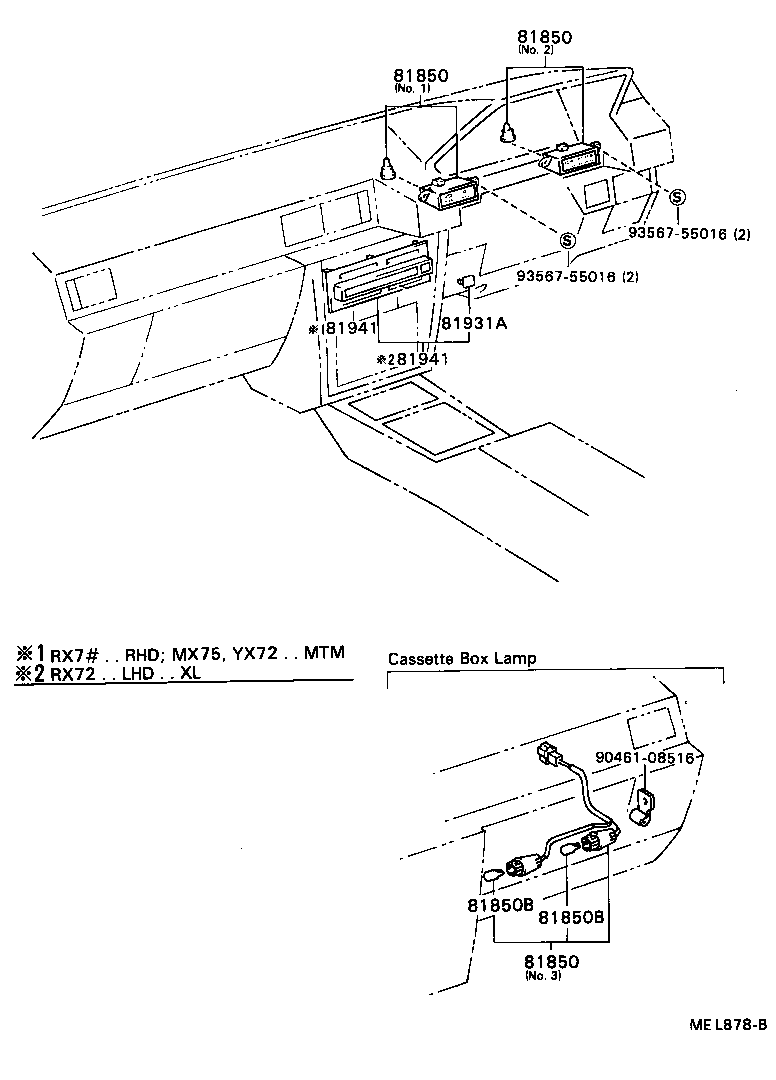

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-22440 |
RX7# NO.2 |
1 | ||
| 81850-22350 |
MX75..GL;GX71,RX7#,YX72 NO.1 |
1 | ||
| 81850-22090 |
RX72..GL NO.3(CASSETTE BOX) |
1 | ||
| 81850-22090 |
RX72..GL NO.3(CASSETTE BOX) |
1 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-22440 |
RX7# NO.2 |
1 | ||
| 81850-22350 |
MX75..GL;GX71,RX7#,YX72 NO.1 |
1 | ||
| 81850-22090 |
RX72..GL NO.3(CASSETTE BOX) |
1 | ||
| 81850-22090 |
RX72..GL NO.3(CASSETTE BOX) |
1 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-22440 |
RX7# NO.2 |
1 | ||
| 81850-22350 |
MX75..GL;GX71,RX7#,YX72 NO.1 |
1 | ||
| 81850-22090 |
RX72..GL NO.3(CASSETTE BOX) |
1 | ||
| 81850-22090 |
RX72..GL NO.3(CASSETTE BOX) |
1 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 90981-11014 |
RX72..GL 14V 1.4W,14V 1.4W,NO.3(CASSETTE BOX LAMP) |
2 | ||
| 84999-50140 |
GX71,MX75,RX7#,YX72 12V 1.4W,12V 1.4W,NO.2 |
4 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 90981-11014 |
RX72..GL 14V 1.4W,14V 1.4W,NO.3(CASSETTE BOX LAMP) |
2 | ||
| 84999-50140 |
GX71,MX75,RX7#,YX72 12V 1.4W,12V 1.4W,NO.2 |
4 | ||
| 81941 - PLATE, HEATER CONTROL NAME | ||||
| 55519-22222 |
RX72..GL |
1 | ||
| 81941 - PLATE, HEATER CONTROL NAME | ||||
| 55519-22222 |
RX72..GL |
1 | ||
| Common parts | ||||
| 90461-08516 | ||||
| 93567-55016 | ||||
