RX72LG-XWMESV (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8810- )

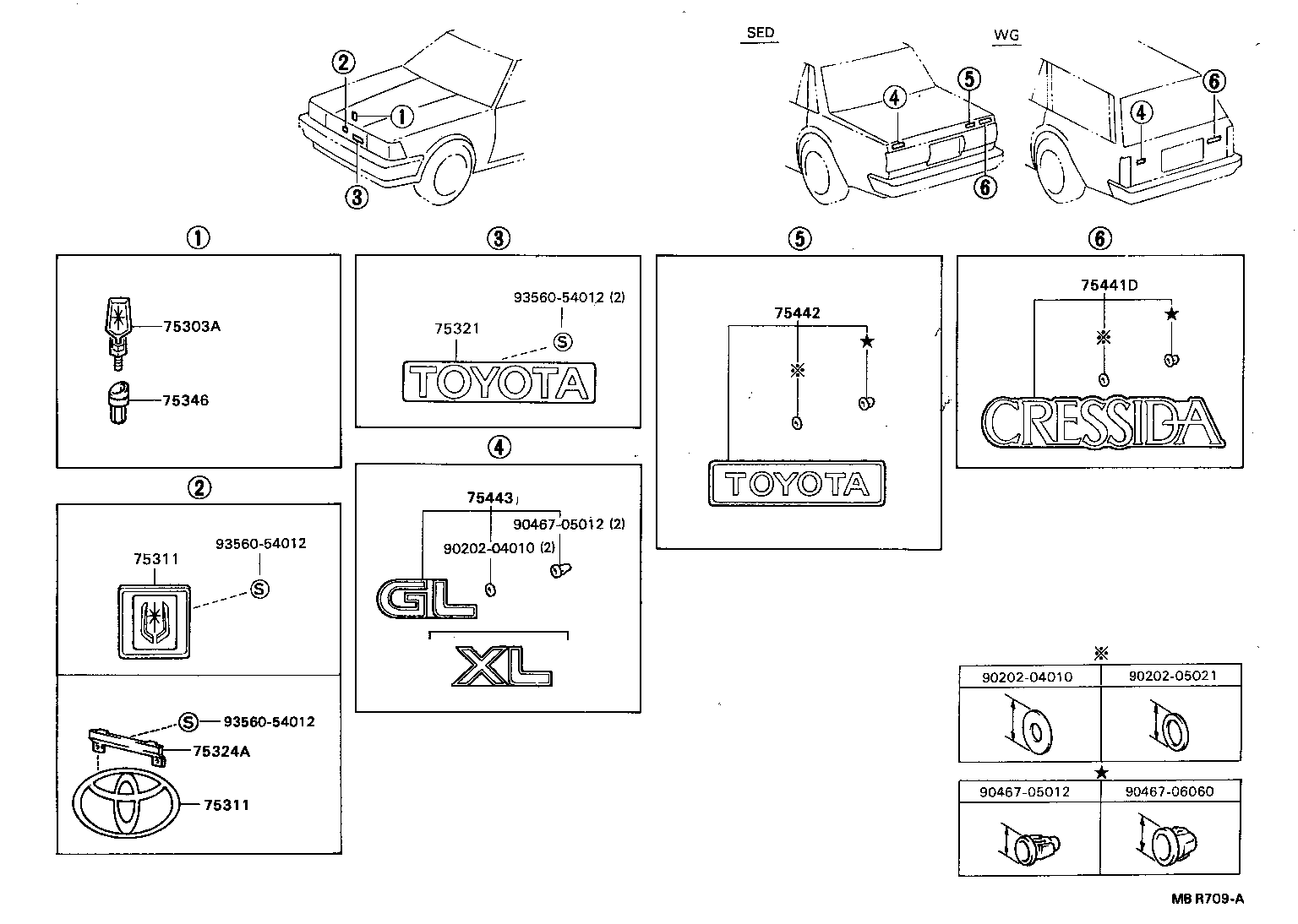

Click highlighted areas on diagram

diagram 75303A 75311 75311 75321 75324A 75346 75441D 75442 75443 9020204010 9020204010 9020205021 9046705012 9046705012 9046706060 9356054012 9356054012 9356054012
Part # Description Qty Price
75303A - EMBLEM SUB-ASSY, HOOD
75303-91601

RX72..V

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-23030

RX72..GEN,V

 1
75311-22360

RX72..GEN,V

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-23030

RX72..GEN,V

 1
75311-22360

RX72..GEN,V

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-91618

RX72..GEN,V

TOYOTA

 1
75324A - RETAINER, RADIATOR GRILLE NAME PLATE
75324-23010

RX72..GEN,V

 1
75346 - PAD, HOOD ORNAMENT, NO.2
75346-22020

RX72..V

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-22100

GX71,MX75,RX7#,YX72

CRESSIDA

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-22470

MX75,RX72..GL

GL

 1
Common parts
90202-04010
90202-05021
90467-05012
90467-06060
93560-54012
