RX72LG-XWMESV (1988)
Toyota Cressida Wagon
(8810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-9160102 |
RX72..GEN,V NEW MAROON,TRIM3# |
1 | ||
| 69205-9160113 |
GX71,MX75,RX7#,YX72 MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-9160104 |
RX72..GEN,V BLUE,TRIM8# |
1 | ||
| 69205-9160113 |
RX72..GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-9160106 |
GX71,MX75,RX7# SABLE,TRIM4# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-9160104 |
RX72..GEN,V BLUE,TRIM8# |
1 | ||
| 69206-9160106 |
GX71,MX75,RX7#,YX72 SABLE,TRIM4# |
1 | ||
| 69206-9160113 |
RX72..GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-9160102 |
RX72..GEN,V NEW MAROON,TRIM3# |
1 | ||
| 69206-9160113 |
GX71,MX75,RX7#,YX72 MEDIUM GRAY,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-22080 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
GX71,MX75,RX7#,YX72 |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-22070 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-2205006 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 69277-2205014 |
RX72..5F..GL BLUE,TRIM8# |
1 | ||
| 69277-2205013 |
RX72..5F..GL;GX71,MX75..GLX MEDIUM GRAY,TRIM1# |
1 | ||
| 69277-2205013 |
RX72..5F..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 69277-2205022 |
RX72..5F..GL NEW MAROON,TRIM3# |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-2205006 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 69277-2205014 |
RX72..5F..GL BLUE,TRIM8# |
1 | ||
| 69277-2205013 |
RX72..5F..GL;GX71,MX75..GLX MEDIUM GRAY,TRIM1# |
1 | ||
| 69277-2205013 |
RX72..5F..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 69277-2205022 |
RX72..5F..GL NEW MAROON,TRIM3# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69277-2205006 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 69277-2205013 |
RX72..5F..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 69277-2205014 |
RX72..5F..GL BLUE,TRIM8# |
1 | ||
| 69277-2205022 |
RX72..5F..GL NEW MAROON,TRIM3# |
1 | ||
| 69277-2205013 |
RX72..5F..GL;GX71,MX75..GLX MEDIUM GRAY,TRIM1# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69277-2205006 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 69277-2205013 |
RX72..5F..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 69277-2205014 |
RX72..5F..GL BLUE,TRIM8# |
1 | ||
| 69277-2205022 |
RX72..5F..GL NEW MAROON,TRIM3# |
1 | ||
| 69277-2205013 |
RX72..5F..GL;GX71,MX75..GLX MEDIUM GRAY,TRIM1# |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
GX71,MX75,RX7#,YX72 WHITE |
1 | ||
| 69293-12060 |
GX71,MX75,RX7#,YX72 YELLOW |
1 | ||
| 69293-12060 |
RX72..GEN,V LH |
1 | ||
| 69293-12050 |
RX72..GEN,V RH |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-22131 |
RX72..5F..GL |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-22131 |
RX72..5F..GL |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-22141 |
RX72..5F..GL |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-22141 |
RX72..5F..GL |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
RX72 |
2 | ||
| 69410-20070 |
RX72..GEN,V |
2 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-22041 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-22041 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 69741C - KNOB, REAR DOOR LOCK CONTROL | ||||
| 69741-3003032 |
RX72..GEN,V NEW MAROON,TRIM3# |
2 | ||
| 69741-3003034 |
RX72..GEN,V BLUE |
2 | ||
| 69741-3003016 |
RX72..GEN,V SABLE,TRIM4# |
2 | ||
| 69741-3003013 |
GX71,MX75,RX7#,YX72 MEDIUM GRAY,TRIM1# |
2 | ||
| 69741-3003013 |
RX72..GEN,V MEDIUM GRAY,TRIM1# |
2 | ||
| 69741-3003034 |
RX72..GEN,V BLUE,TRIM8# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12040 |
GX71,MX75,RX7#,YX72 |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20050 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 69759-20040 |
GX71,MX75,RX7#,YX72 YELLOW |
2 | ||
| 69759-20050 |
GX71,MX75,RX7#,YX72 BROWN |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20050 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 69759-20040 |
GX71,MX75,RX7#,YX72 YELLOW |
2 | ||
| 69759-20050 |
GX71,MX75,RX7#,YX72 BROWN |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-22040 |
GX71,MX75,RX7#,YX72 ORANGE |
1 | ||
| 69759-22050 |
GX71,MX75,RX7#,YX72 VIOLET |
1 | ||
| 69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-22040 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-22040 |
GX71,MX75,RX7#,YX72 |
1 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 90159-60081 | ||||
| 90159-60329 | ||||
| 90159-60356 | ||||
| 90159-80029 | ||||
| 90168-60014 | ||||
| 90189-04022 | ||||
| 90189-06018 | ||||
| 90189-06043 | ||||
| 90950-01229 | ||||
| 91521-40610 | ||||
| 93520-54010 | ||||
| 93540-54014 | ||||

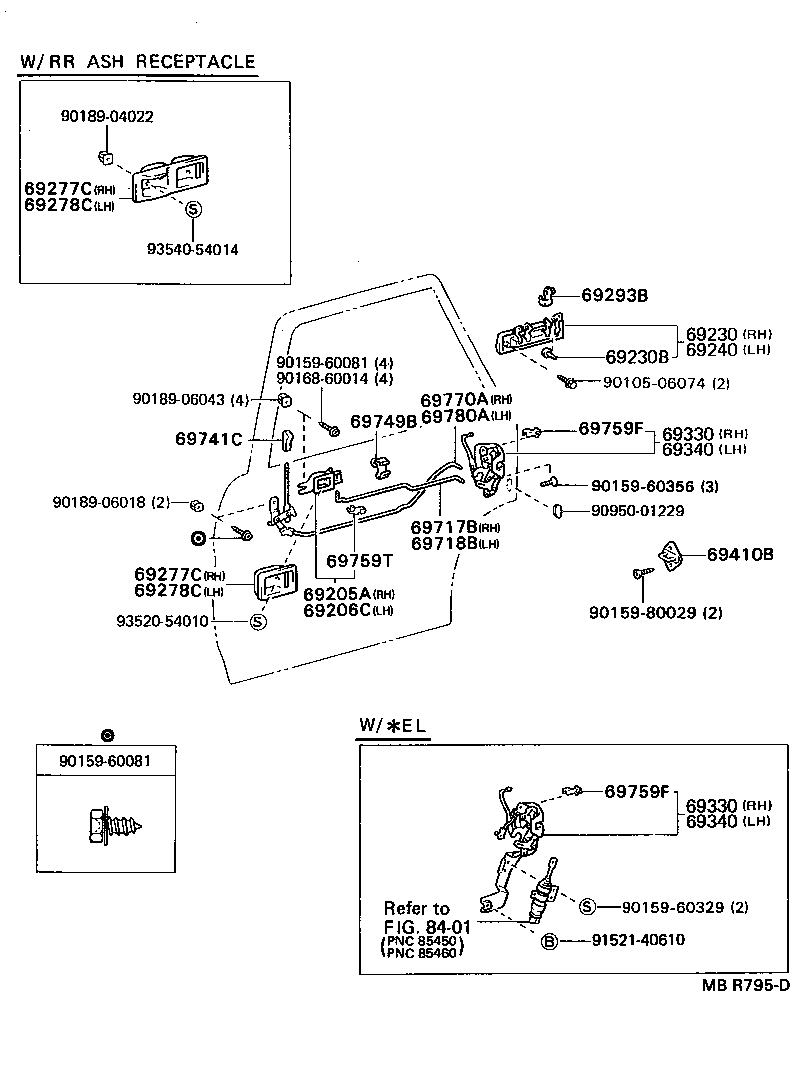

| Linked diagrams | ||||
| 8401 | ||||
