RX72LG-XWMESV (1988)
Toyota Cressida Wagon

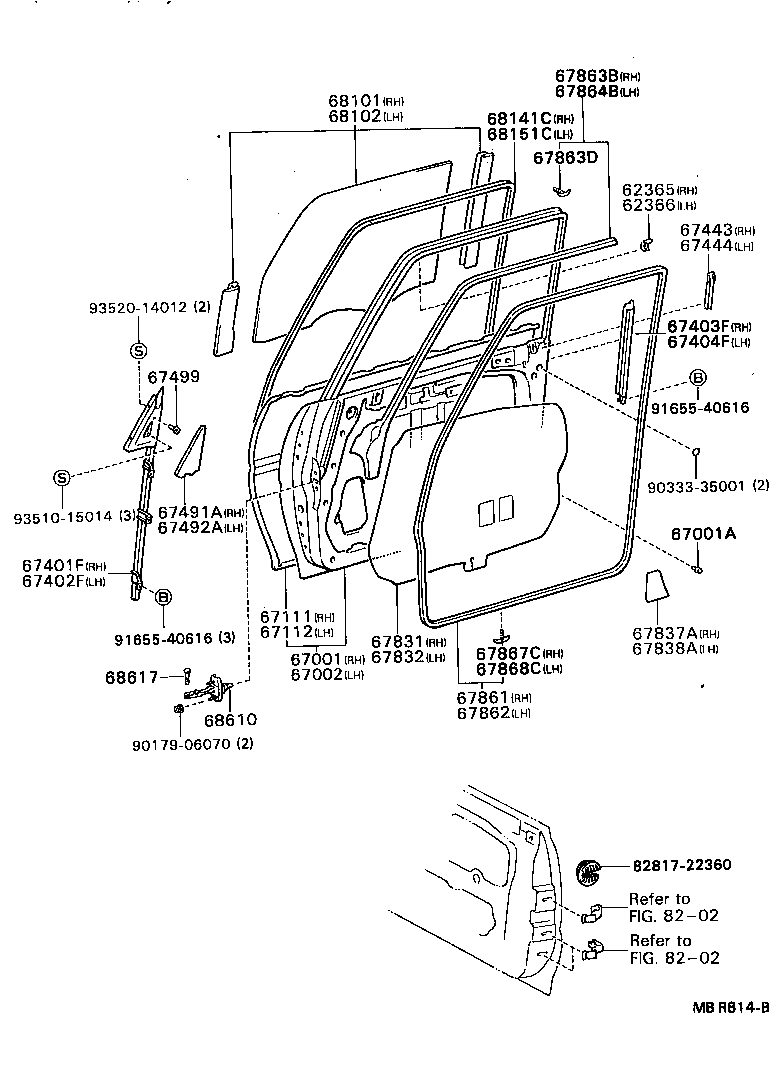

ILLUST NO. 1 OF 2(8810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62365 - CLIP, DOOR WINDOW GLASS, FRONT RH | ||||
| 62369-22030 |
RX72..GEN,V;MX75,YX72..5F |
1 | ||
| 62366 - CLIP, DOOR WINDOW GLASS, FRONT LH | ||||
| 62369-22030 |
RX72..GEN,V;MX75,YX72..5F |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-22220 |
RX72..V |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
GX71,MX75,RX7#,YX72 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-22220 |
RX72..V |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-22130 |
MX75,RX7#,YX72..GL,STD,XL |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-22140 |
MX75,RX7#,YX72..GL,STD,XL |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-22080 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-22080 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-22050 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-22050 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67443 - PROTECTOR, FRONT DOOR LOCKING ROD, RH | ||||
| 67443-22010 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67444 - PROTECTOR, FRONT DOOR LOCKING ROD, LH | ||||
| 67444-22010 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-22040 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-22040 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-30010 |
GX71,MX75,RX7#,YX72 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-22130 |
RX72..GEN,V DUST PROTECTING |
2 | ||
| 67831-22100 |
RX72..GEN,V |
1 | ||
| 67831-22130 |
RX72..5F..(GEN,V) DUST PROTECTING |
2 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-22010 |
RX72..GEN,V |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-22020 |
RX72..5F..(GEN,V) |
1 | ||
| 67837-22020 |
RX72..GEN,V |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-22020 |
RX72..GEN,V |
1 | ||
| 67838-22020 |
RX72..5F..(GEN,V) |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-22140 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-22140 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-22010 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67868-30040 |
GX71,MX75,RX7#,YX72 |
4 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-22010 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-22020 |
GX71,MX75,RX7#,YX72 |
19 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-22010 |
GX71,MX75,RX7#,YX72 |
19 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-22090 |
GX71,MX75,RX7#,YX72 *TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-22090 |
GX71,MX75,RX7#,YX72 *TT,T=4.0 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-22070 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-22020 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-22030 |
GX71,MX75,RX7#,YX72 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-22020 |
GX71,MX75,RX7#,YX72 |
2 | ||
| Common parts | ||||
| 82817-22360 | ||||
| 90179-06070 | ||||
| 90333-35001 | ||||
| 91655-40616 | ||||
| 93510-15014 | ||||
| 93520-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||

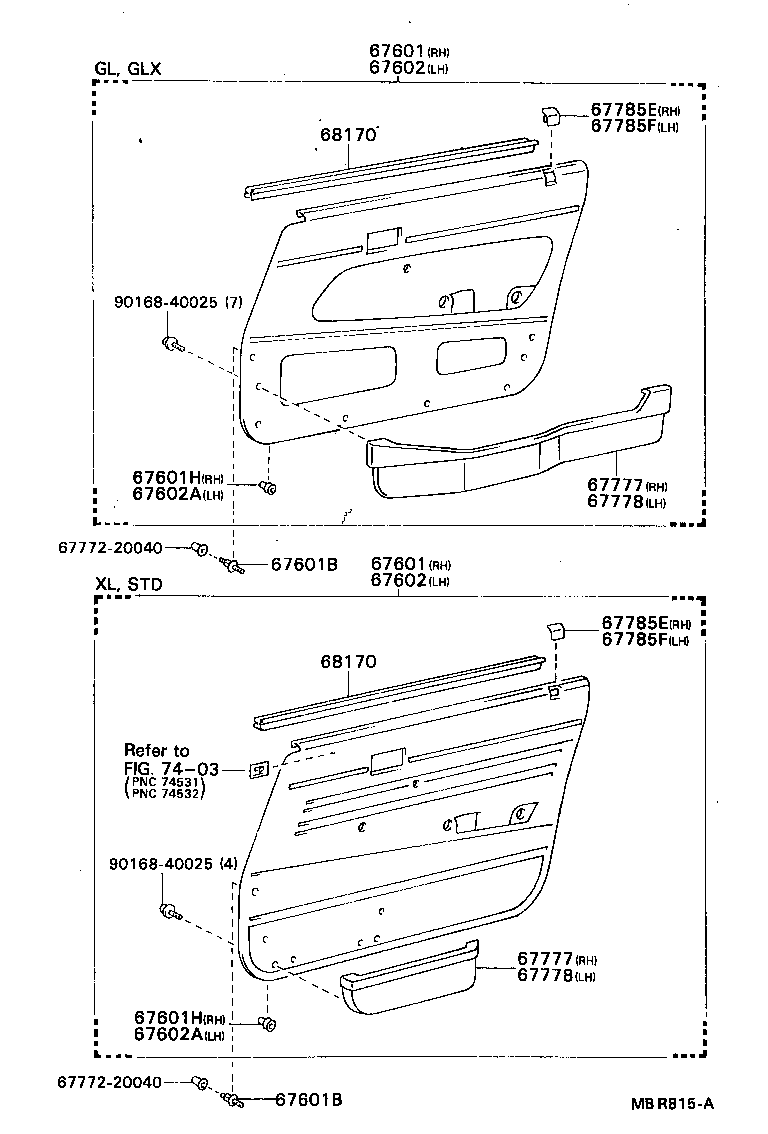

ILLUST NO. 2 OF 2(8810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9167404 |
RX72..5F..GL BLUE,TRIM8# |
1 | ||
| 67610-9167402 |
RX72..5F..GL NEW MAROON,TRIM3# |
1 | ||
| 67610-9167406 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 67610-9167403 |
RX72..5F..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 67610-9167416 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9167404 |
RX72..5F..GL BLUE,TRIM8# |
1 | ||
| 67610-9167402 |
RX72..5F..GL NEW MAROON,TRIM3# |
1 | ||
| 67610-9167406 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 67610-9167403 |
RX72..5F..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 67610-9167416 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704323 |
RX72..GEN,V MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0704323 |
GX71,MX75,RX7#,YX72 MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0704322 |
RX72..GEN,V NEW MAROON,TRIM3# |
2 | ||
| 90467-0704342 |
RX72..GEN,V NEW MAROON,TRIM3# |
2 | ||
| 90467-0704320 |
RX72..GEN,V BLUE,TRIM8# |
2 | ||
| 90467-0704346 |
GX71,MX75,RX7#,YX72 SABLE,TRIM4# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704323 |
RX72..GEN,V MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0704323 |
GX71,MX75,RX7#,YX72 MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0704322 |
RX72..GEN,V NEW MAROON,TRIM3# |
2 | ||
| 90467-0704342 |
RX72..GEN,V NEW MAROON,TRIM3# |
2 | ||
| 90467-0704320 |
RX72..GEN,V BLUE,TRIM8# |
2 | ||
| 90467-0704346 |
GX71,MX75,RX7#,YX72 SABLE,TRIM4# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-22010 |
MX75,RX7#,YX72..GL,STD,XL BLUE X BLACK |
4 | ||
| 67771-30060 |
MX75,RX7#,YX72..GL,STD,XL WHITE X BLUE |
6 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-22010 |
MX75,RX7#,YX72..GL,STD,XL BLUE X BLACK |
4 | ||
| 67771-30060 |
MX75,RX7#,YX72..GL,STD,XL WHITE X BLUE |
6 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9165306 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 67620-9165302 |
RX72..5F..GL NEW MAROON,TRIM3# |
1 | ||
| 67620-9165304 |
RX72..5F..GL BLUE,TRIM8# |
1 | ||
| 67620-9165316 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 67620-9165303 |
RX72..5F..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9165306 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 67620-9165302 |
RX72..5F..GL NEW MAROON,TRIM3# |
1 | ||
| 67620-9165304 |
RX72..5F..GL BLUE,TRIM8# |
1 | ||
| 67620-9165316 |
RX72..5F..GL SABLE,TRIM4# |
1 | ||
| 67620-9165303 |
RX72..5F..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-30060 |
MX75,RX7#,YX72..GL,STD,XL WHITE X BLUE |
6 | ||
| 67771-22010 |
MX75,RX7#,YX72..GL,STD,XL BLUE X BLACK |
4 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-30060 |
MX75,RX7#,YX72..GL,STD,XL WHITE X BLUE |
6 | ||
| 67771-22010 |
MX75,RX7#,YX72..GL,STD,XL BLUE X BLACK |
4 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2202114 |
RX72..GL BLUE,TRIM8# |
1 | ||
| 67770-9160204 |
RX72..GL BLUE,TRIM8# |
1 | ||
| 67770-2202106 |
RX72..GL BROWN,TRIM4# |
1 | ||
| 67770-2202112 |
RX72..GL NEW MAROON,TRIM3# |
1 | ||
| 67770-9160206 |
RX72..GL SABLE,TRIM4# |
1 | ||
| 67770-9160203 |
RX72..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 67770-9160202 |
RX72..GL NEW MAROON,TRIM3# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2202114 |
RX72..GL BLUE,TRIM8# |
1 | ||
| 67770-9160204 |
RX72..GL BLUE,TRIM8# |
1 | ||
| 67770-2202106 |
RX72..GL BROWN,TRIM4# |
1 | ||
| 67770-2202112 |
RX72..GL NEW MAROON,TRIM3# |
1 | ||
| 67770-9160206 |
RX72..GL SABLE,TRIM4# |
1 | ||
| 67770-9160203 |
RX72..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 67770-9160202 |
RX72..GL NEW MAROON,TRIM3# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2202112 |
RX72..GL MAROON,TRIM3# |
1 | ||
| 67780-2202114 |
RX72..GL BLUE,TRIM8# |
1 | ||
| 67780-9160204 |
RX72..GL BLUE,TRIM8# |
1 | ||
| 67780-2202106 |
RX72..GL BROWN,TRIM4# |
1 | ||
| 67780-9160202 |
RX72..GL NEW MAROON,TRIM3# |
1 | ||
| 67780-9160203 |
RX72..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 67780-9160206 |
RX72..GL SABLE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2202112 |
RX72..GL MAROON,TRIM3# |
1 | ||
| 67780-2202114 |
RX72..GL BLUE,TRIM8# |
1 | ||
| 67780-9160204 |
RX72..GL BLUE,TRIM8# |
1 | ||
| 67780-2202106 |
RX72..GL BROWN,TRIM4# |
1 | ||
| 67780-9160202 |
RX72..GL NEW MAROON,TRIM3# |
1 | ||
| 67780-9160203 |
RX72..GL MEDIUM GRAY,TRIM1# |
1 | ||
| 67780-9160206 |
RX72..GL SABLE,TRIM4# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-2203012 |
RX72..GEN,V NEW MAROON,TRIM3# |
1 | ||
| 67785-2203014 |
RX72..GEN,V BLUE,TRIM8# |
1 | ||
| 67785-2203006 |
GX71,MX75,RX7#,YX72 SABLE,TRIM4# |
1 | ||
| 67785-2203013 |
GX71,MX75,RX7#,YX72 MEDIUM GRAY,TRIM1# |
1 | ||
| 67785-2203013 |
RX72..GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-2203012 |
RX72..GEN,V NEW MAROON,TRIM3# |
1 | ||
| 67785-2203014 |
RX72..GEN,V BLUE,TRIM8# |
1 | ||
| 67785-2203006 |
GX71,MX75,RX7#,YX72 SABLE,TRIM4# |
1 | ||
| 67785-2203013 |
GX71,MX75,RX7#,YX72 MEDIUM GRAY,TRIM1# |
1 | ||
| 67785-2203013 |
RX72..GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-2203006 |
GX71,MX75,RX7#,YX72 SABLE,TRIM4# |
1 | ||
| 67785-2203013 |
RX72..GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 67785-2203012 |
RX72..GEN,V NEW MAROON,TRIM3# |
1 | ||
| 67785-2203013 |
GX71,MX75,RX7#,YX72 MEDIUM GRAY,TRIM1# |
1 | ||
| 67785-2203014 |
RX72..GEN,V BLUE,TRIM8# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-2203006 |
GX71,MX75,RX7#,YX72 SABLE,TRIM4# |
1 | ||
| 67785-2203013 |
RX72..GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 67785-2203012 |
RX72..GEN,V NEW MAROON,TRIM3# |
1 | ||
| 67785-2203013 |
GX71,MX75,RX7#,YX72 MEDIUM GRAY,TRIM1# |
1 | ||
| 67785-2203014 |
RX72..GEN,V BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-22050 |
GX71,MX75,RX7#,YX72 LH |
1 | ||
| 68170-22100 |
GX71,MX75,RX7#,YX72 RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-22050 |
GX71,MX75,RX7#,YX72 LH |
1 | ||
| 68170-22100 |
GX71,MX75,RX7#,YX72 RH |
1 | ||
| Common parts | ||||
| 67772-20040 | ||||
| 90168-40025 | ||||
| Linked diagrams | ||||
| 7403 | ||||
