RX72LG-XWMESV (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8810- )

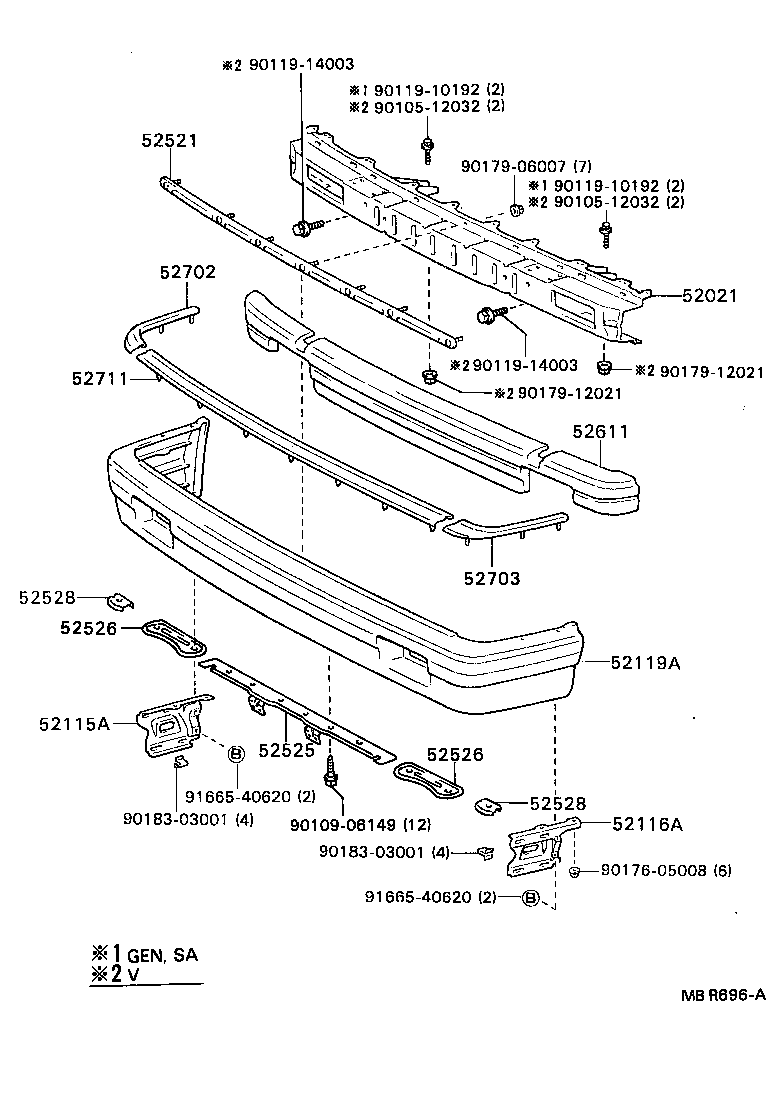

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52521 52525 52526 52526 52528 52528 52611 52702 52703 52711 9010512032 9010512032 9010906149 9011910192 9011910192 9011914003 9011914003 9017605008 9017906007 9017912021 9017912021 9018303001 9018303001 9166540620 9166540620
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-22140

RX72..V

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-22100

RX72..V

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-22070

RX72..V

 1
52119A - COVER, FRONT BUMPER
52119-22906

RX72..GL

FOR PAINTED BUMPER

 1
52119-22924

RX72..GL

FOR PAINTED BUMPER

 1
52119-22300

RX72..V

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-22090

RX72..V

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-22020

RX72..V

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-22011

RX72..V

 2
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-22011

RX72..V

 2
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-22020

RX72..V

 2
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-22020

RX72..V

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-22060

RX72..V

 1
52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH
52702-22020

GX71,MX75,RX7#,YX72

 1
52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH
52703-22020

GX71,MX75,RX7#,YX72

 1
52711 - MOULDING, FRONT BUMPER
52711-22070

GX71,MX75,RX7#,YX72

 1
Common parts
90105-12032
90109-06149
90119-10192
90119-14003
90176-05008
90179-06007
90179-12021
90183-03001
91665-40620
