RX72LG-XWMESV (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

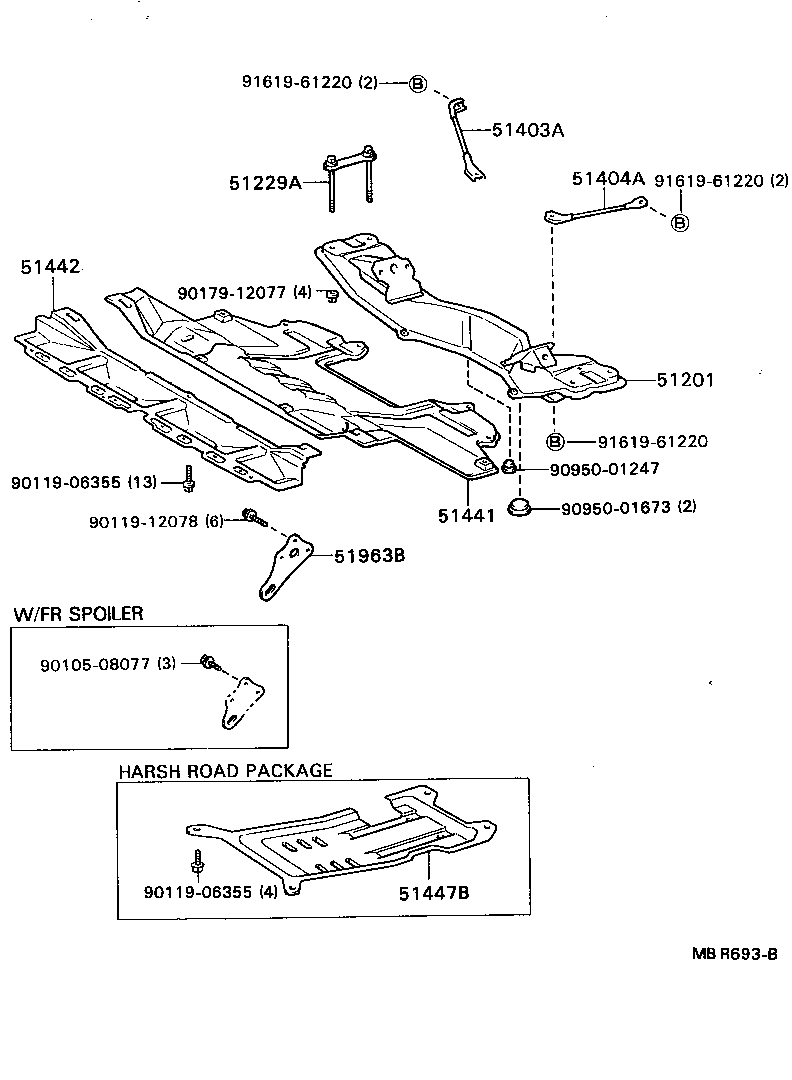

ILLUST NO. 1 OF 2(8810- )

Click highlighted areas on diagram

diagram 51201 51229A 51403A 51404A 51441 51442 51447B 51963B 9010508077 9011906355 9011906355 9011912078 9017912077 9095001247 9095001673 9161961220 9161961220 9161961220
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-22351

RX72..LHD

 1
51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51229-22040

GX71,MX75,RX7#,YX72

 2
51403A - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51403-22010

RX72..LHD

 1
51404A - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51404-22010

RX72..LHD

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-22150

RX7#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-22040

GX71,MX75,RX7#,YX72

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-22050

RX72..V

 2
Common parts
90105-08077
90119-06355
90119-12078
90179-12077
90950-01247
90950-01673
91619-61220

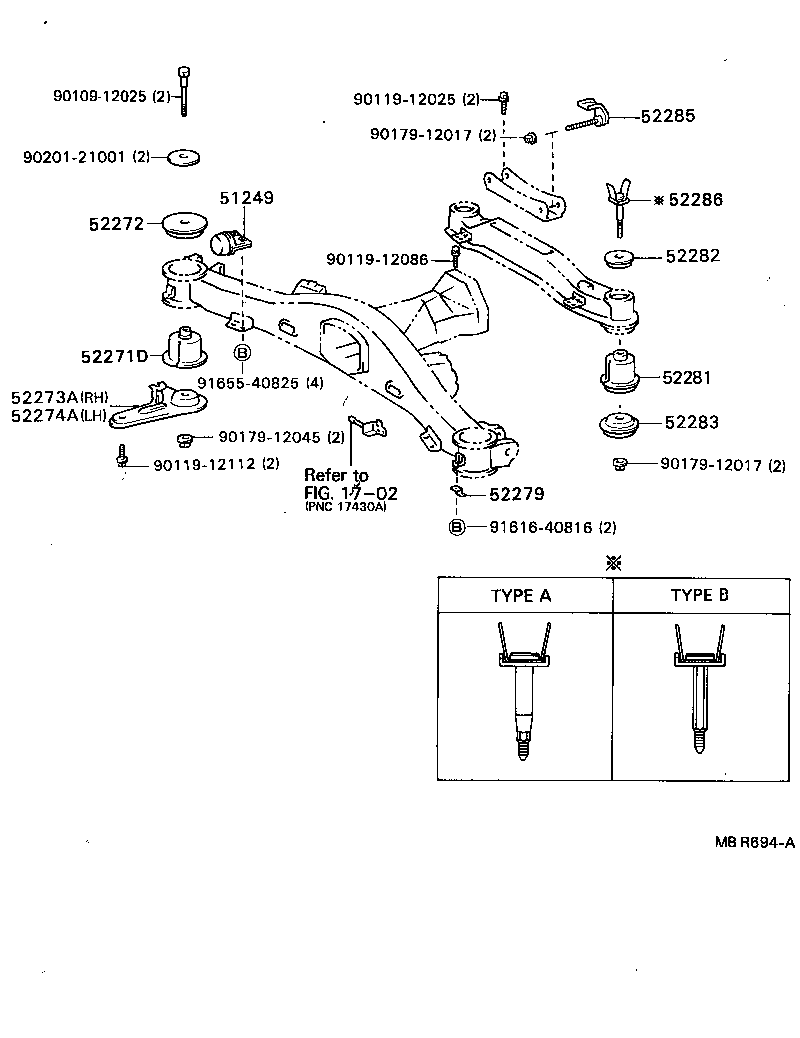

ILLUST NO. 2 OF 2(8812- )

Click highlighted areas on diagram

diagram 1702 51249 52271D 52272 52273A 52274A 52279 52281 52282 52283 52285 52286 9010912025 9011912025 9011912086 9011912112 9017912017 9017912017 9017912045 9020121001 9161640816 9165540825
Part # Description Qty Price
Common parts
90109-12025
90119-12025
90119-12086
90119-12112
90179-12017
90179-12045
90201-21001
91616-40816
91655-40825
Linked diagrams
1702
