RX72LG-XWMESV (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8810-9302)22R

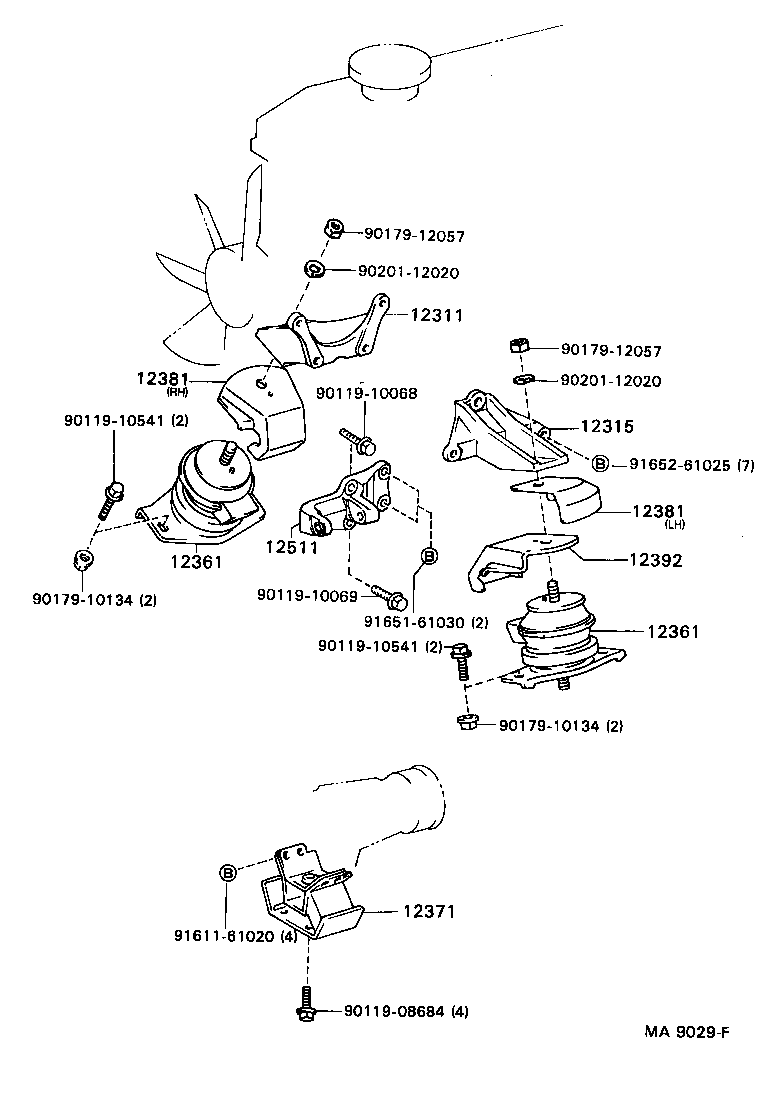

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12392 12511 9011908684 9011910068 9011910069 9011910541 9011910541 9017910134 9017910134 9017912057 9017912057 9020112020 9020112020 9161161020 9165161030 9165261025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-35040

22R..RX7#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-35020

22R..RX7#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35080

22R..RX72..GEN,V

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35080

22R..RX72..GEN,V

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-35070

22R..RX72

 1
12371-34030

22R..RX7#

 1
12381 - STABILIZER, ENGINE MOUNTING
12382-35020

22R..RX72..GEN,V

LH

 1
12381-35030

22R..RX72..GEN,V

RH

 1
12381 - STABILIZER, ENGINE MOUNTING
12382-35020

22R..RX72..GEN,V

LH

 1
12381-35030

22R..RX72..GEN,V

RH

 1
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-35010

22R..RX7#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-35010

22R..RX7#

 1
Common parts
90119-08684
90119-10068
90119-10069
90119-10541
90179-10134
90179-12057
90201-12020
91611-61020
91651-61030
91652-61025
